Product Abstract:

(1). 960W LED Stadium Sports Lights; (2). 182,400Lm(190Lm/W±3%); (3). 15/ 30/ 60/ 90 degree/ TPII/ TPIII; (4). Replacement 2000W HPS, MH; (5). Industry-leading 190LM/W helps you save more energy;


ETL DLC TUV 960W Outdoor Waterproof 182400 Lumens LED Module High Mast Light 190Lm/W Energy savings Industrial Lights

Our 960W high efficiency LED sport lighting is designed to replace 2000W metal halides and HPS sport flood lamps. We have authoritative certifications such as ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.



The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.

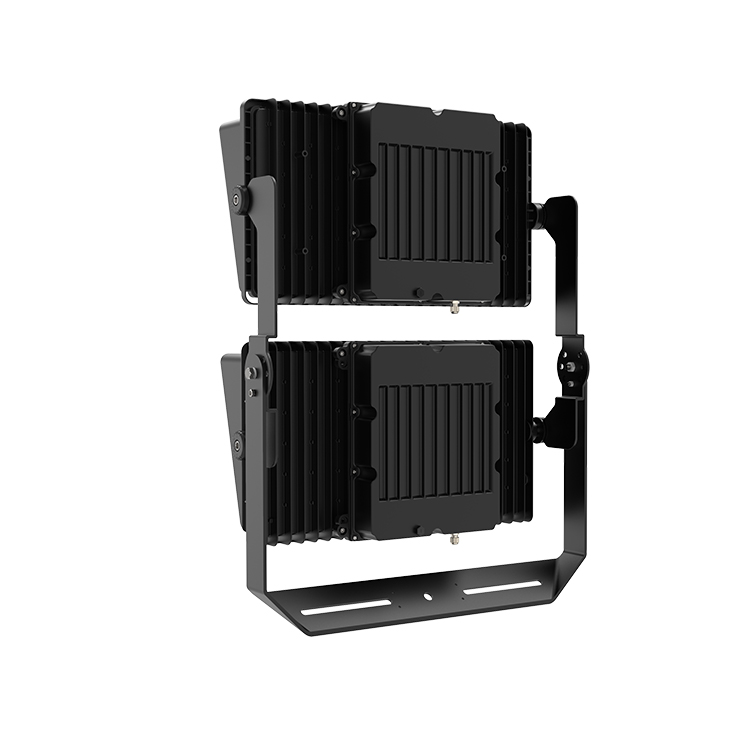

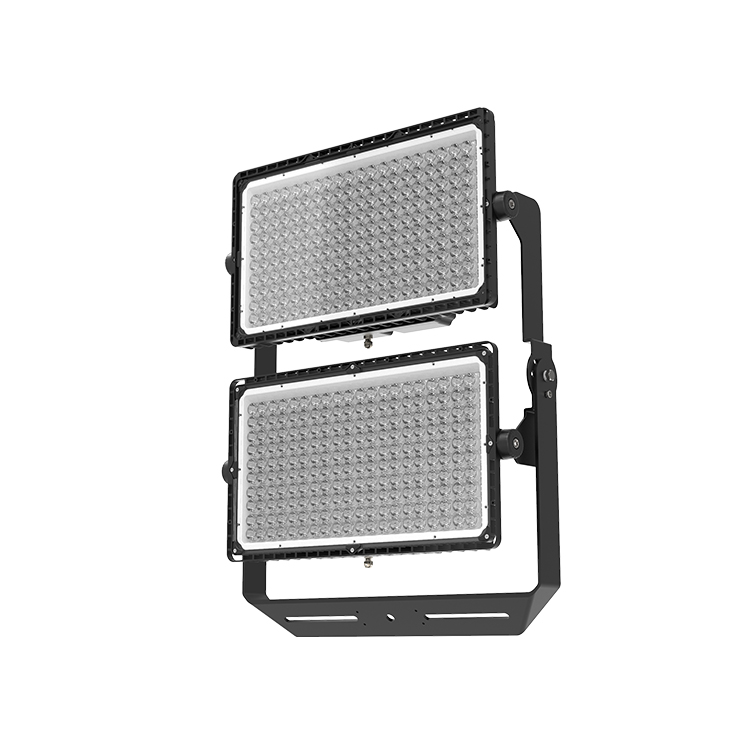

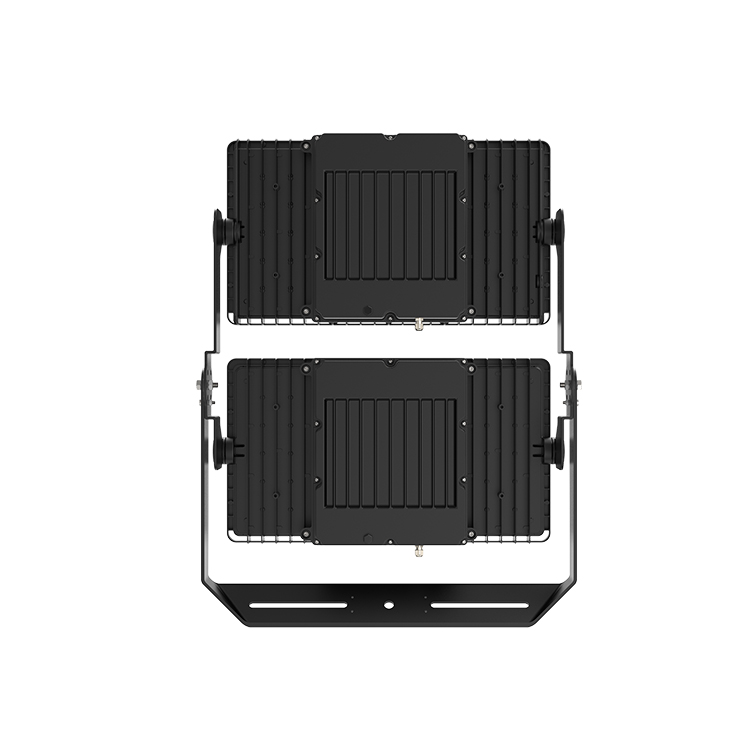

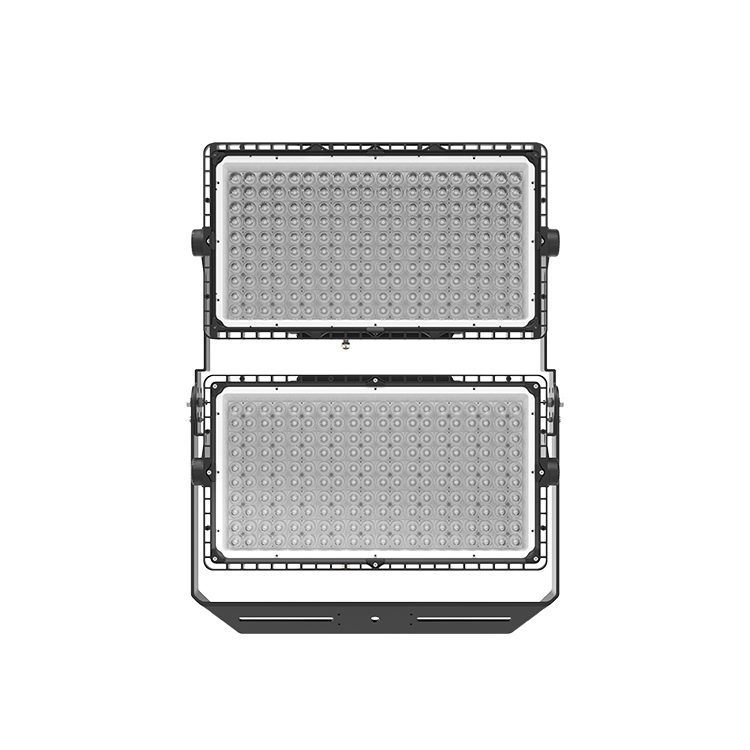

960W 182400lm 190lm/w LED Stadium Sports Lights Ultra Series

Size

960W 182400lm 190lm/w LED Stadium Sports Lights Ultra Series Size

Optional Colors

The housing is available in black and silver gray.

led sport light optional colors

Specifications

Model No.

HM‐960W‐Ultra

HM‐960W‐Ultra
Power Consumption 960W 960W
Light Source Lumileds 3030 Lumileds 5050
Luminous Flux(±5%) 153,600Lm[160(±3%) Lm/W] 182,400[190(±3%) LM/W]
Driver Type Meanwell 4*ELG-240-48A Meanwell 4*ELG-240-48A
Luminaire Net Weight 32kg 32kg
Correlated Color Temperature 3000K, 4000K, 5000K, 5700K, 6500K
Color Rendering Index Ra70 (Ra80, Ra90 optional)
Input Voltage 100-277 VAC
Power Factor >0.95
IP&IK Rating IP66 / IK08
Life Time L70/B10 >50,000hours
Warranty 5 Years / 7 years extended warranty available
Dimmable Dimmable and Non-dimmable
Beam Angle 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
Certification ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test.

Why Chooes 960W 182400lm 190lm/w LED Stadium Sports Lights Ultra Series?

1.High Lumens Efficiency

Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 190lm/W.

High Lumens Efficiency

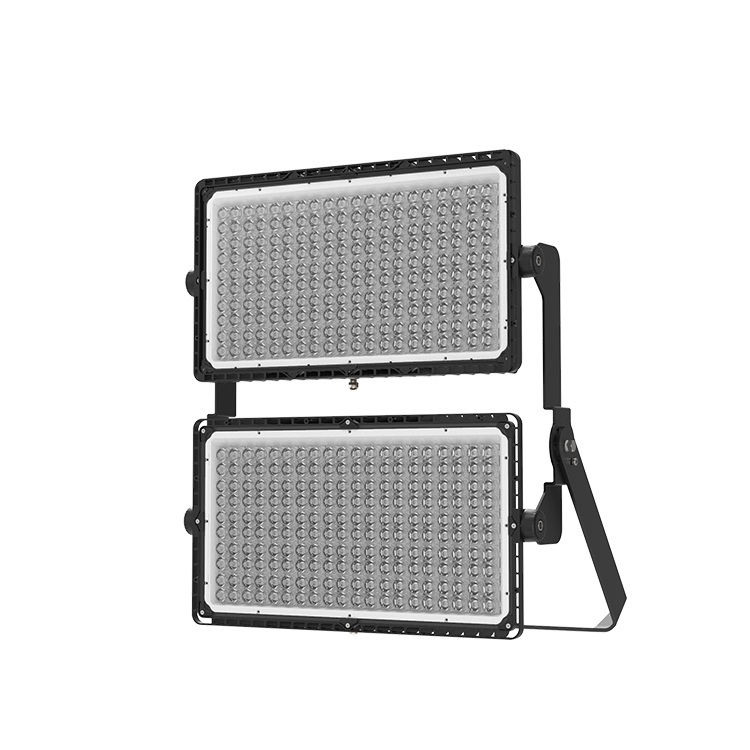

2.Bracket Rotatable

The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.





Bracket Rotatable

Bracket Rotatable



3.Multi-module splicing

Single module 480w design, simpler structure and easier assembly.



Multi-module splicing



4.Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.



Honeycomb heat dissipation design

The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.



Honeycomb heat dissipation design



5.Waterproof IP66 & IK08

Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.



Waterproof IP66 & IK08



Installation

led sport light installation



Beam Angle

Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

ultra led sport light beam angle

LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.

LED lighting solution customization

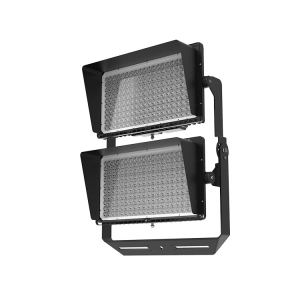

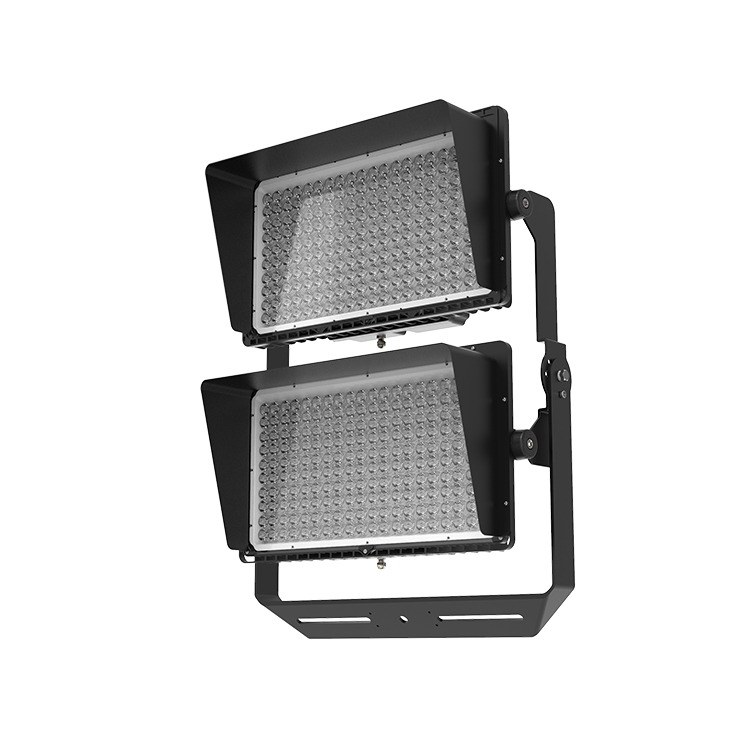

Anti-glare Cover

Optional anti-glare cover

Optional anti-glare cover

Package details

960W: 96*75*23cm

1pc/ctn, GW: 34kg



What can we do for you?

We can provide you with: 1.High quality LED Light; 2.Dlalux Lighting Design; 3.5 years Warranty;

Please feel free to contact us if there is any problem during this period;





Since 2009, we have started the lighting business and have served thousands of customers. We are a professional manufacturer and supplier of LED Stadium Area Flood lights. Our products are sold all over the world and are well received by customers.



Compared with traditional plant lights, Ultra Series LED stadium lights have higher efficiency, higher uniformity and lighting quality, and longer service life. Replace your old lamps, you can get more than 75% off monthly lighting costs! contact us whenever necessary!
