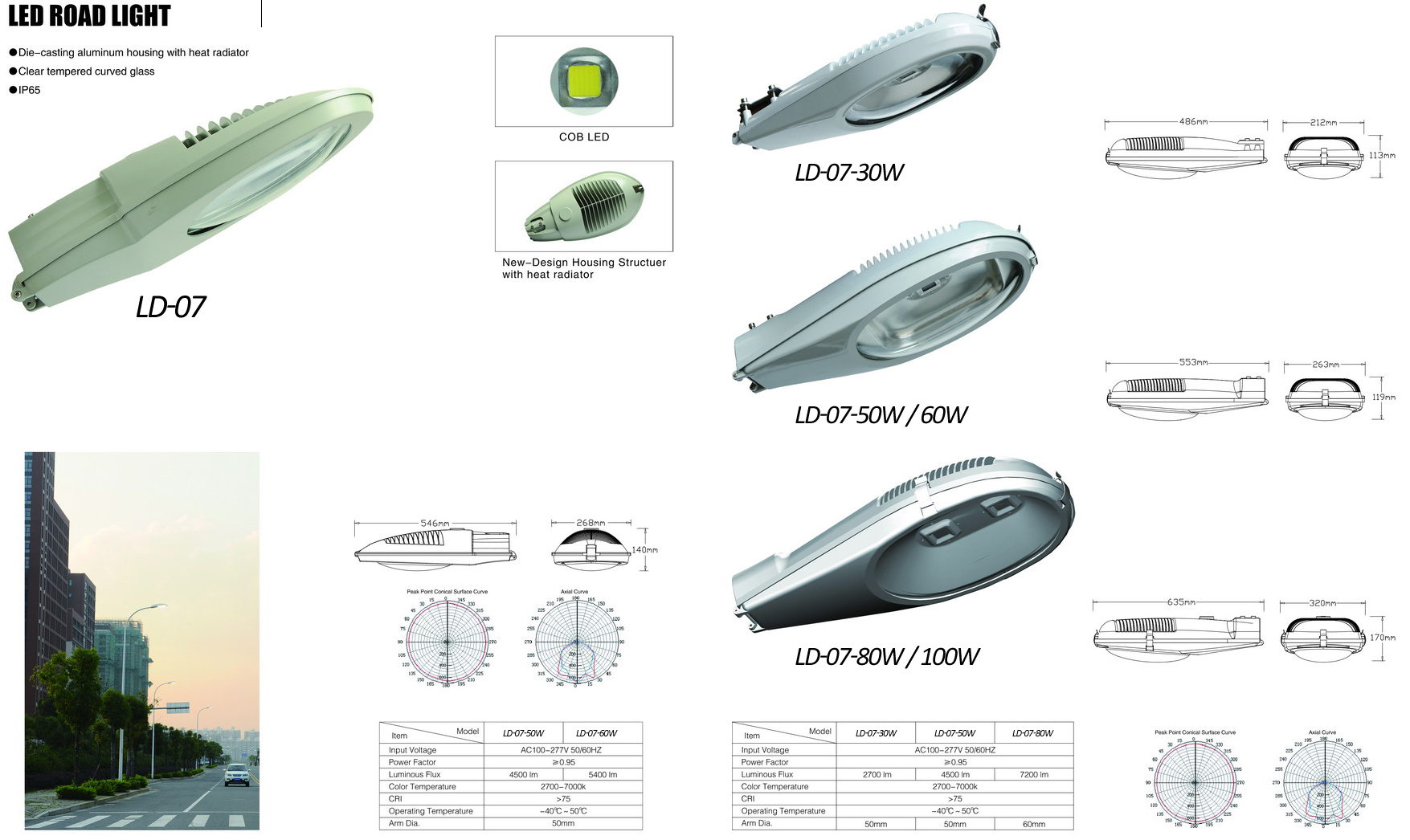

Huazhibei LD-07 series LED street light, using high-quality aluminum die casting shell, simple structure,Streamline design, surface spray treatment, high temperature resistance, good weather resistance; optimal integration.The function of heat dissipation, beautiful appearance; using a unique two optical design of the lens, the whole Light intensity, uniform brightness; high temperature resistant silicone rubber seal, seal better equipped with high;A low loss chip imported light source, high thermal conductivity, low luminous decay, pure light color, no ghosting;Isolation of high precision IC control drive, constant current precision, high conversion rate, longer service life.

Applications: highway, city streets, bridges, tunnels, underground tunnels, underground parking lot, railway square, etc.!

Characteristic Parameter:

Model No.

(W)

Power

(V)

Working Voltage

(λ)

Power Factor

(lm)

Luminous Flux

(Ra)

CRI

(K)

CCT

(IP)

IP Rate

(℃)

ambient temperature

Lamp Structure

LD-07-30W

30

AC85-265

﹥0.5

2400

﹥70

2700-6800

65

-20℃~+50℃

10 Series 3 Parallel

LD-07-50W

50

AC85-265

﹥0.9

4000

﹥70

2700-6800

65

-20℃~+50℃

10 Series 5 Parallel

LD-07-60W

60

AC85-265

﹥0.9

4800

﹥70

2700-6800

65

-20℃~+50℃

10 Series 3 Parallel * 2

LD-07-80W

80

AC85-265

﹥0.9

6400

﹥70

2700-6800

65

-20℃~+50℃

10 Series 4 Parallel * 2

LD-07-100W

100

AC85-265

﹥0.9

8000

﹥70

2700-6800

65

-20℃~+50℃

10 Series 5 Parallel * 2

Note: the scope of power error is about 10%; the range of flux error is -10%, some warm white luminous flux will decrease;
