Product Abstract:

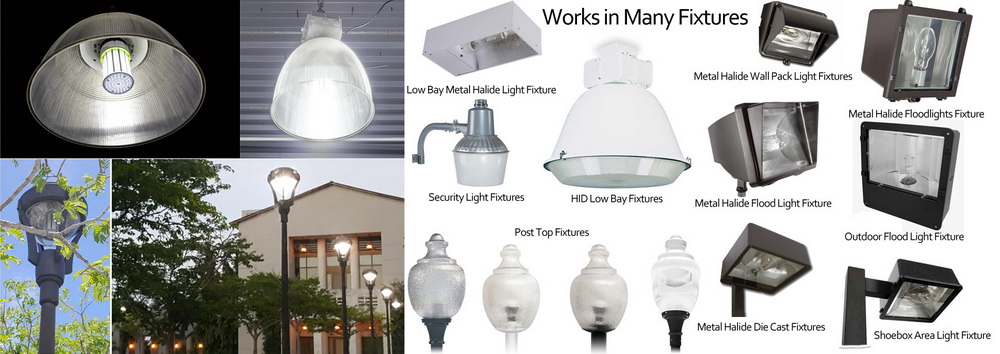

Specializing in manufacturing high quality good price 60-watt led corn cob bulbs,commercial and HID retrofits,led retrofit bulbs,led corn light. Ideal for Warehouse and manufacturing facilities, outdoor post tops bollards, commercial and residential recessed cans, institutional and educational facilities, and other specialty projects.


LED Corn Cob BulbsLED Corn Cob Bulbs

Overview:

Available in multiple wattages, HZB's LED Corn Cob Bulbs are a convenient and energy-efficient solution for replacing traditional high-pressure sodium and metal halide sources in enclosed lighting fixtures. Suitable for use in open and enclosed luminaires and Suitable for dry and damp locations.

The CB01 series are designed with a smaller size and shape for easy installation in bollards and globes, while the larger 20-watt, 30-watt, and 50-watt to 240-watt corn bulbs are ideal for acorn fixtures requiring a higher lumen output. Color temperatures for the line range from 3000K to a daylight 6700K.

Features/Benefits:
1. Installation variability
2. 360-degree optical design
3. 50,000 hour life is 8 to 17 years operating 8 hours a day, based on L70 standards
4. Effective heat transfer
5. Uniform color consistency
6. Environmentally friendly
7. Universal voltage

Advantage:
1. Specially designed for indoor and outdoor lighting.
2. Retrofit the conventional lighting fixtures.
3. It's major to replace the CFL/MH/HID/HPS.
4. Universal voltage: 120V-277V, Ballast bypass.
5. >125lm/w, 150lm/w is available.
6. Beam Degree: 360°.
7. Suitable for use in open and enclosed luminaires.
8. Suitable for dry and damp locations.
9. 3-5 year limited warranty.
10. Application: indoor lighting, conference / meeting rooms / commercial complexes, residential, institution buildings, schools, colleges, universities. Places where need energy saving and high color rendering index lighitng.



Model HZB-CL-20W8S HZB-CL-30W8S HZB-CL-40W8S HZB-CL-50W8S HZB-CL-60W8S HZB-CL-80W10S
Power 20W 30W 40W

50W

60W 80W
Lumens (125lm/w & 150lm/w) 2,600lm / 3,000lm 3,800lm / 4,500lm 3,800lm / 4,500lm 6,200lm / 7,500lm 7,500lm / 9,000lm 10,000lm / 12,000lm
Size Φ96*155mm
Φ3.7*6.0inch
Φ96*155mm
Φ3.7*6.0inch
Φ96*210mm
Φ3.7*8.0inch
Φ96*210mm
Φ3.7*8.0inch
Φ96*210mm
Φ3.7*8.0inch
Φ128*260mm
Φ5.0*10.2inch
Color Temp Warm White: 2,700 - 3,500K
Natural White: 4,000 - 4,500K
Cool White: 5,500 - 6,700K
Operation Temp -40°- 50°C
Life Span 50,000 hours for LED
Input Voltage 100-277Vac or 200-480Vac
Power Factor PF>0.95
Power Efficiency >88%
Beam Angle 360°
CRI >83
Lamp Base E40/E39 E27/E26, Ex39
Warranty 3-5 years factory warranty





Model HZB-CL-100W10S HZB-CL-120W10S HZB-CL-150W10S HZB-CL-180W10S HZB-CL-200W10S HZB-CL-240W10S
Power 100W 120W 150W

180W

200W 240W
Lumens (125lm/w & 150lm/w) 13,000lm / 15,000lm 15,000lm / 18,000lm 20,000lm / 22,500lm 23,000lm / 27,000lm 26,000lm / 30,000lm 30,000lm / 36,000lm
Size Φ128*283mm
Φ5.0*11.1inch
Φ128*315mm
Φ5.0*12.4inch
Φ128*325mm
Φ5.0*12.8inch
Φ128*340mm
Φ5.0*13.4inch
Φ128*340mm
Φ5.0*13.4inch
Φ128*400mm
Φ5.0*15.8inch
Color Temp Warm White: 2,700 - 3,500K
Natural White: 4,000 - 4,500K
Cool White: 5,500 - 6,700K
Operation Temp -40°- 50°C
Life Span 50,000 hours for LED
Input Voltage 100-277Vac or 200-480Vac
Power Factor PF>0.95
Power Efficiency >88%
Beam Angle 360°
CRI >83
Lamp Base E40/E39 E27/E26, Ex39
Warranty 3-5 years factory warranty
