  • Product Name:

    TYN-LD02-25W
  • Model No.:

    TYN-LD02-25W
  • Warranty (Year):

    5

Product Abstract:

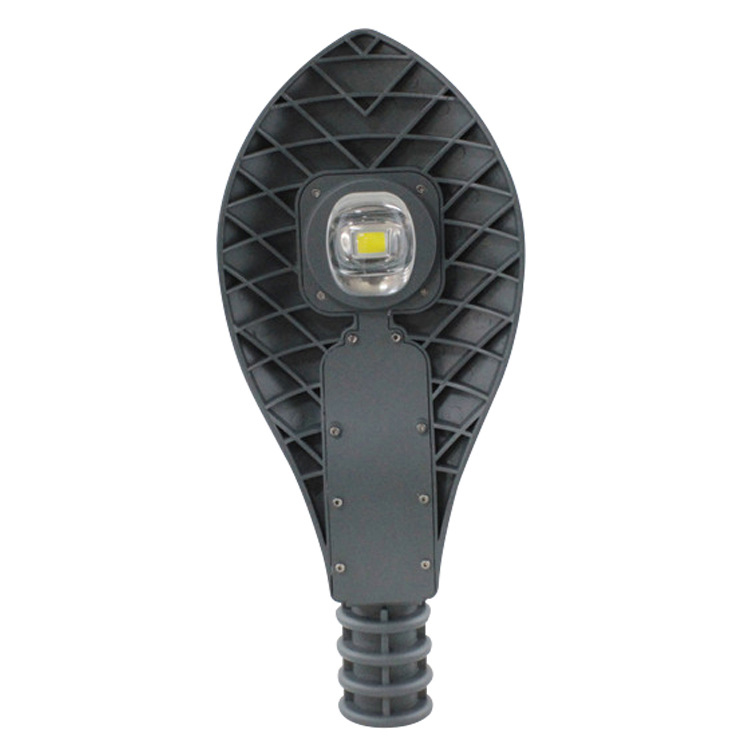

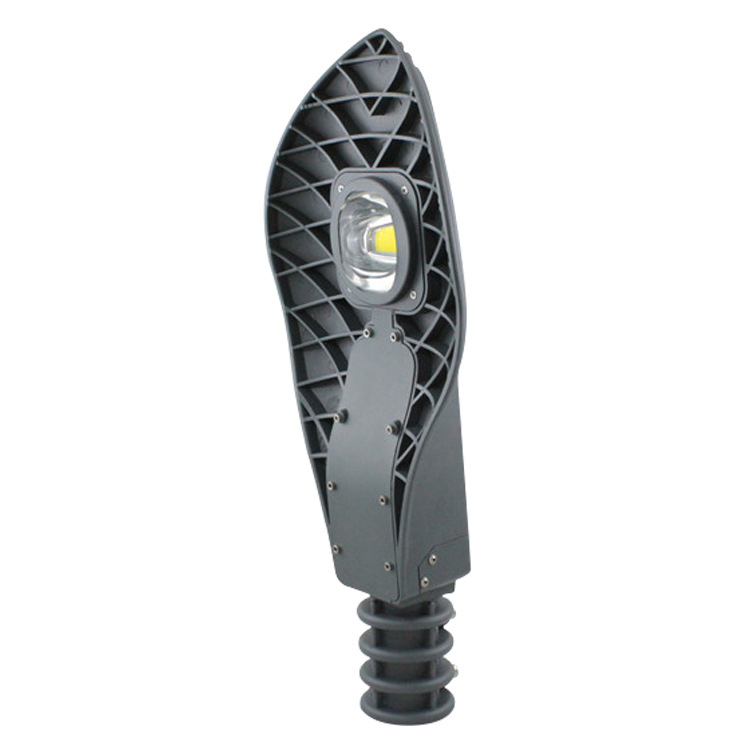

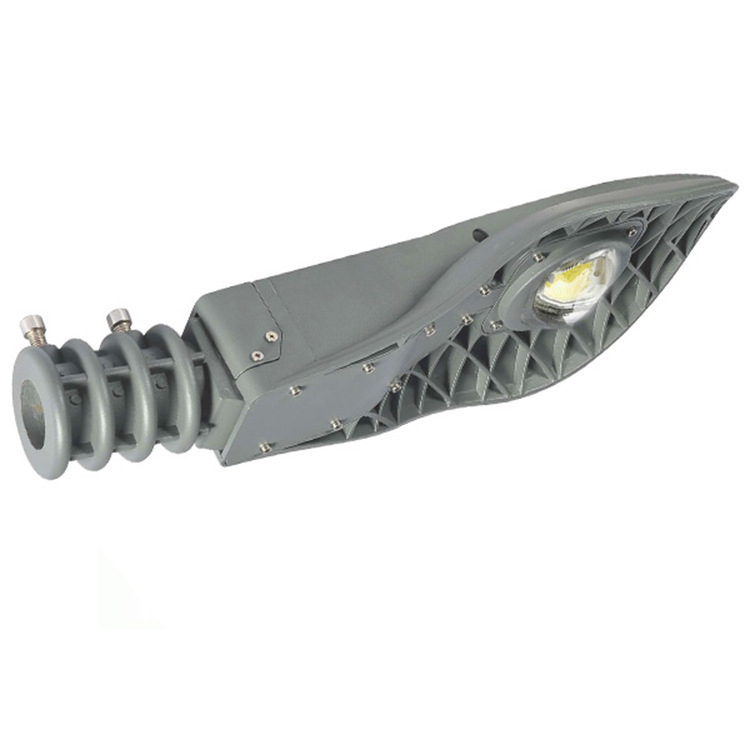

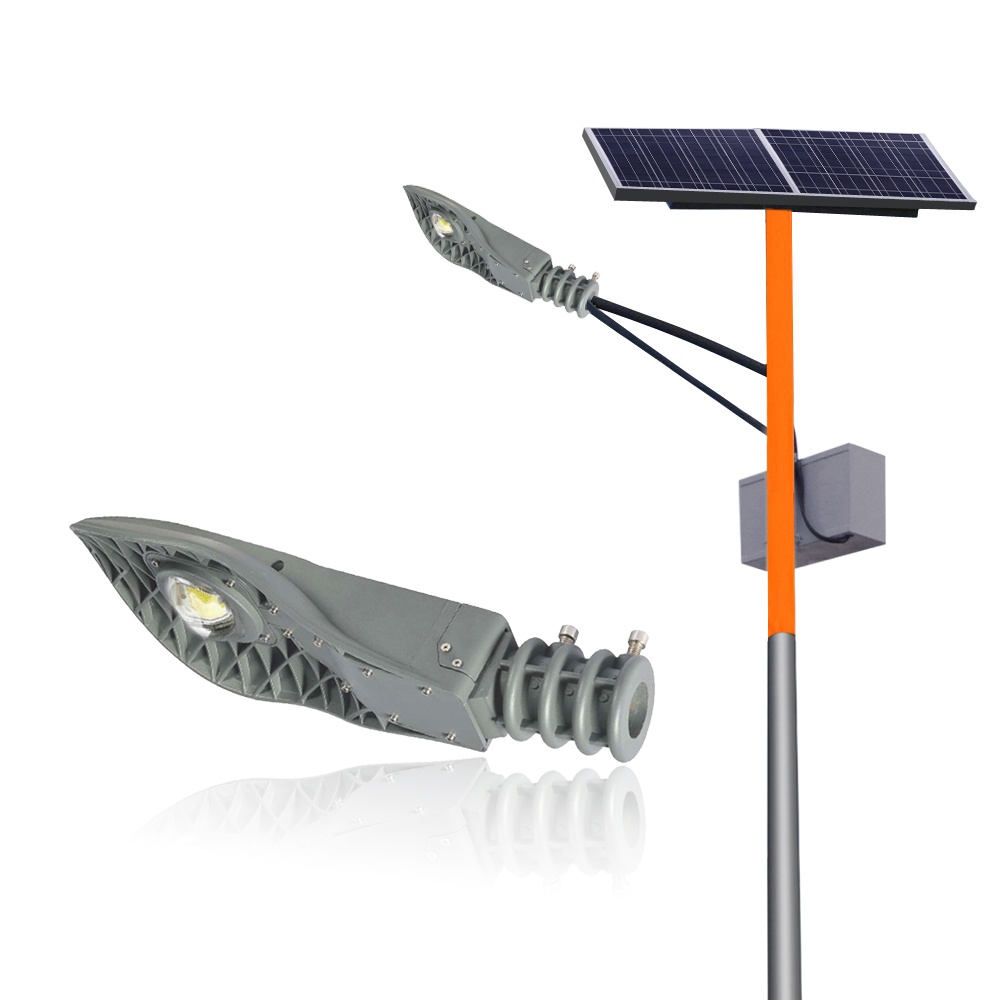

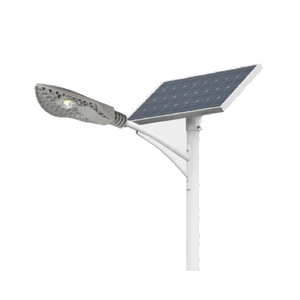

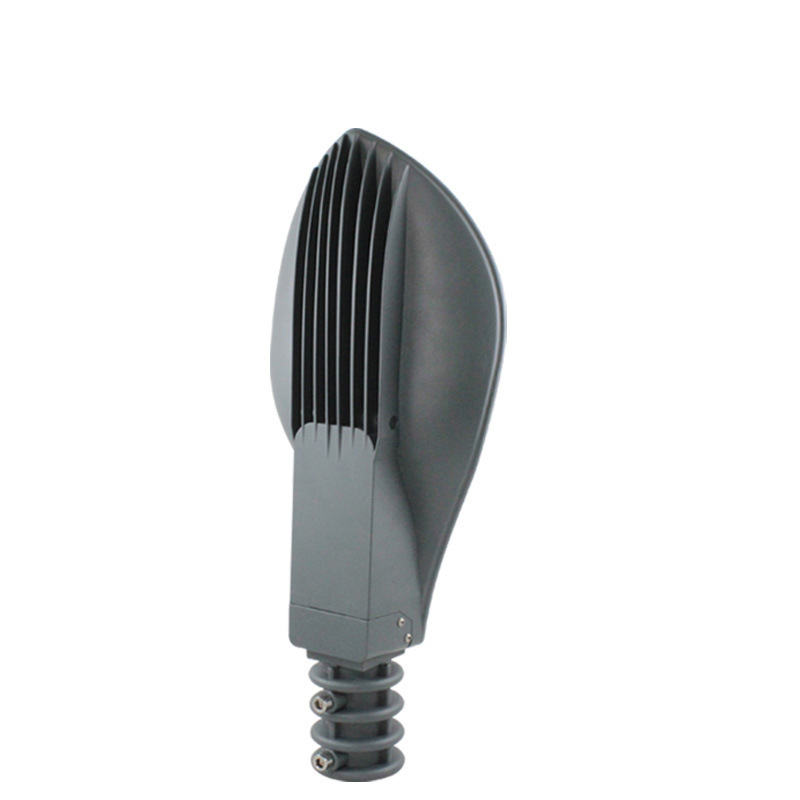

25W All-in-One Solar Street Light are designed for highways, freeways, neighborhood streets, rural roads, etc. and provide security, sustainability and an overall green image. We are the Solar Street Lights Manufacturer of Low-voltage electrical appliances. Commercial grade LED solar powered street lighting systems manufactured in China.


Solar Street LightsSolar Street Lights

Model No. TYN-LD02-10W TYN-LD02-15W TYN-LD02-20W TYN-LD02-25W TYN-LD02-30W
Light Power 10W 15W 20W 25W 30W
For Height 3M 3.5M 4M 5M 6M
System Voltage 12V 12V 12V 12V 12V
Solar Panels 45WP 65WP 85WP 2*55WP 2*65WP
Battery 55AH 80AH 100AH 120AH 2*80AH
Working Time 8-10Hrs 8-10Hrs 8-10Hrs 8-10Hrs 8-10Hrs
Rainy Days 3-4 Days 3-4 Days 3-4 Days 3-4 Days 3-4 Days
Sun Hours 3-4Hrs 3-4Hrs 3-4Hrs 3-4Hrs 3-4Hrs
Luminous Eff 100lm/W 100lm/W 100lm/W 100lm/W 100lm/W
Luminous Flux 1000lm 1500lm 2000lm 2500lm 3000lm
CCT 2700K-6800K 2700K-6800K 2700K-6800K 2700K-6800K 2700K-6800K
CRI >75Ra >75Ra >75Ra >75Ra >75Ra
Life Span >50,000 Hrs >50,000 Hrs >50,000 Hrs >50,000 Hrs >50,000 Hrs
Working Temp -40°C to 50°C -40°C to 50°C -40°C to 50°C -40°C to 50°C -40°C to 50°C

How solar Street Light work?
(Day time) Storage battery charging from solar battery components: Under the control of the intelligent controller of solar energy street lamp, solar battery absorbs solar energy light and converts into electrical energy through solar panels irradiated by sunshine. (Night time) Storage battery supply electricity to LED light

CUSTOMZIED SOLAR POWER GENERATION SYSTEM
You don't need to worry about installation.
Experienced and professional installation and training service will solve your problems.

Solar Street Light Installation Guide
Engineering design according to your demand (OEM service)
Provide professional installation guide

LED Material Description:
1.Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
2. Application with Polyester Substance in its Surface.
3. Implement of Reflect: Made of High Purity Aluminum.
4. Cover: High Strength and High Transparent Toughened Glass
5. Fastener Bolt and Screws: Stainless Steel
6. Arm Diameter: 60mm
7. IP67

Solar Panel Description:
1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline Or Mono cells and Adding Aluminum Frame, Tempered Glass.
2. 5 years'warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.

Solar Gel Battery With > 8Years Life Span:
Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage life. no need add acid or water to maintenance it,No acid mist, Environmental Friendly.

Controller Description:
1. Protection grade: IP68, effective dust-proof and water-proof
2. Type:PWM For good Sun Condition Area like Africa & MPPT wtih high efficiency for countries like Canada with bad sun condition in winter.
3. Single and double street light output control flexible
4. Dimmable &Human Sensor are avaliable.
5. LED status indicate

Advantages:
1. Super brightness, high power, high efficiency
2. Long lifespan, energy saving, environmental-friendly
3. Advanced technology, exquisite workmanship
4. Easy installation, free maintenance
