Product Abstract:

30W Solar Street Light,Solar Panel:30W, Lithium battery: 11.1V 1600MAH, LED light source: 30W Import LED / 3000 lumens, Installation height: 3~5 M, Package size:55*25*92cm, Weight:3.85kg, Work mode: Light and time control (5 hours of full power, half power until dawn, 4 rainy days)


Solar Street Lights TYN-T10 Series

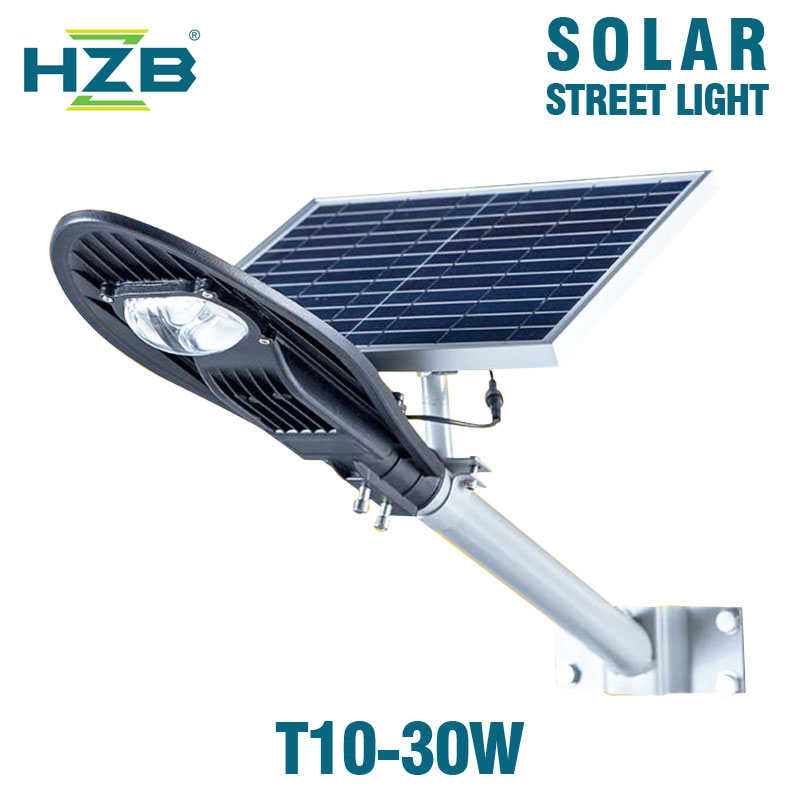

Model: TYN-T10-30W
30W Solar Street Light,Solar Panel:30W, Lithium battery: 11.1V 1600MAH, LED light source: 30W Import LED / 3000 lumens, Installation height: 3~5 M, Package size:55*25*92cm, Weight:3.85kg, Work mode: Light and time control (5 hours of full power, half power until dawn, 4 rainy days)

It is widely used for the lighting of city road and main traffic road. Products are no need of wire or city electric, easily for installation, energy saving and environmental protection, no charge of electric fee, longer span life.

PRODUCT FEATURES
1. Die casting shell, beautiful appearance.
2. No ultravioet / infrared radiation does not contain mercury, lead and other heavy metals, green environmental protection.
3. Spot shape for the bat wing, the use of optical glass for two times with light, light transmisson rate of up to95%, the ability to resist ultraviolet radiation, outdoor use stability.
4. Protection level: IP65
5. Warranty period: 2 years
6. Working environment: -30~+50°C
Solar panel: 15W 30W 40W 60W
Battery: Lithium battery 5Ah 11Ah 16Ah 20Ah
Light LED : 10W 20W 30W 50W highpower intergrated LED
Light angel: 120 degree
IP rating: IP65 waterproof
Light color temperature: 6000-6500K(White)
Recharger time : 6-8hours
Working time: 8-12hours

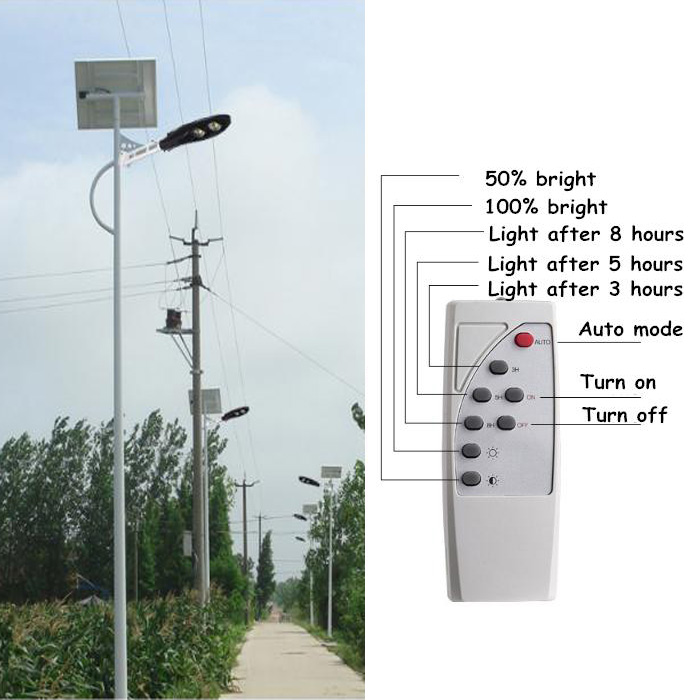

Smart Funciton: Light time control, closed when daytime charging, automatic start work in dark.



Model HZB-TYN-T10-10W HZB-TYN-T10-20W HZB-TYN-T10-30W HZB-TYN-T10-50W HZB-TYN-T10-60W
Sower Panel 6V/15W 18V/30W 18V/50W

18V/70W

18V/90W
Battery Capacity 3.7V/5Ah 25AH/12V 32AH/12V 55AH/12V 70AH/12V
Size(mm)(LxWxH) 350*150*60 350*150*60 495*245*75 495*245*75 720*275*75
Solar Panel Size
(mm)(L*W*H)
270*225*20 540*450*20 540*670*25 670*675*30 1000*510*30
Light Source COB/Bridgelux 45*45/1*10W COB/Bridgelux 45*45/1*20W COB/Bridgelux 45*45/1*30W COB/Bridgelux 45*45/1*50W COB/Bridgelux 45*45/2*30W
Color Temp 6000 - 6500K (white)
Housing Material Aluminium Alloy
Operation Temp -40°- 60°C
Life Span 50,000 hours for LED
Beam Angle 120°
Efficiency ≥100lm/w
Install Height 3-6m
IP Rate IP65-IP66
Warranty 2 Years

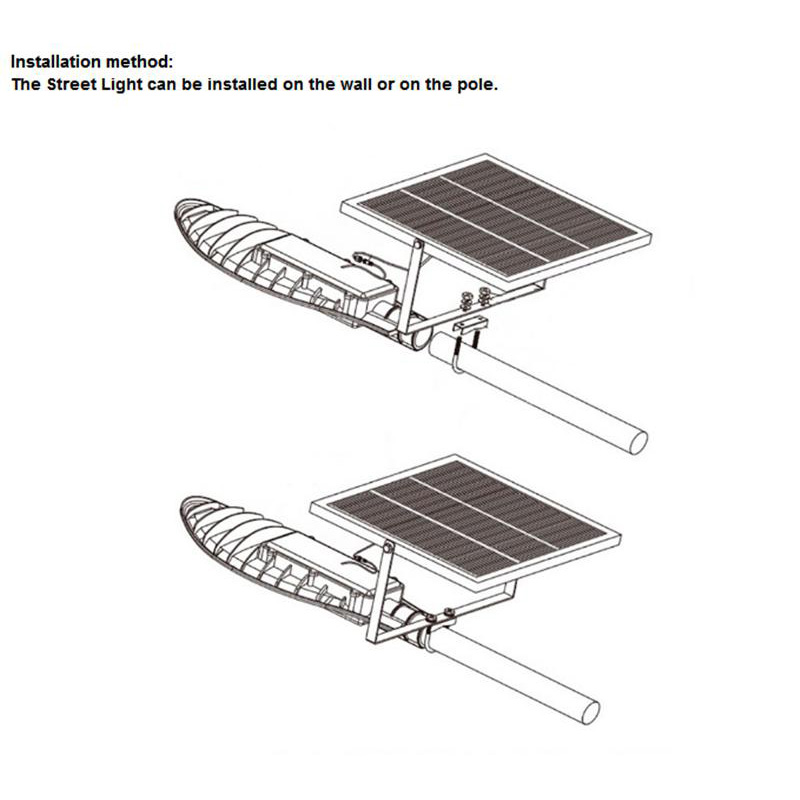

Solar Street LightSolar Street LightSolar Street LightSolar Street LightSolar Street Light installation methodSolar Street LightSolar Street Light Application
