Product Abstract:

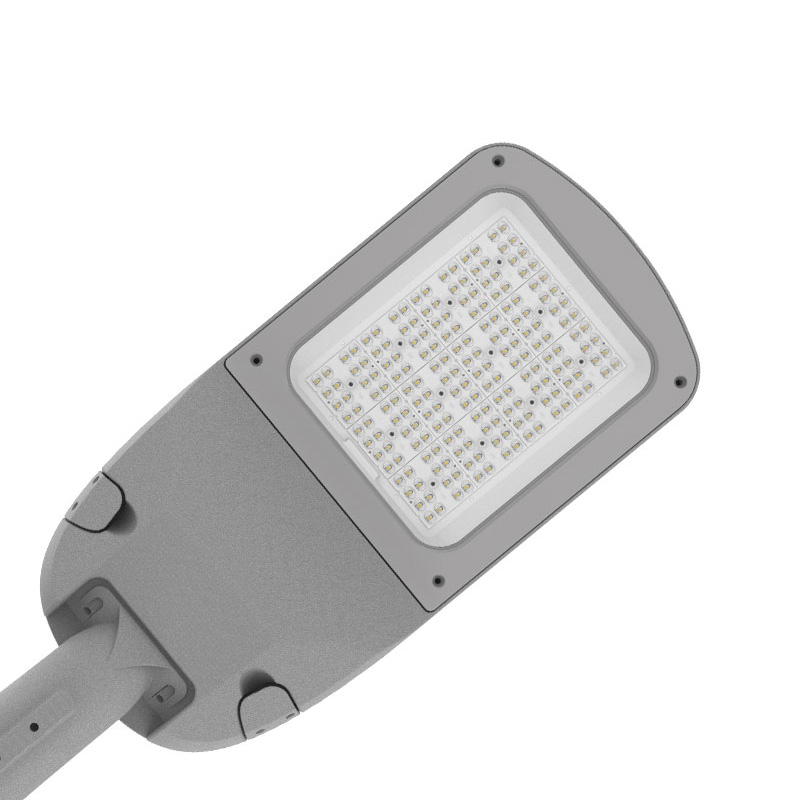

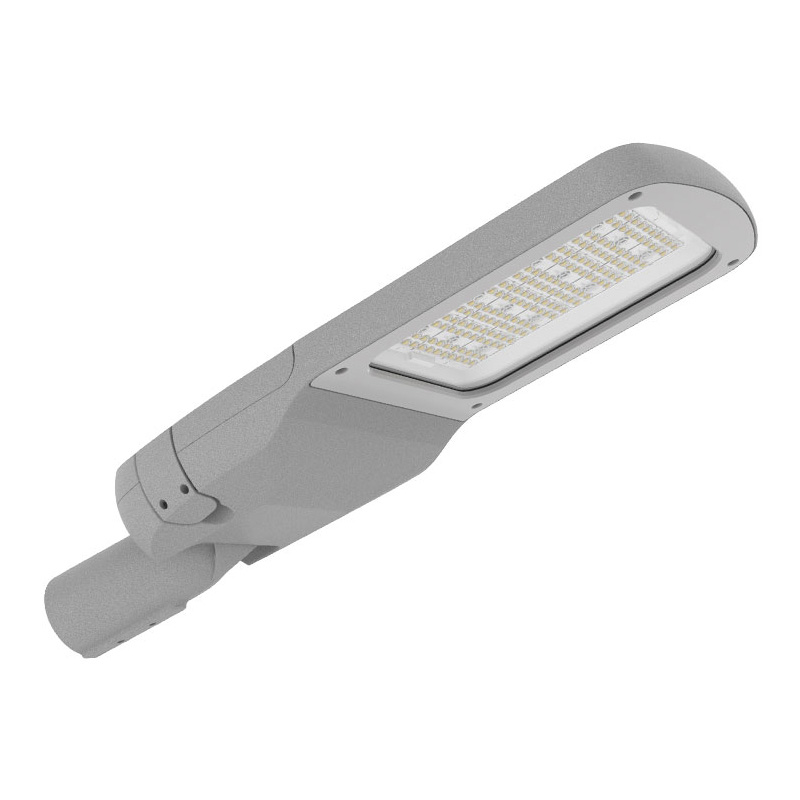

LED Street Lights 120Watt Pluto Series is reliable solution that delivers substantial energy savings compared with conventional fixtures. 15600Lm,130LM/W,ETL DLCPending, ENEC TUV CE CB SAA RoHS,IK08 IP66 test Flame Retardan Salt Spray test, Suitable for street lighting, area lighting, highway lighting, parking lot lighting applications. Depending on the area, you can choose 120w led street light to replace 300W HPS,MH,HQI.

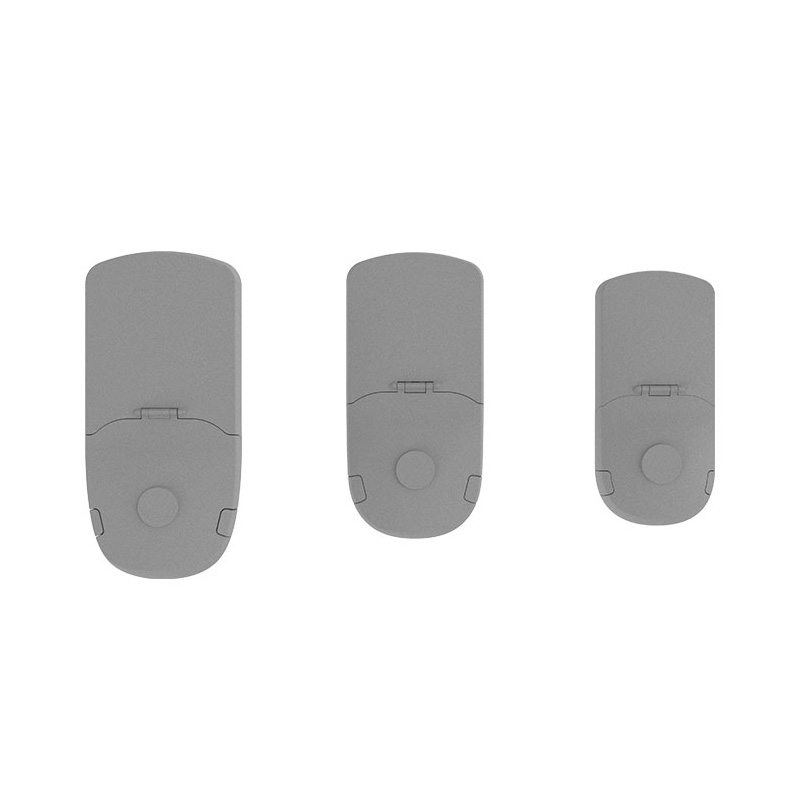

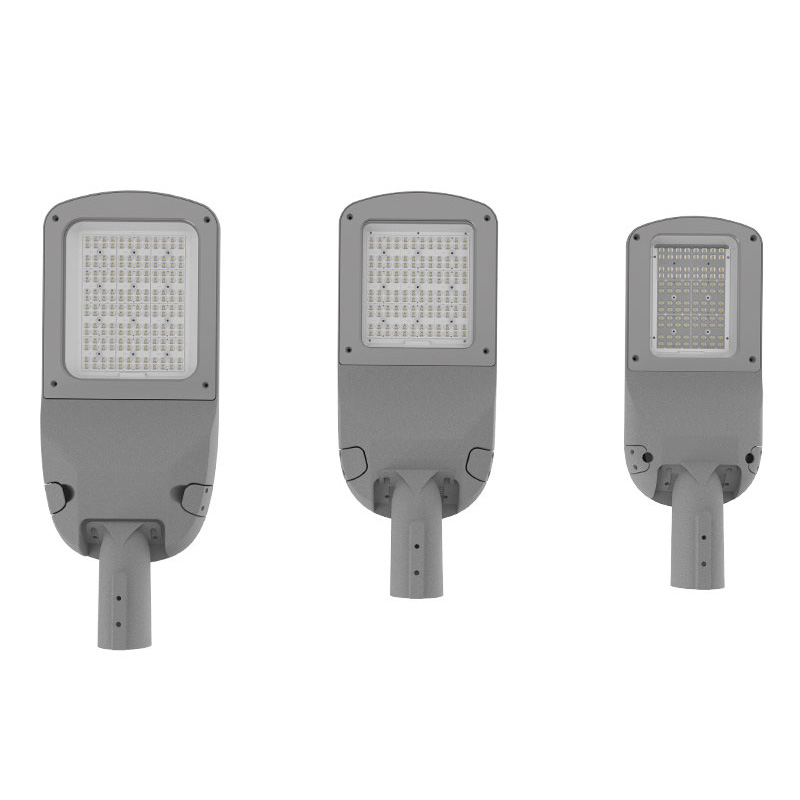

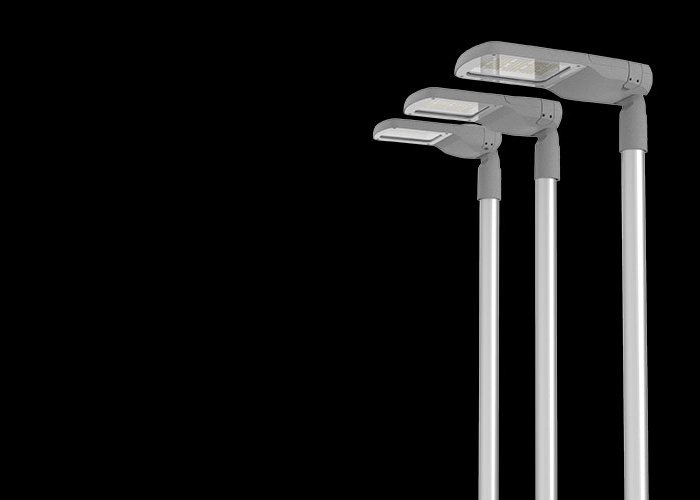

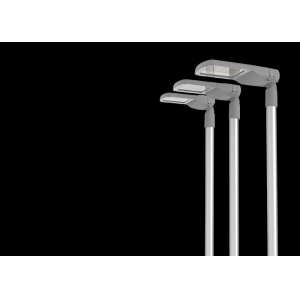

LED Street Lights 40-150Watt Pluto Series

LED Street Lights 40-150Watt Pluto Series

LED Street Lights 120Watt Pluto Series is reliable solution that delivers substantial energy savings compared with conventional fixtures. 15600Lm,130LM/W,ETL DLCPending, ENEC TUV CE CB SAA RoHS,IK08 IP66 test Flame Retardan Salt Spray test, Suitable for street lighting, area lighting, highway lighting, parking lot lighting applications. Depending on the area, you can choose 120w led street light to replace 300W HPS,MH,HQI.



Maximum Energy Savings

A minimal total cost of ownership was the driving force behind the development of the Pluto range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption. It offers a very competitive alternative to luminaires equipped with traditional light sources such as highpressure sodium lights.



Pluto Series LED street light is a perfect solution for secondary roads, parks gardens and pathways. It is aesthetically appealing due to its compact design and oers wide range of outdoor solutions with reduced cost of ownership. It can very well replace most of the fluorescent based luminaires (CFL/FTL) and also ensures uniform lighting distribution.



Feature:
1. Very suitable for park roads, alleys, and other small and medium-sized areas
2. Complete illumination across the entire roadway
3. No external reflectors required
4. Safe for industrial applications
5. High-performance design
6. Dramatic energy savings

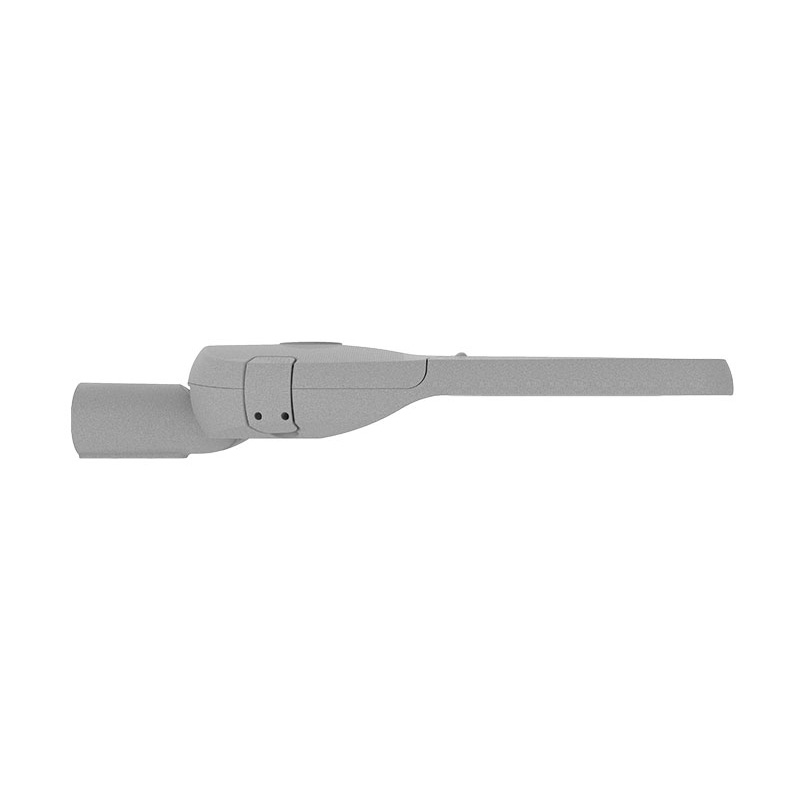

Mounting optional

LED Street Lights Pluto Series LED Street/Area Light fixture includes simple installation with convenient abjustability.

The LED Street Lights fixture can be mounted horizontally or vertically with our universal slip fit system.

simply detach and rotate the slip fitter 180° to achieve the vertical orientation.

Both orientation options include the ability to rotate 15degree or more.

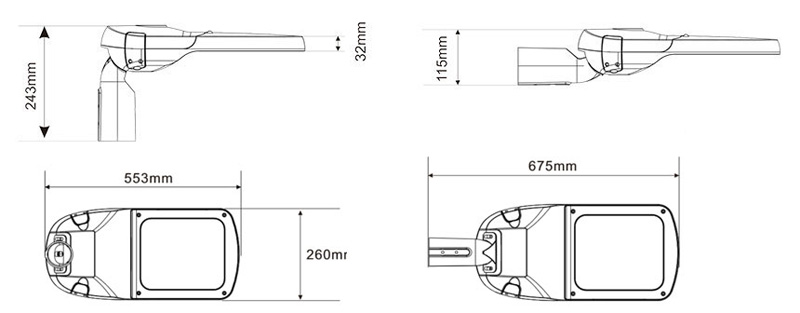

Dimension



Specification

Model HZB-LD-P-120W IP & IK Rating IP66 & IK08
Wattage 120 Watt Surge protection 6KV
Lumen 15600lm Beam Angle TypeII, TypeIII
Efficiency 130Lm/W Lifespan >50000 hours
Light Source Lumileds 3030 Dimension 21.77"*10.24"*9.57
Input Volt 100-277VAC Thermal Management Natural air cooling
Driver Meanwell XLG-150-H-A Replacement 300W HPS, MH, HQI
CCT 3000K, 4000K, 5000K, 5700K Certificates DLC, ETL, ENEC, TUV, CE, CB, SAA, RoHS



Showcase

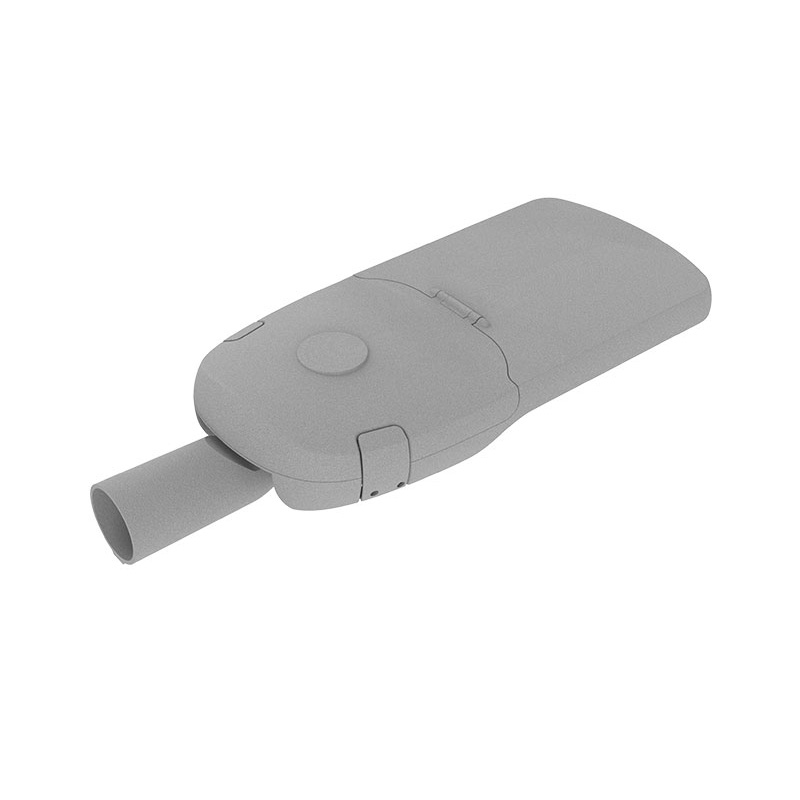

Self-cleaning

1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.

2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.





Waterproof and lightning proof

Highly resistant housing, IP66 waterproof and lightning protection allow PlutoLED street lights to operate in harsh environments.





Photocell

Optional light battery sensor, PlutoLED street light will automatically turn on at dusk, automatically turn off at dawn, more energy efficient and convenient.

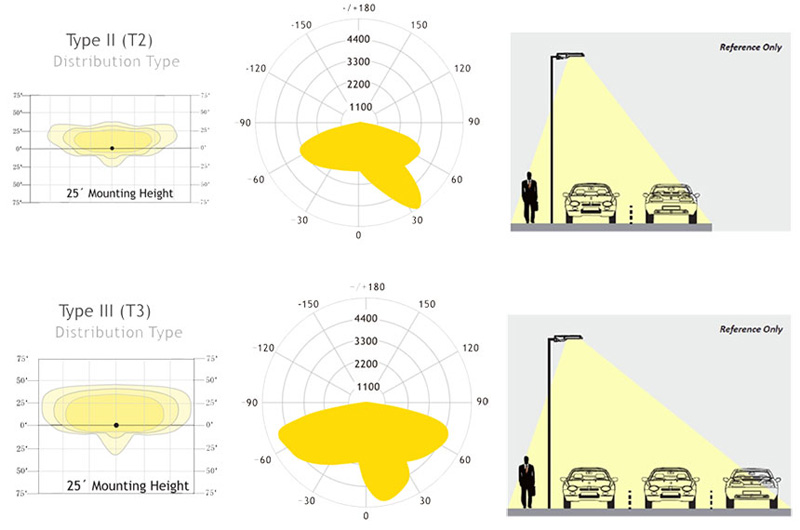

Beam angle

TYPE II TYPE III beam angle optional



Application

1.Residential Complex

2.Small traffic round - about

3.Lighting of secondary roads / side roads

4.Parks & gardens • Security lighting

LED Street Lights Pluto Series
