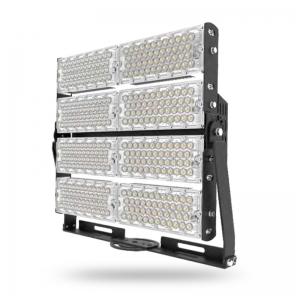

Product Abstract:

960W TUV SAA LED High Mast Light,Rotatable Module,160Lm/W, 148,800 Lumen, IP65, Stadium Light,Sports Lighting,Flood Lighting,designed to replace 2000W HPS MH high mast lights. LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.


LED High Mask Light

Overview:

960W TUV SAA LED High Mast Light,Rotatable Module,160Lm/W, 148,800 Lumen, IP65, Stadium Light,Sports Lighting,Flood Lighting,designed to replace 2000W HPS MH high mast lights. LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.



HZB™ LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights. LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.



LED High Mast Lighting fixtures differ greatly from the typical street or roadway lights. High Mast Lighting fixtures are regularly mounted at 15 meters to more than 30 meters above ground level and occasionally as high as 30 meters.



Our High Mast Lights is Aluminum housing, DLC Premium Listed; Up to 223,200 lumens; Applications; High-Mast Lighting, Yard Lighting, Area & Storage Lighting; replaces existing up to 3,000Watt Metal Halide and HPS; Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.



LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. ETL Listed and DLC qualified for rebates. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.



The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.

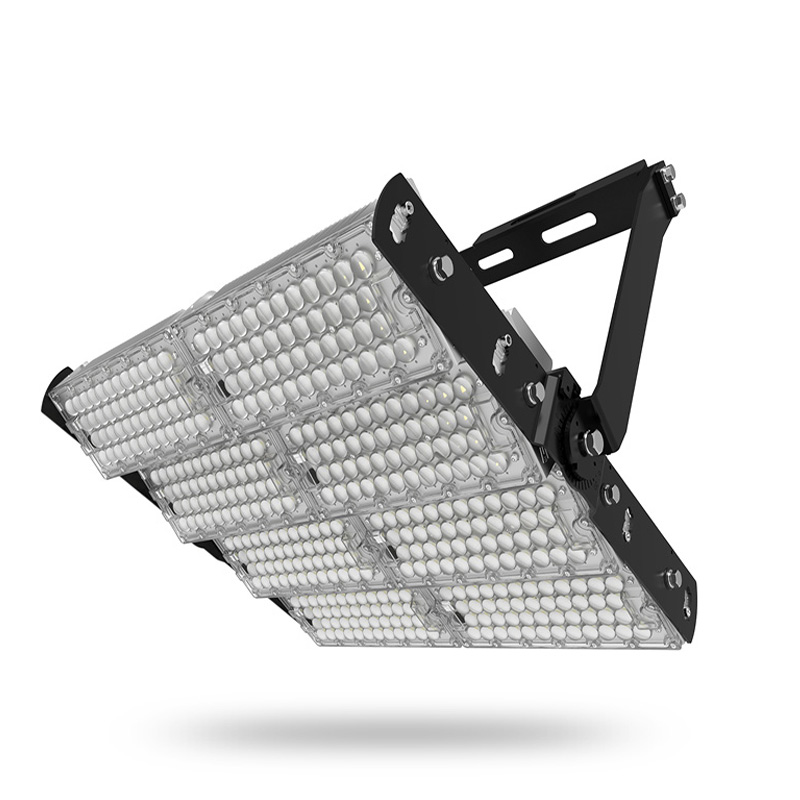

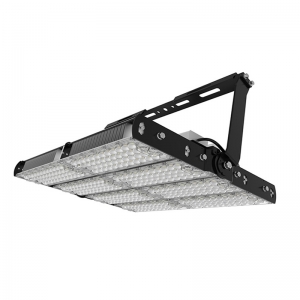

LED High Mast Lights



Waterproof IP65:
1.Anti-dust design,able to be with flushable cleaning
2.IP65 (TUV report available)
3.Can't be immersed into the water

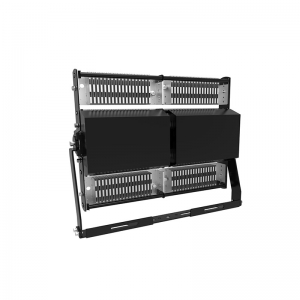

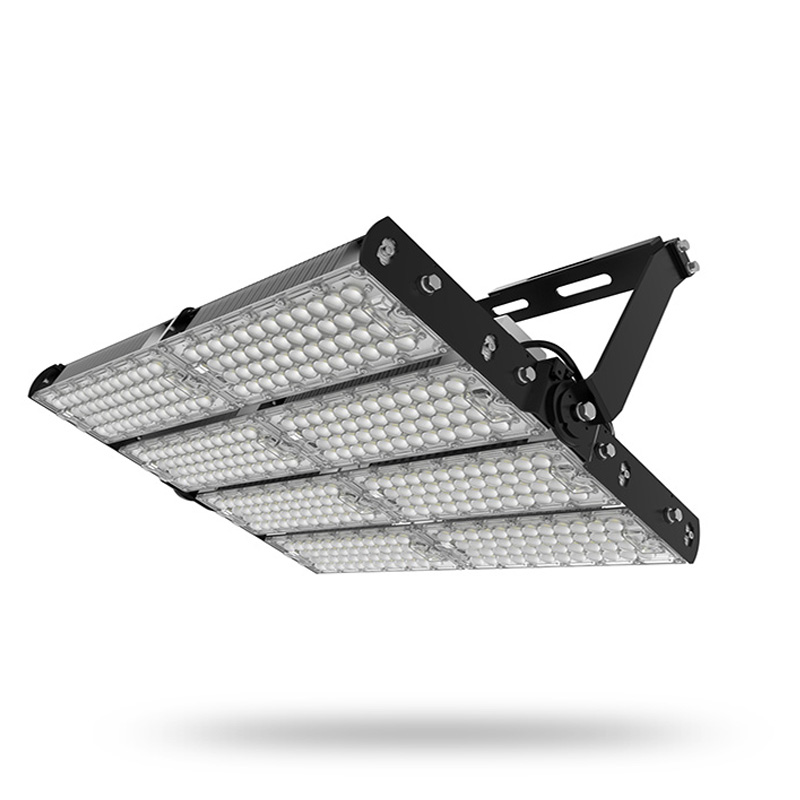

960W LED High Mast Lights960W LED High Mast Lights960W LED High Mast LightsLED High Mast Lights

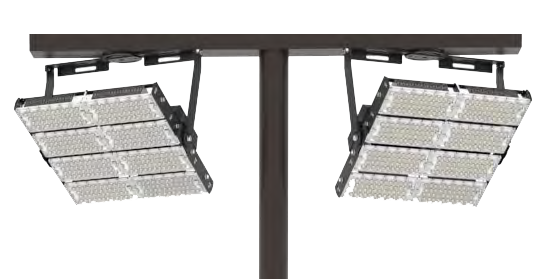

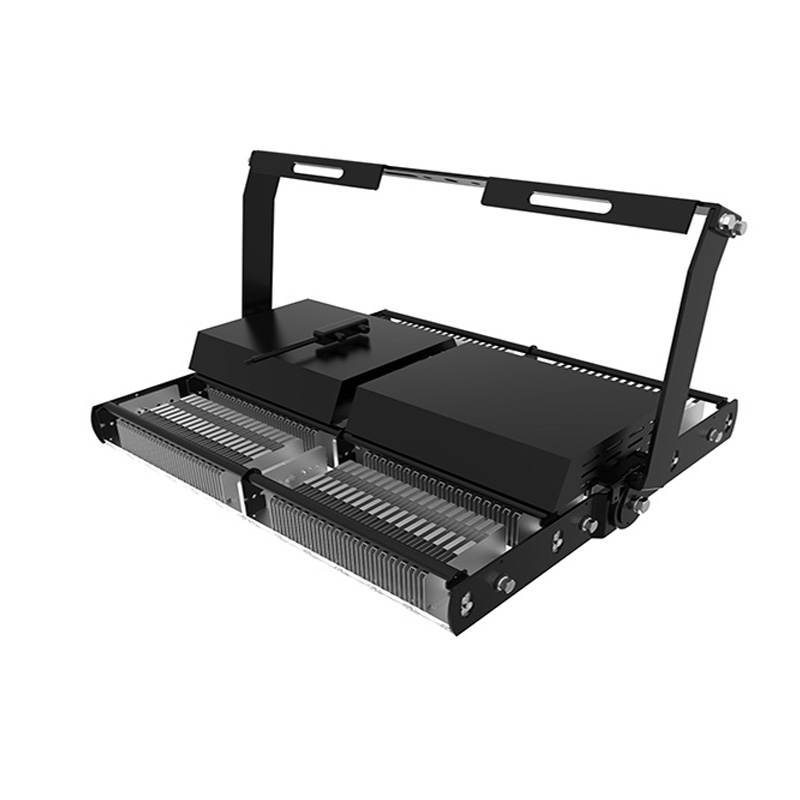

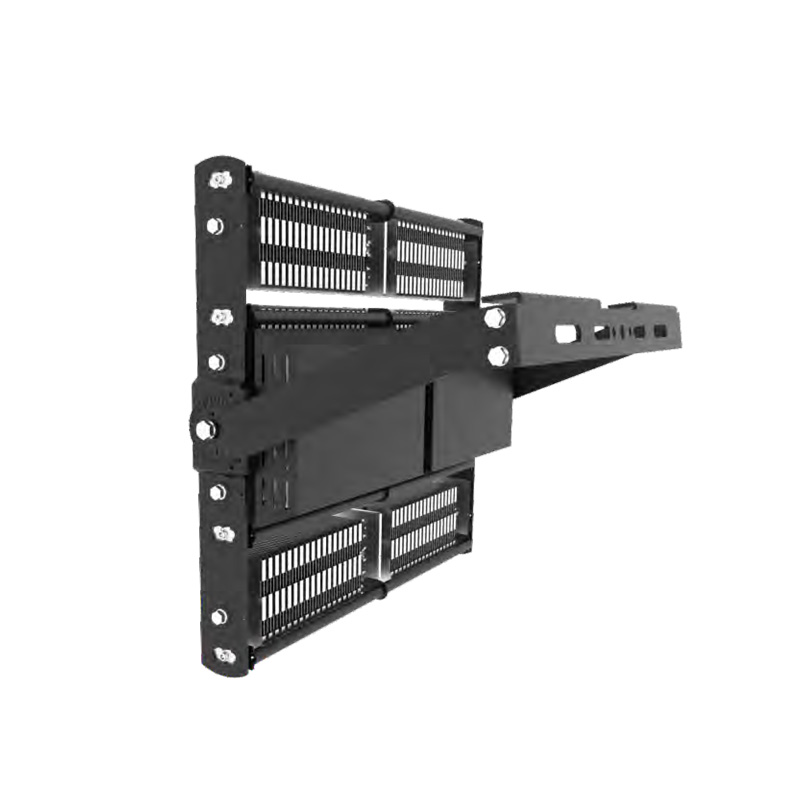

LED High Mast Lights Adjustable Mount



Adjustable:
1.Rotatable module
2.Replaceable optical lens
3.Protractor scale for easier aiming
4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

LED High Mask Light Adjustable



Specifications:

Model HZB-HM-R1-1440W HZB-HM-R1-1200W HZB-HM-R1-1000W HZB-HM-R1-960W HZB-HM-R1-800W
Power 1440W 1200W 1000W

960W

800W

Lumens 223,200Lm 186,000Lm 160,000Lm 148,800Lm 128,000Lm
Efficency 155LM/W±3% 155LM/W±3% 160LM/W±3% 155LM/W±3% 160LM/W±3%

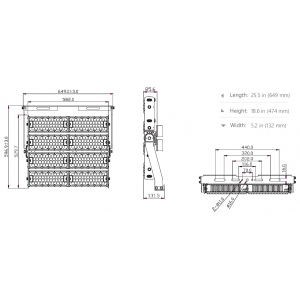

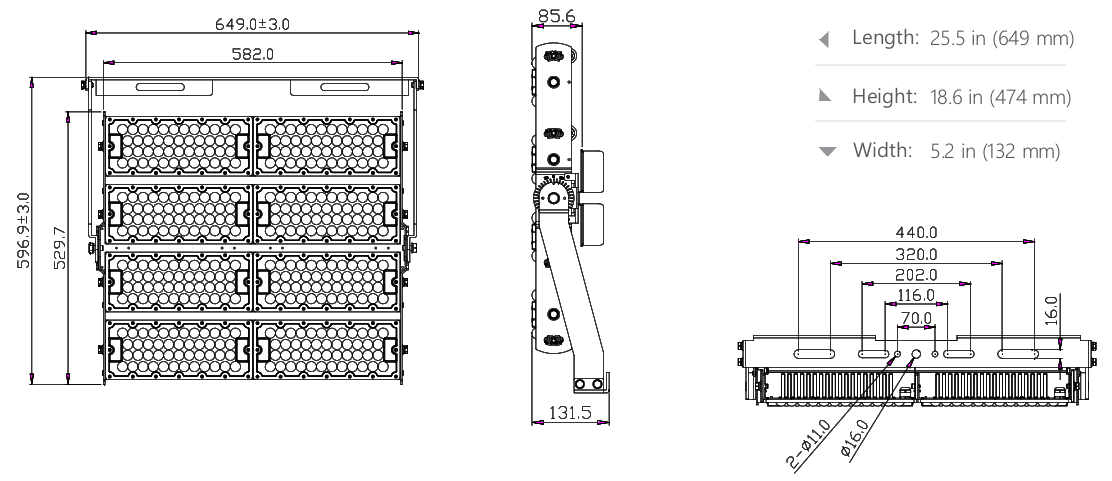

Dimension: 860*650*132mm
33.85*14.25*5.19inch
729*650*132mm
28.70*14.25*5.19inch
729*650*132mm
28.70*14.25*5.19inch
597*650*132mm
23.50*25.59*5.19inch
597*650*132mm
23.50*25.59*5.19inch
Light Source Lumileds 5050 Lumileds 5050 Lumileds 5050 Lumileds 5050 Lumileds 5050
Replacement 3000W HID / Metal Halide 2500W HID / Metal Halide 2200W HID / Metal Halide 2000W HID / Metal Halide 1750W HID / Metal Halide
Color Temp 3000K/4000K/5000K/5700K
Driver Power: Meanwell Driver ELG-(150/200/240)-48A
Lifetime 50,000+ hours
Input Voltage 100-277VAC,50/60Hz
Power Factor PF>0.95
Net weight
Net weight 25.0kg 21.5kg 21.5kg 18.0kg 18.0kg
Beam Angle 20° / 40° / 60° / 90°
140*100°/milky PC 120° (Module rotatable up & down 15° )
IP Rating IP65 (TUV report available)
Housing Marine grade aluminum
Certification TUV CE RoHS SAA CB LCP Lm79 Lm80 ISTMT
Salt spray test
Warranty 5 Years factory warranty





Model HZB-HM-R1-600W HZB-HM-R1-600W HZB-HM-R1-480W HZB-HM-R1-400W HZB-HM-R1-300W
Power 720W 600W 480W

400W

300W

Lumens 111,600Lm 96,000Lm 74,400Lm 64,000Lm 48,000Lm
Efficency 155LM/W±3% 160LM/W±3% 155LM/W±3% 160LM/W±3% 160LM/W±3%
Dimension: 861*362*132mm
33.89*14.25*5.19inch
861*362*132mm
33.89*14.25*5.19inch
597*362*132mm
23.50*14.25*5.19inch
597*362*132mm
23.50*14.25*5.19inch
475*362*132mm
18.70*14.25*5.19inch
Light Source Lumileds 5050 Lumileds 5050 Lumileds 5050 Lumileds 5050 Lumileds 5050
Replacement 1500W HID / Metal Halide 1200W HID / Metal Halide 1000W HID / Metal Halide 800W HID / Metal Halide 600W HID / Metal Halide
Color Temp 3000K/4000K/5000K/5700K
Driver Power: Meanwell Driver ELG-(150/200/240)-48A
Lifetime 50,000+ hours
Input Voltage 100-277VAC,50/60Hz
Power Factor PF>0.95
Net weight
Net weight 13.2kg 13.2kg 10.0kg 10.0kg 8.0kg
Beam Angle 20° / 40° / 60° / 90°
140*100°/milky PC 120° (Module rotatable up & down 15° )
IP Rating IP65 (TUV report available)
Housing Marine grade aluminum
Certification TUV CE RoHS SAA CB LCP Lm79 Lm80 ISTMT
Salt spray test
Warranty 5 Years factory warranty



Model HZB-HM-R1-100W HZB-HM-R1-120W HZB-HM-R1-200W HZB-HM-R1-240W
Power 100W 120W

200W

240W

Lumens 16,000Lm 18,600Lm 32,000Lm 37,800Lm
Efficency 160LM/W±3% 155LM/W±3% 160LM/W 155LM/W±3%
Dimension: 297*362*132mm
11.69*14.25*5.19inch
297*362*132mm
11.69*14.25*5.19inch
342*362*132mm
13.46*14.25*5.19inch
342*362*132mm
13.46*14.25*5.19inch
Light Source Lumileds 5050 Lumileds 5050 Lumileds 5050 Lumileds 5050
Replacement 250W HID / Metal Halide 300W HID / Metal Halide 400W HID / Metal Halide 500W HID / Metal Halide
Color Temp 3000K/4000K/5000K/5700K
Driver Power: Meanwell Driver ELG-(150/200/240)-48A
Lifetime 50,000+ hours
Input Voltage 100-277VAC,50/60Hz
Power Factor PF>0.95
Net weight
Net weight 2.4kg 2.7kg 6.0kg 6.0kg
Beam Angle 20° / 40° / 60° / 90°
140*100°/milky PC 120° (Module rotatable up & down 15° )
IP Rating IP65 (TUV report available)
Housing Marine grade aluminum
Certification TUV CE RoHS SAA CB LCP Lm79 Lm80 ISTMT
Salt spray test
Warranty 5 Years factory warranty

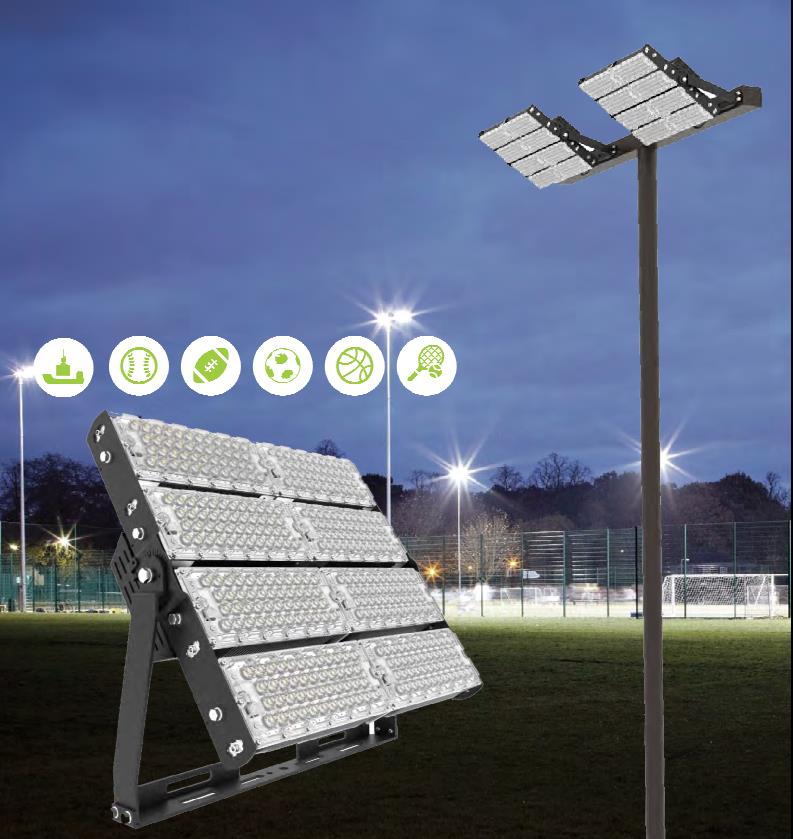

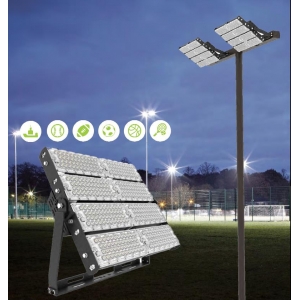

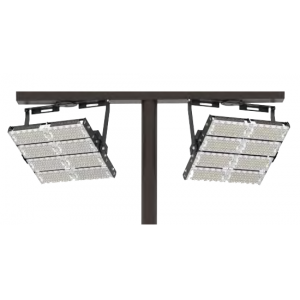

Applications:

LED High Mast Lights ApplicationLED High Mast Lights ApplicationLED High Mast Lights Application
