Overview:

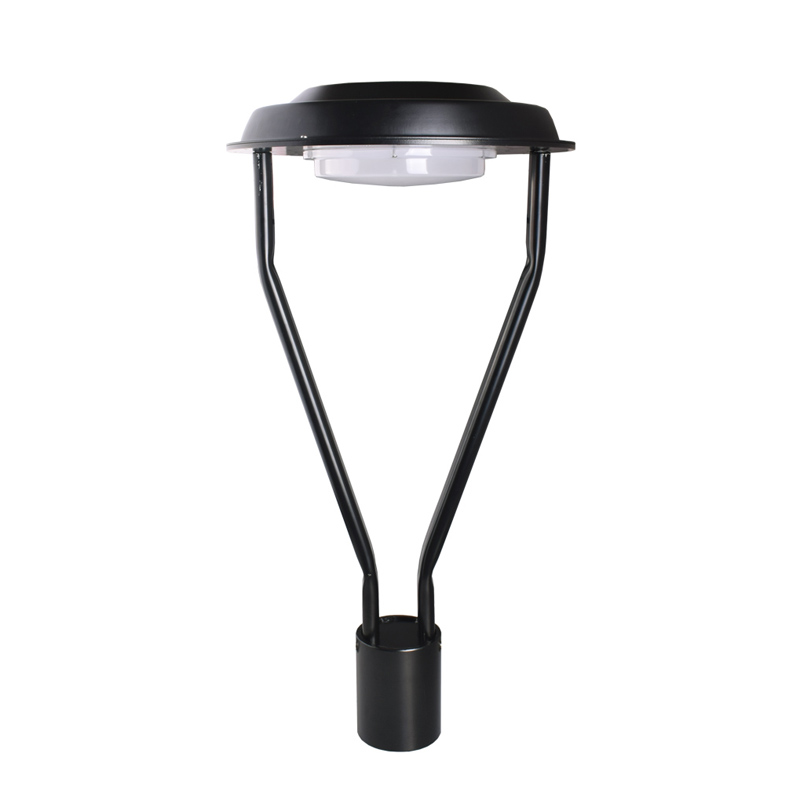

30W LED Pole Top Garden Light, 3900lm / 4500lm, replaces a 75-105W Equivalent Area Light (Metal Halide or HPS), provides excellent illuminative solutions to parking areas, roadways,campuses and streetscapes. We Provide high quality LED Post Top Light fixtures, Post top lights are ideal for streetscapes, parks, green spaces, campuses, and gathering areas.



30W LED Post Top Garden Light,Outdoor Post-Top Light Fixtures,LED Post Top Lantern,LED Post Top Light Fixtures,LED Post Top Area Light is designed to meet the needs for outdoor lighting, like square, garden, pathway,places where need energy saving and high color rendering index lighting.



Post top lights are the crowning feature of any outdoor landscape or streetscape. When added to a park or walkway, post top lights illuminate landscape elements as well as improve safety by providing a uniform ambient light that increase visibility for pedestrians. Pole top lights can enhance an overall outdoor design. Coming in a variety of styles from traditional to contemporary, post top lights can represent the overarching style of outdoor design. Eaton has a myriad of post or pole top lighting solutions. Featuring LED lamp sources, heavy-duty aluminum housings, optional decorative finials and optional controls, our post top lamps are the perfect exterior lighting solution.



It is designed for large outdoor areas such as parking lots, corporate parks, and retail settings,yard,garden etc; It also called High output LED pole top area light with IES type V circular distribution. With Wide and uniform 360 degree pattern ideal application in above places.



For dusk-til-dawn lighting control, try this selection of locking-type photocells of LED Pole Top Area Lighting. These simple sensors detect changes in light and turn fixtures on or off. Conventional photocells of Post Top Lighting can be used for traditional outdoor lighting sources like outdoor areas such as parking lots,corporate parks,and retail settings.

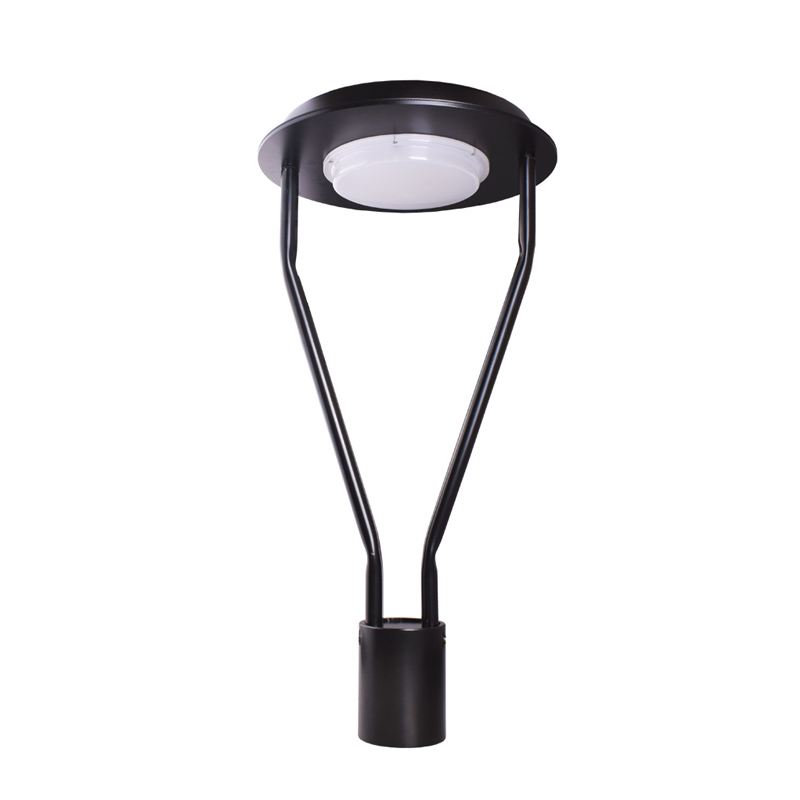

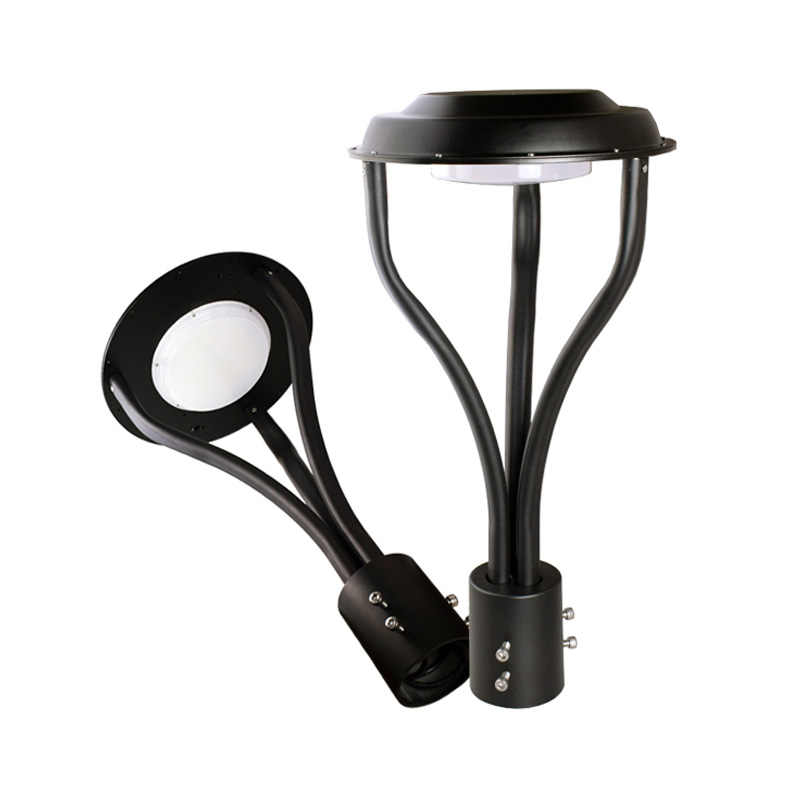

The high output LED circular post top area light can replace conventional area lights and floodlights. The precise die cast aluminum housing with 5 conduit entries and reliable powder coating enables the light used in harsh outdoor environments. The external air-flow fins design is perfect for maximum heat dissipation. The post top light is compatible with US/Canadian standard 2 3/8" and 3" tenons and can be fitted with photocell/photo control. Durable chip, fade resistant powder coat finish, wide and uniform 360 degree pattern make it ideal for large outdoor areas such as corporate parks, walkways, parking lots and retail settings.



Features/Benifits:

• 130lm/w or 150lm/w
• Beam angle : 120 degree
• Universal AC input 100-2777Vac or 100-347Vac or 200-480Vac. PF>0.95.
• Photocell is available
• Surge protector (Optional): 10KV
• Dimmable (Optional): 0-10V
• Color temperature: 2200K, 2700K, 3000k, 4000k, 4500k, 5000k, 5700k, 6500k, Amber, Red, Green, Blue.
• Clear cover or milky cover

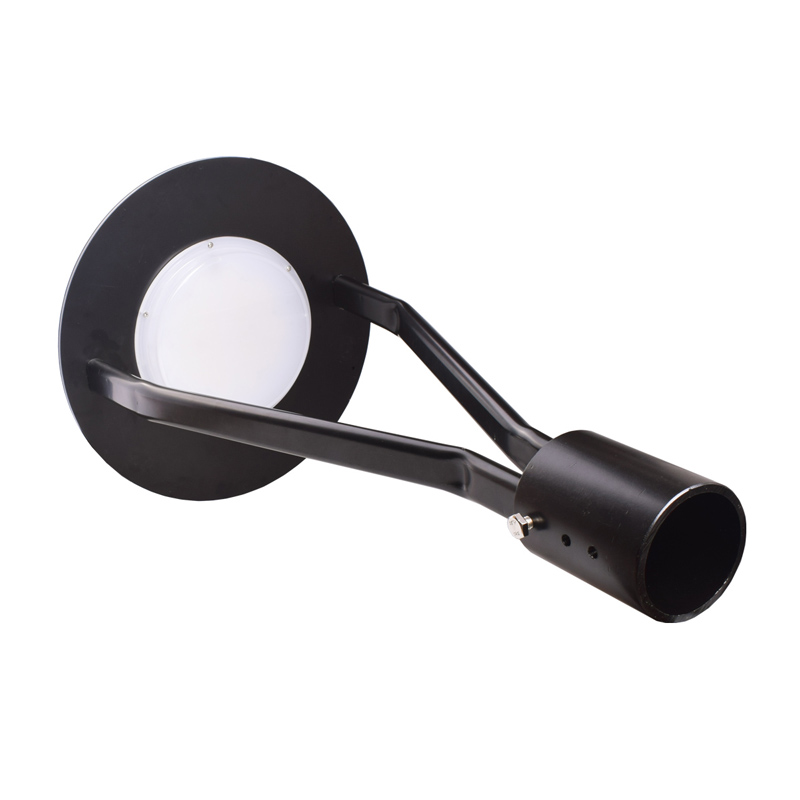

• Mounting : for diameter 60mm or 75mm tenons
• Ip65 for outdoor lighting

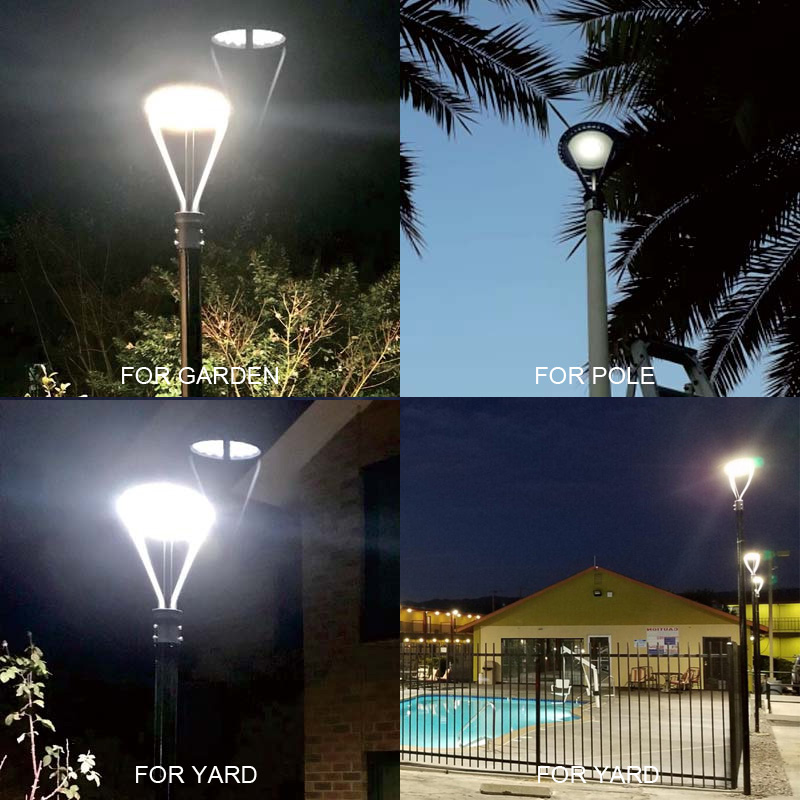

• Application: garden, pathway, yard, outdoor area, road, pole lighting
• Life time: >50,000 hours
• Warranty: 5 years factory warranty



Specification:

Model	HZB-AL-30W	HZB-AL-50W	HZB-AL-60W	HZB-AL-70W
Power	30W	50W	60W	70W
Lumens	3,900lm / 4,500lm	6,500lm / 7,500lm	7,800lm / 9,000lm	9,100lm / 10,500lm
Efficency	130lm/w / 150lm/w	130lm/w / 150lm/w	130lm/w / 150lm/w	130lm/w / 150lm/w

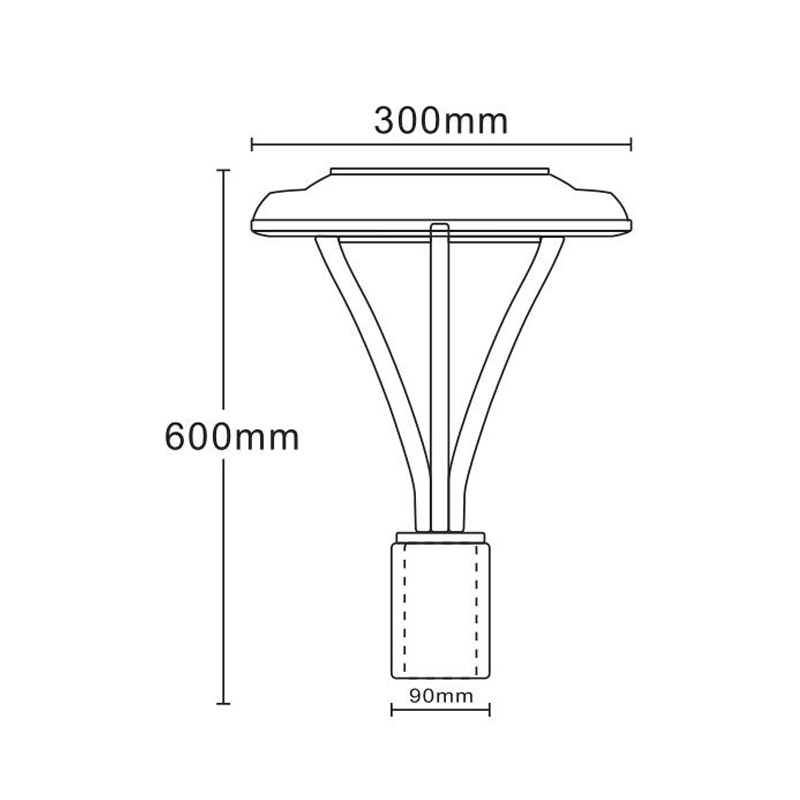

Dimension	￠300*600mm 11.8*23.6inch

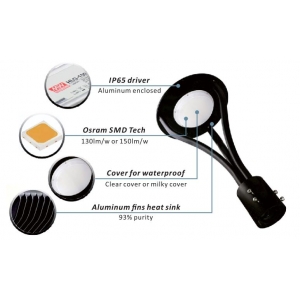

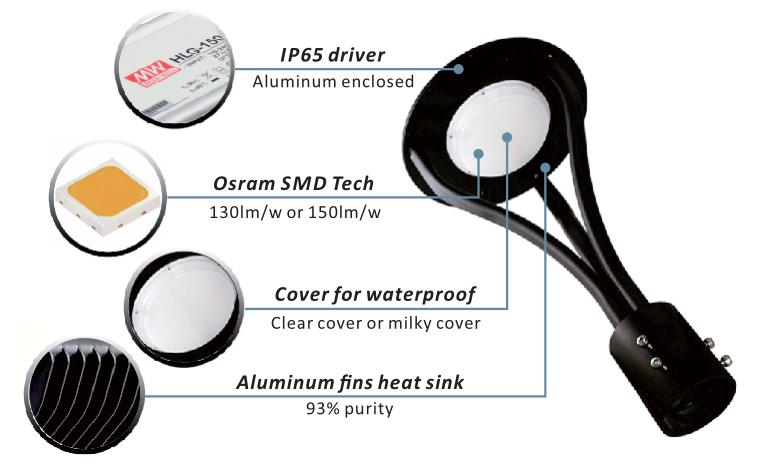

Light Source	Osram LED Chip
Replacement	75-105w MH, HPS	125-175w MH, HPS	175-250w MH, HPS	225-275w MH, HPS
Color Temp	2200K, 2700K, 3000k, 4000k, 4500k, 5000k, 5700k, 6500k, Amber, Red, Green, Blue.
Driver Power	IP65 Driver
Lifetime	50,000+ hours
Input Voltage	100-277VAC,50/60Hz
Power Factor	PF>0.95
Net weight	4.0kg
Beam Angle	120°
IP Rating	IP65

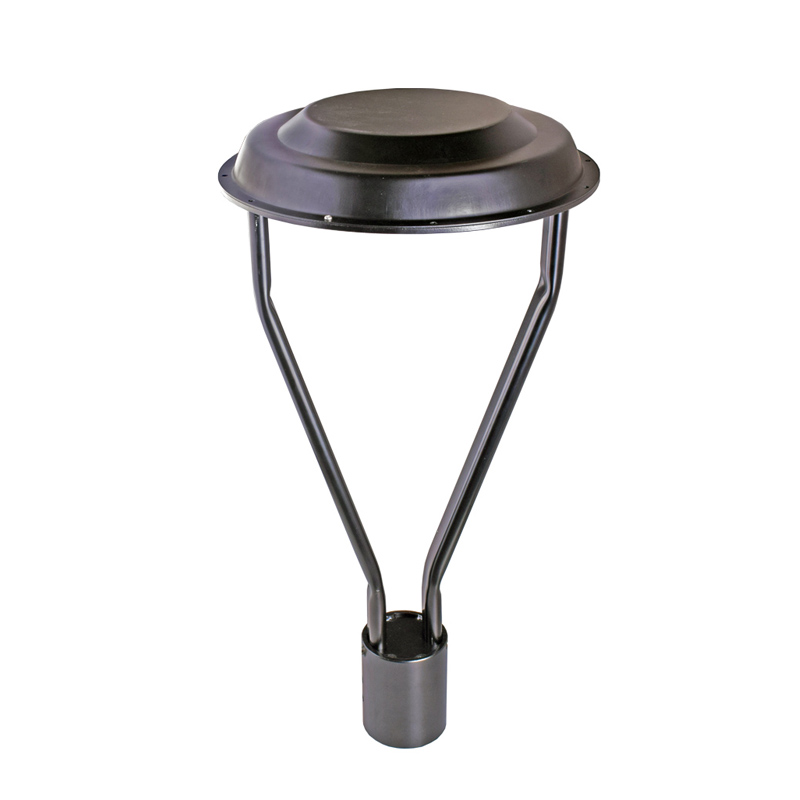

Housing	Aluminum
Certification	DLC
Warranty	5 Years factory warranty



Applications:
