Product Abstract:

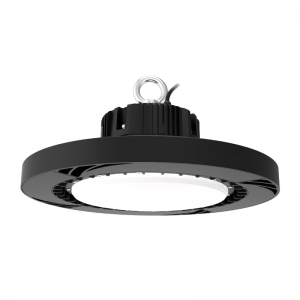

This Cyclone Series UFO LED High Bay Lights are cyclone shape and high quality high Luminous Efficacy 130lm - 160lm/w from 60W 100W 150W 200W to 240W, 150 Watt UFO LED High Bay Light,130lm/w smd 3030 LED 19,500 Lumens,Lifetime 50,000+ hours, 400W HID/HPS Equivalent,Microwave Motion,daylight sensor available,Meanwell Driver,DLC,ETL TUV CE CB SAA RoHS listed,5 Years Warranty.

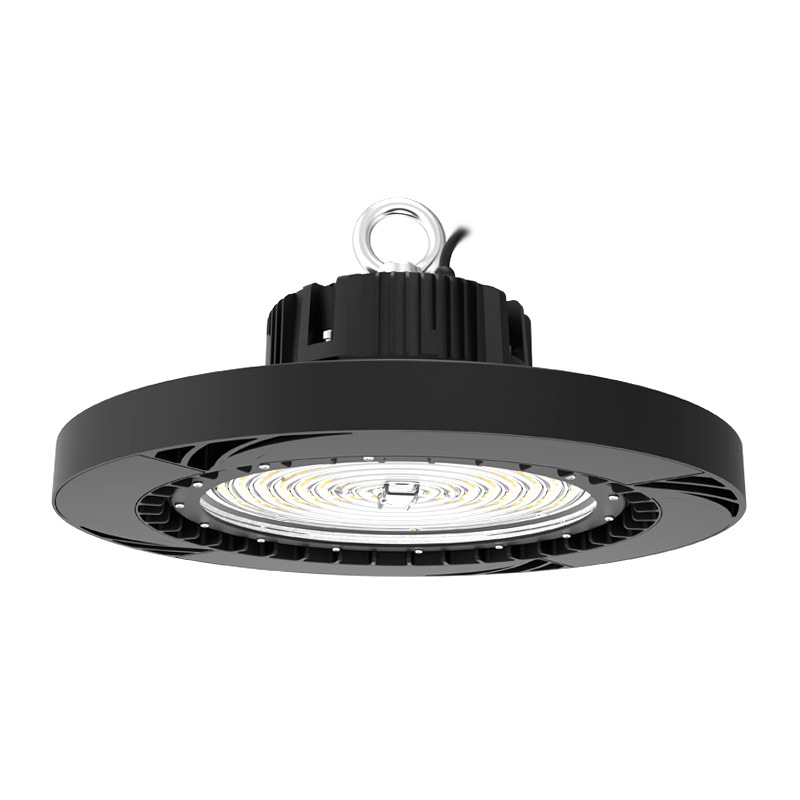

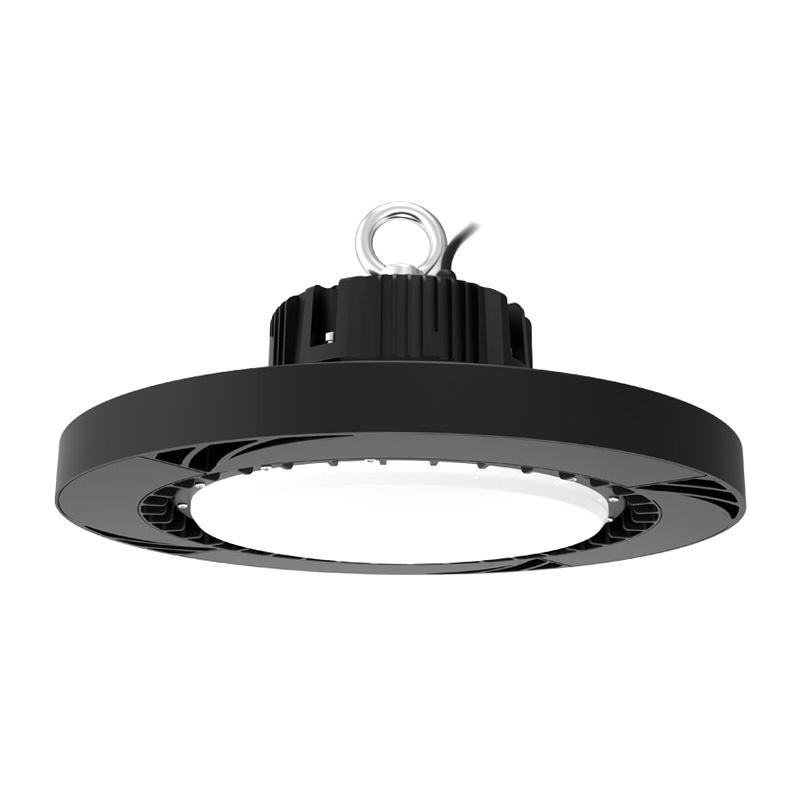

UFO LED High Bay LightUFO LED High Bay LightUFO LED High Bay Light

Overview:

This Cyclone Series UFO LED High Bay Lights are cyclone shape and high quality high Luminous Efficacy 130lm - 160lm/w from 60W 100W 150W 200W to 240W, 150 Watt UFO LED High Bay Light,130lm/w smd 3030 LED 19,500 Lumens,Lifetime 50,000+ hours, 400W HID/HPS Equivalent,Microwave Motion,daylight sensor available,Meanwell Driver,DLC,ETL TUV CE CB SAA RoHS listed,5 Years Warranty.

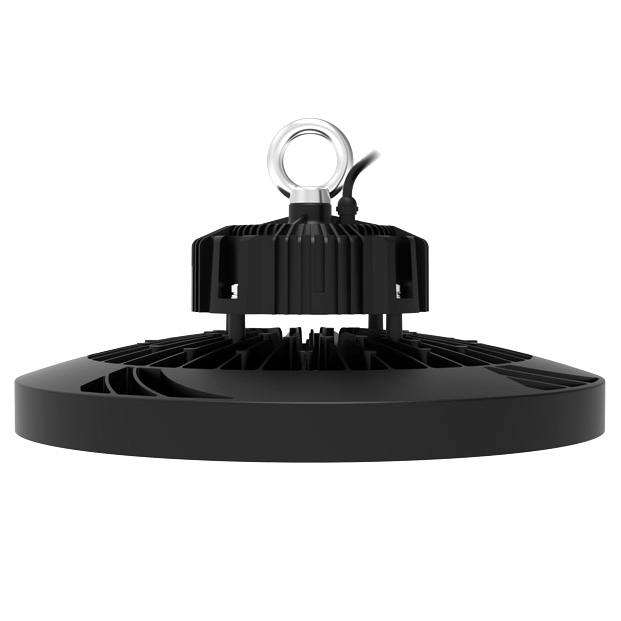

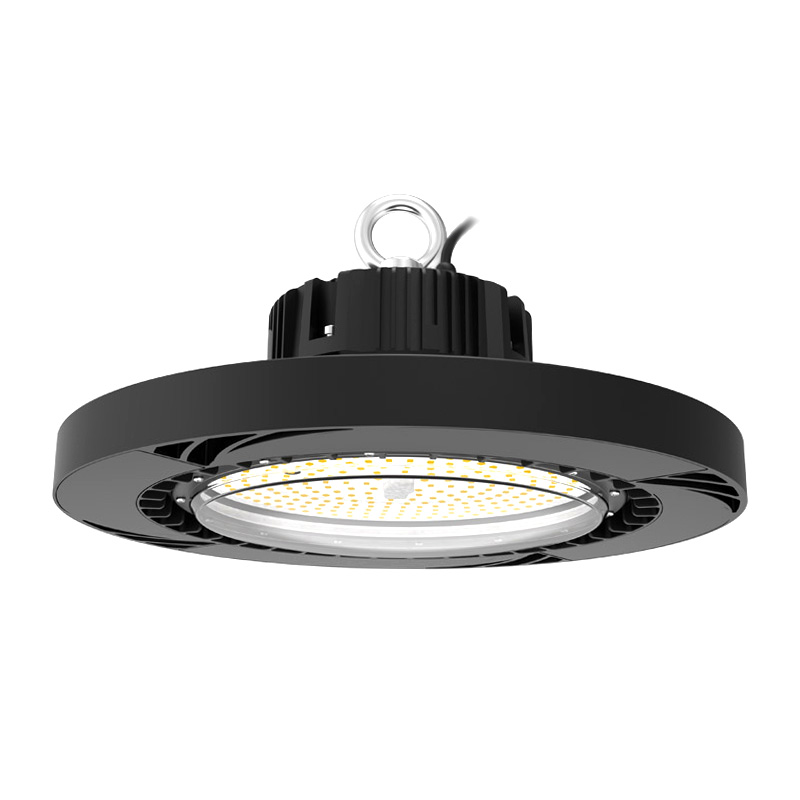

UFO LED High Bay Light Cyclone Series
60W 100W 150W 200W 240W
ETL DLC Premium CE CB SAA RoHS Lm79 listed
With most suitable beam angle 60° 90° and 120°
Original Philips SMD 3030 which up to 130Lm/W to 160Lm/W

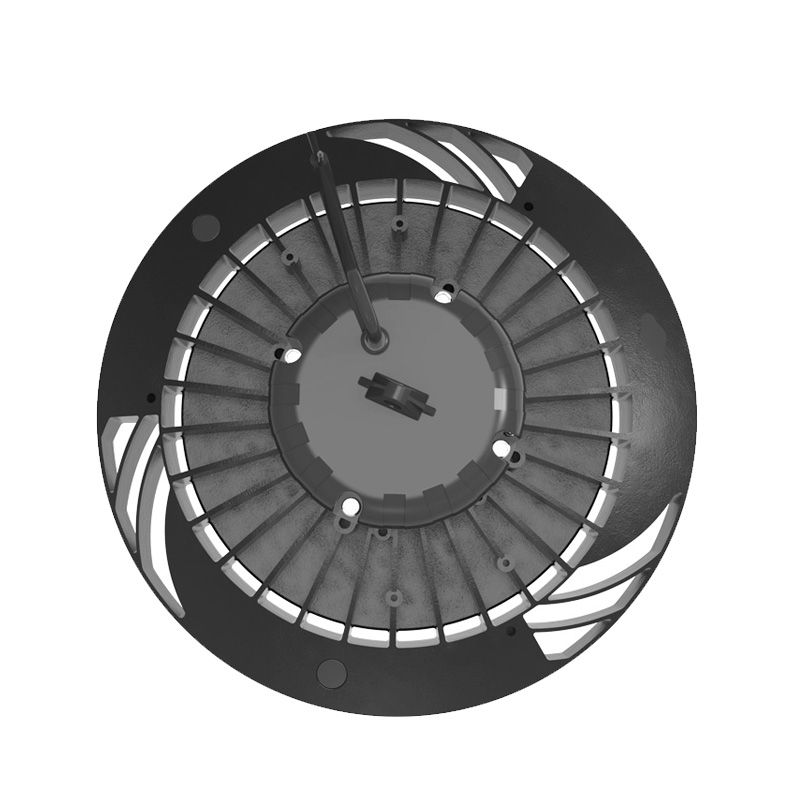

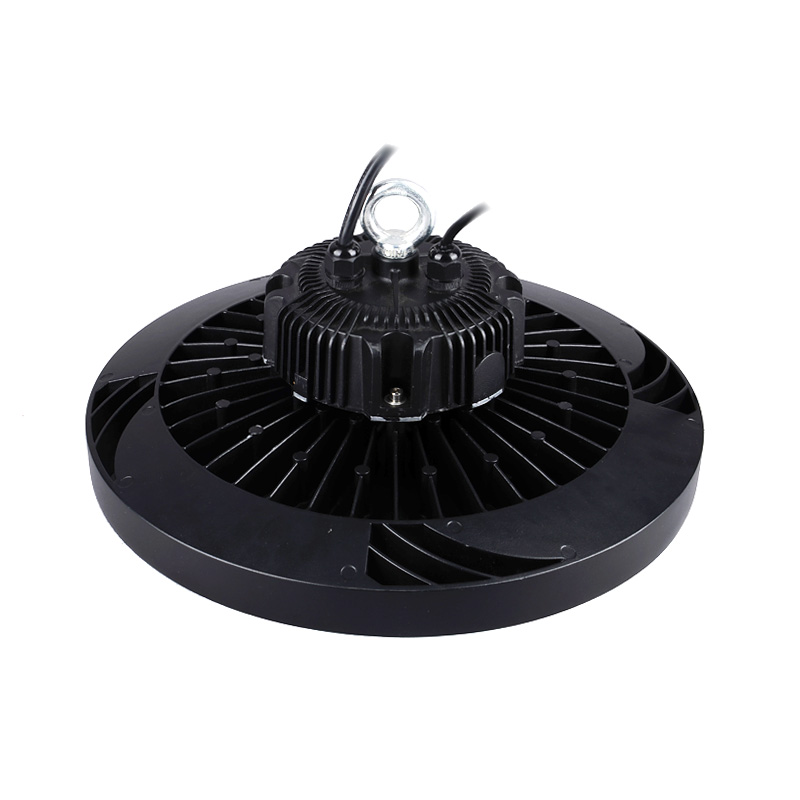

"Cyclone" series LED High Bay adopts the hurricane shape design style, which leads to the best air convection design, die-casting integrated heat sink maximizes the heat dissipation area to reduce the light decay of the lamp and lengthen the lifespan.This "Cyclone" series UFO LED High Bay can satisty various application projects requirements,supporting Aluminum reflector、PC reflector without end cap、Tempered Glass、Yoke Bracket、Microwave Motion sensor、Zigbee system lighting etcThe "Cyclone" series UFO LED High Bay Light can be an ideal lighting choice for warehouses, large warehouse spaces and other industrial and commercial lighting applications. Do remember it that we are the R&D factory, so we have the most competitive price in the market with the top quality level.



Luminous efficiency is particularly important when selecting the high bay lighting fixtures. Because the lamp fixture is mounted on a very high ceiling, it is necessary to maximize the luminous efficiency for optimal illumination. With newly developed, designed, and produced "Cyclone" series UFO High Bay Light, which has a 140lm/w ultra-high luminous efficiency and DLC4.2 certification ,which are able to help you save much money. "Hurricane" series heat-dissipation body with Die casting aluminum ADC12 die-casting molding helps transfer heat more evenly. Higher luminous efficiency, better appearance, more stable performance, and more advantageous ex-factory price "Cyclone" series UFO LED HIgh Bay will be widely applied in many LED lighting projects.



DLC certified yields 130-150 lumens per watt. It uses the latest Lumileds SMD 3030 LED modules for high performance. Industrial grade components for long life; LED High Bay Light or Warehouse Light. Aluminum Housing with high tech Heat Sink protects the state of the art MEANWELL Driver. Better Heat dissipation ensures longer LED life and safety. Acrylic lens. IP65 Waterproof for all conditions. All backed by a 5-year warranty.



Benefits:
When choosing lighting for high bay ceilings, efficiency is important. LED lighting uses significantly fewer Watts (W) than conventional lighting. But that's not the only Savings you enjoy when selecting LED lighting. Conventional bulbs have a shorter operating lifetime compared to LED lighting. If you are using conventional bulbs you will be purchasing up to four times as many bulbs or fixtures compared to a single LED replacement with a long operating lifetime.



Buying and using conventional bulbs and fixtures also means that you incur three times more maintenance as well as replacement costs compared to LED lighting. Just think of the maintenance costs incurred getting to those hard to reach locations. LED lighting is also free of environmentally harmful Mercury as well as Halogen chemicals. LED UFO high bay light fixtures allow for illumination that is widespread and powerful.



Features:
• 5-year warranty
• High Voltage 347-480VAC available
• Long life span and less brightness degradation
• Efficacy of power supply is more than 90%.
• High Thermal Conductivity, Low Luminous Decay, Pure Colours & No Heavy Shade
• Extensive Options can replace all types of Standard MH High bays
• No UV and near-IR radiation in the light beam
• Merryteck sensors and Zigbee system compliable
• Tempered glass,PC reflector,Aluminum reflector,Yoke Bracket,milky cover are available
• Installation Mounting Options - loop / pole / ceiling / wall mount
• Motion Sensor Ready - Available with motion sensor for on/off or bi-level dimming
• DLC Listed - Makes our UFO LED Fixtures eligible for utility rebates.



Applications:
Perfect for Industrial Usage, Warehouse & Supermarkets, Workshop's, Factories, Warehouses, Highway, Тoll Stations, Gas Stations, Malls, Exhibition Halls, Stadium's & other vast areas

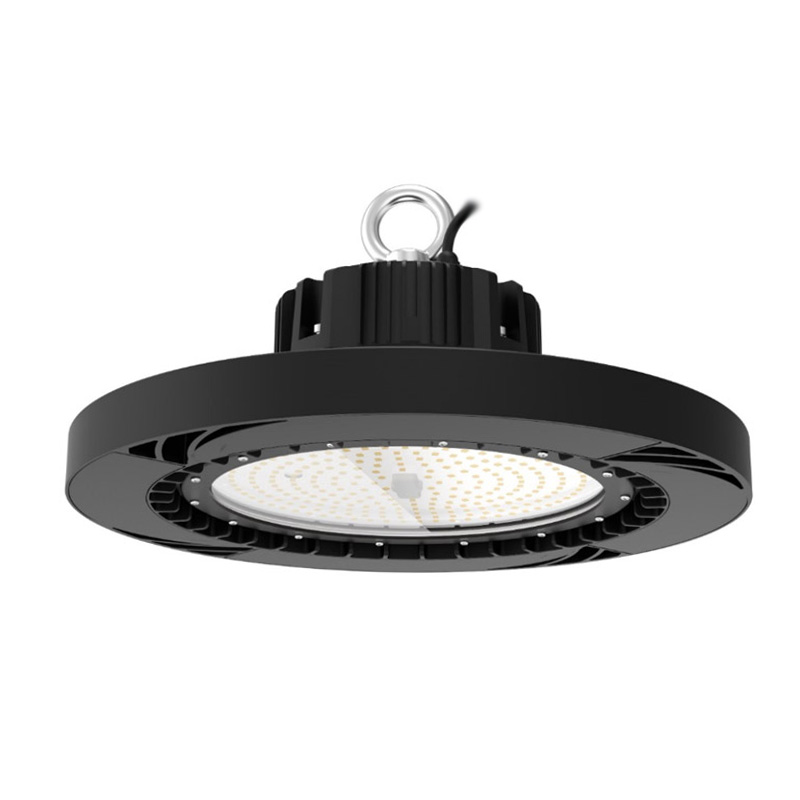

150 watt ufo led high bay light150 watt ufo led high bay light

Model HZB-UFO-C1-60W HZB-UFO-C1-100W HZB-UFO-C1-150W HZB-UFO-C1-200W HZB-UFO-C1-240W
Power 60W 100W 150W

200W

240W

Lumens (130lm/w) 7,800lm 13,000lm 19,500lm 26,000lm 31,200lm

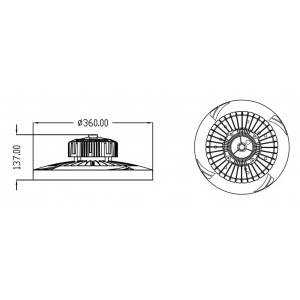

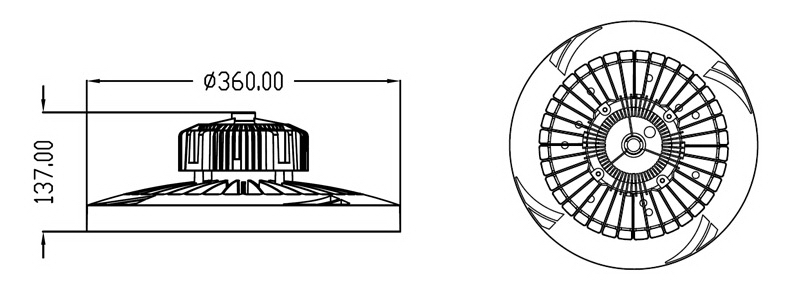

Diameter*Height 280*115mm
11.02*4.53inch
280*115mm
11.02*4.53inch
360*136mm
14.17*5.53inch
420*139mm
16.54*5.47inch
420*139mm
16.54*5.47inch

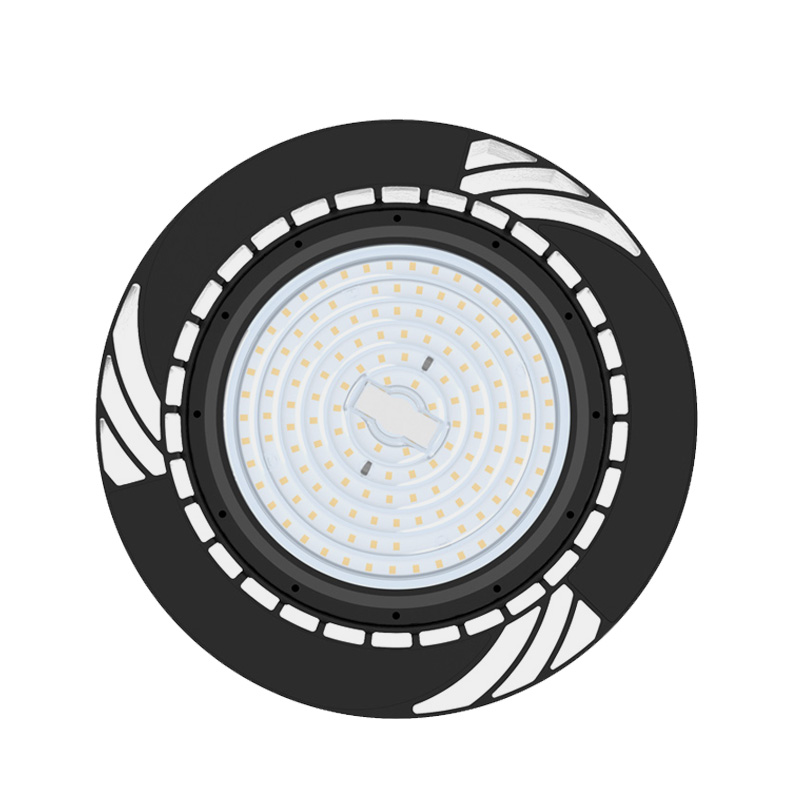

Light Source 98pcs Lumileds 3030 147pcs Lumileds 3030 217pcs Lumileds 3030 280pcs Lumileds 3030 350pcs Lumileds 3030
Replacement 150W HID / Metal Halide 250W HID / Metal Halide 400W HID / Metal Halide 500-600W HID / Metal Halide 750W HID / Metal Halide
Color Temp 3000K/4000K/5000K/5700K/6500K
Operation Temp -40°- 50°C
Lifetime 50,000+ hours
Input Voltage 100-277VAC,50/60Hz
Power Factor PF>0.95
Dimming Options Non-dimmable/dimmable
Beam Angle 90°/120° ( PC Lens IK10)
120° (Tempered Glass IK08)
IP Rating IP65 (TUV report available)
Certification ETL DLC TUV CE CB SAA RoHS LM79 listed
Warranty 3-5 years factory warranty



UFO LED High Bay Light Application
