Product Abstract:

This HZB-LD-F2 series led street lights are SMD Sword shape and high quality good price from 50W 100W to 150W, Searching for outdoor led street lights here the right place, it is widely implemented by using street light fixtures in street roadway lighting for traffic, city and public areas.

HZB F2 Series LED street light, using high-quality aluminum die casting shell, simple structure,Streamline design, surface spray treatment, high temperature resistance, good weather resistance; optimal integration.

The function of heat dissipation, beautiful appearance; using a unique two optical design of the lens, the whole Light intensity, uniform brightness; high temperature resistant silicone rubber seal, seal better equipped with high; A low loss chip imported light source, high thermal conductivity, low luminous decay, pure light color, no ghosting;Isolation of high precision IC control drive, constant current precision, high conversion rate, longer service life.


Applications: highway, city streets, bridges, tunnels, underground tunnels, underground parking lot, railway square, etc.!



1. Suitable for Surface Mount.
2. Ideal for Harsh Environment Applications.
3. 100 lumens per watt help to reduce energy saving.
4. Excellent light distribution and uniformity.
5. Slim Housing Stainless Steel Screw.
6. 50000 hours LED working time and 2 years warranty.
7. PMMA lens, 120°for your choice.
8. Ideal for high moisture areas subject to the possibility of abuse.
9. Built-in Constant Current LED Driver with High Efficient LED Module.
10. Potection grade is Ip65.

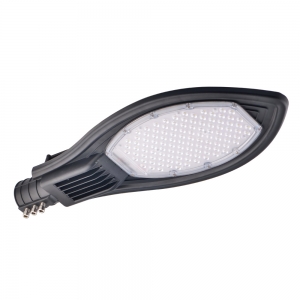

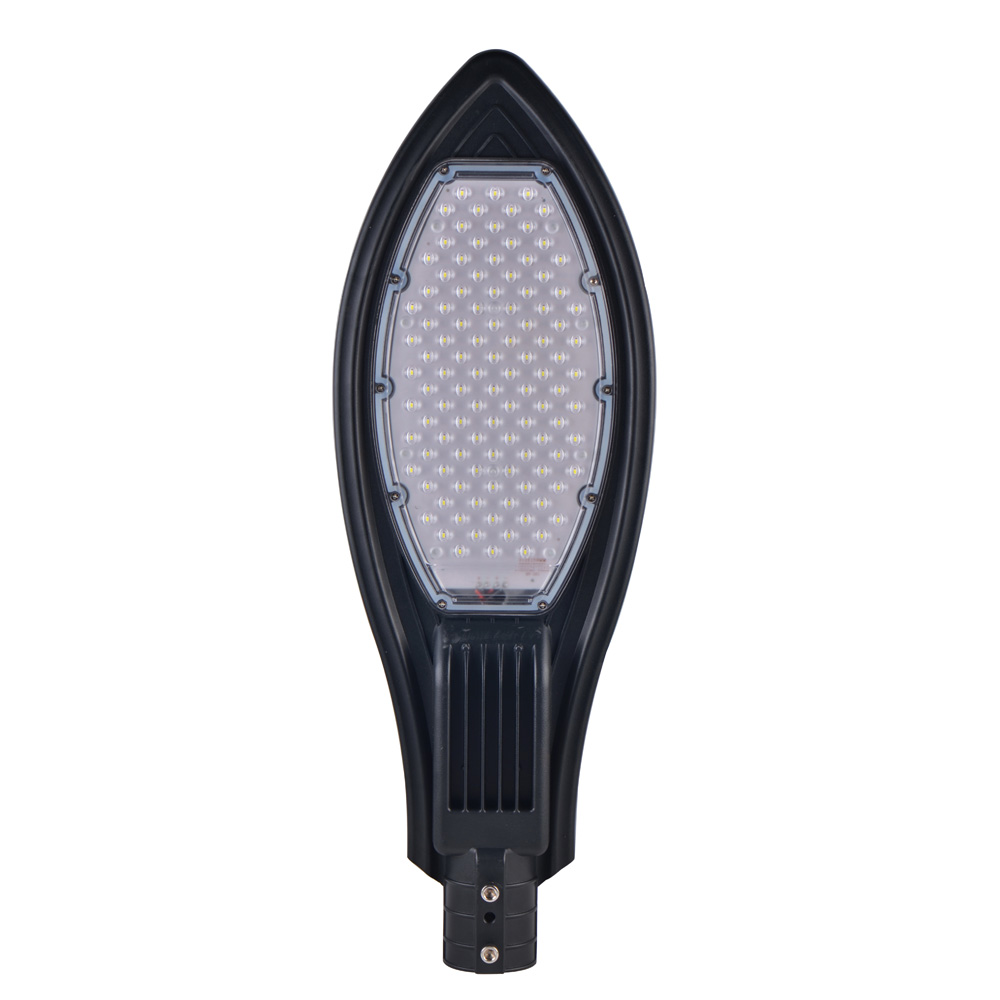

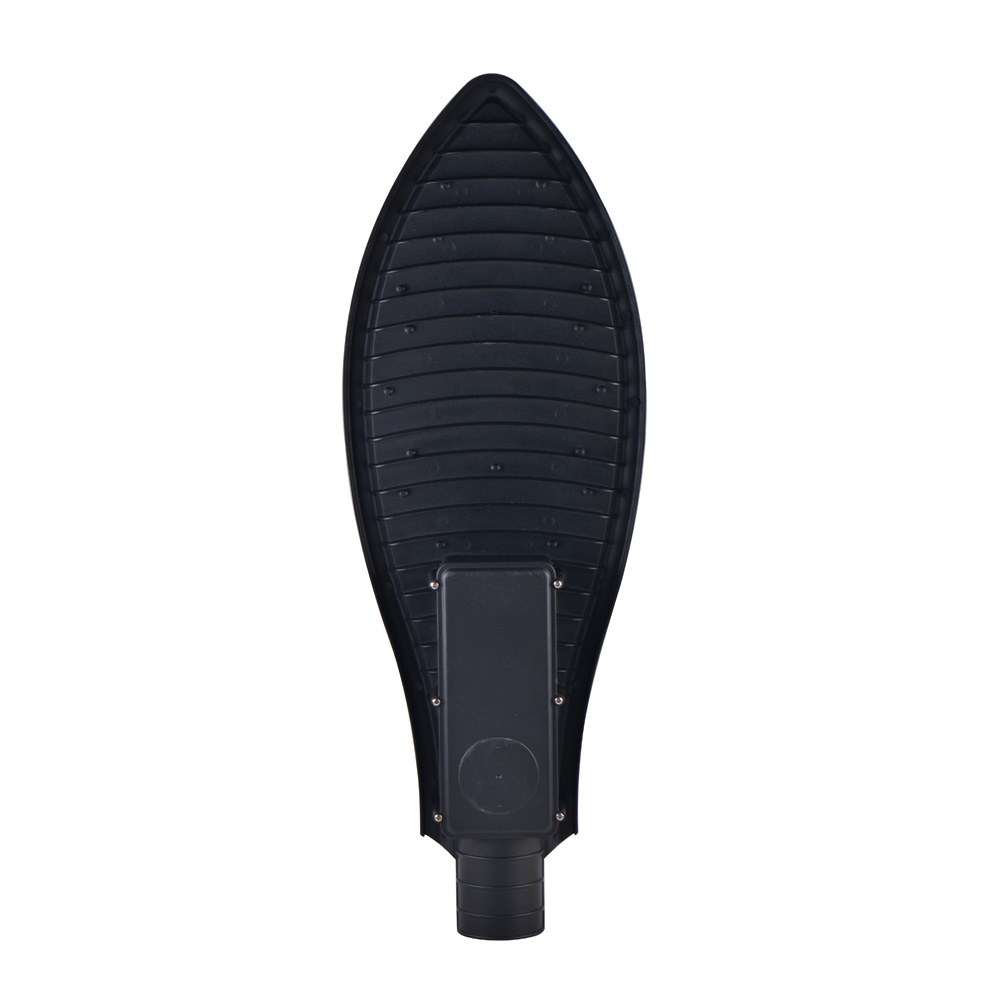

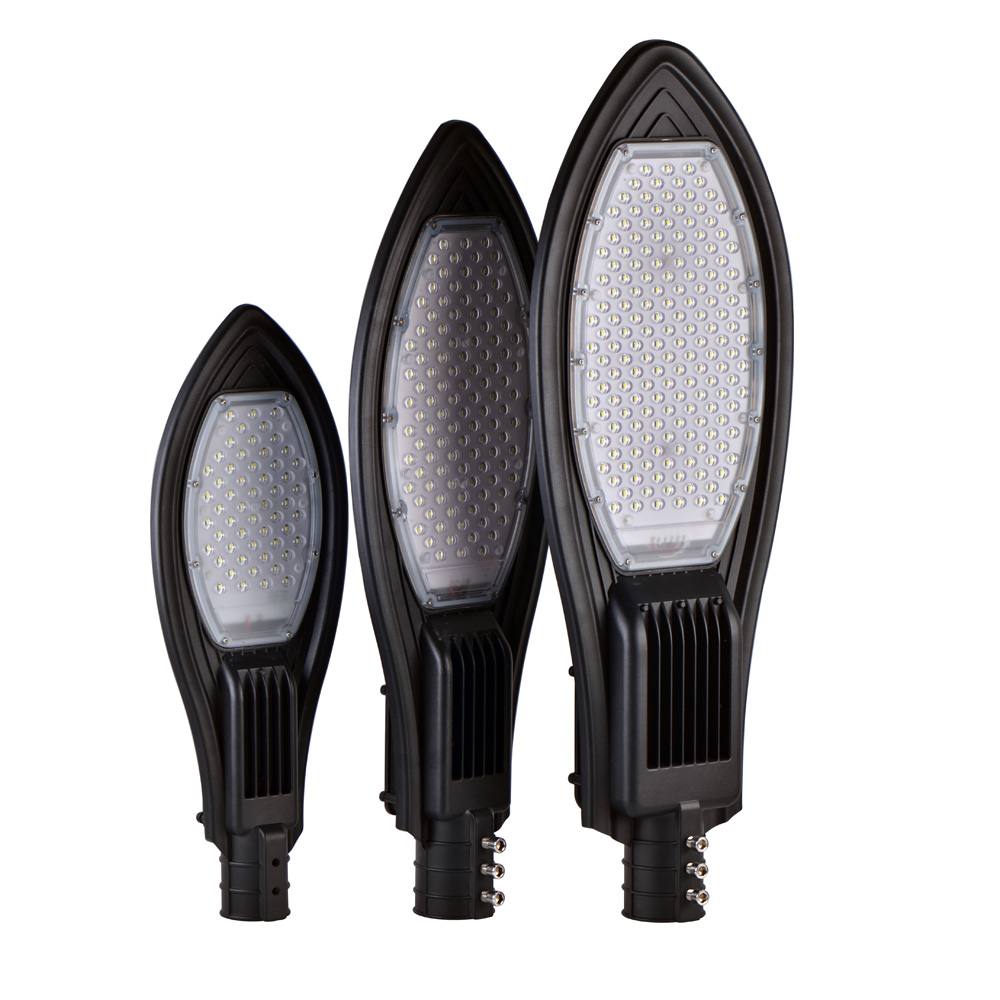

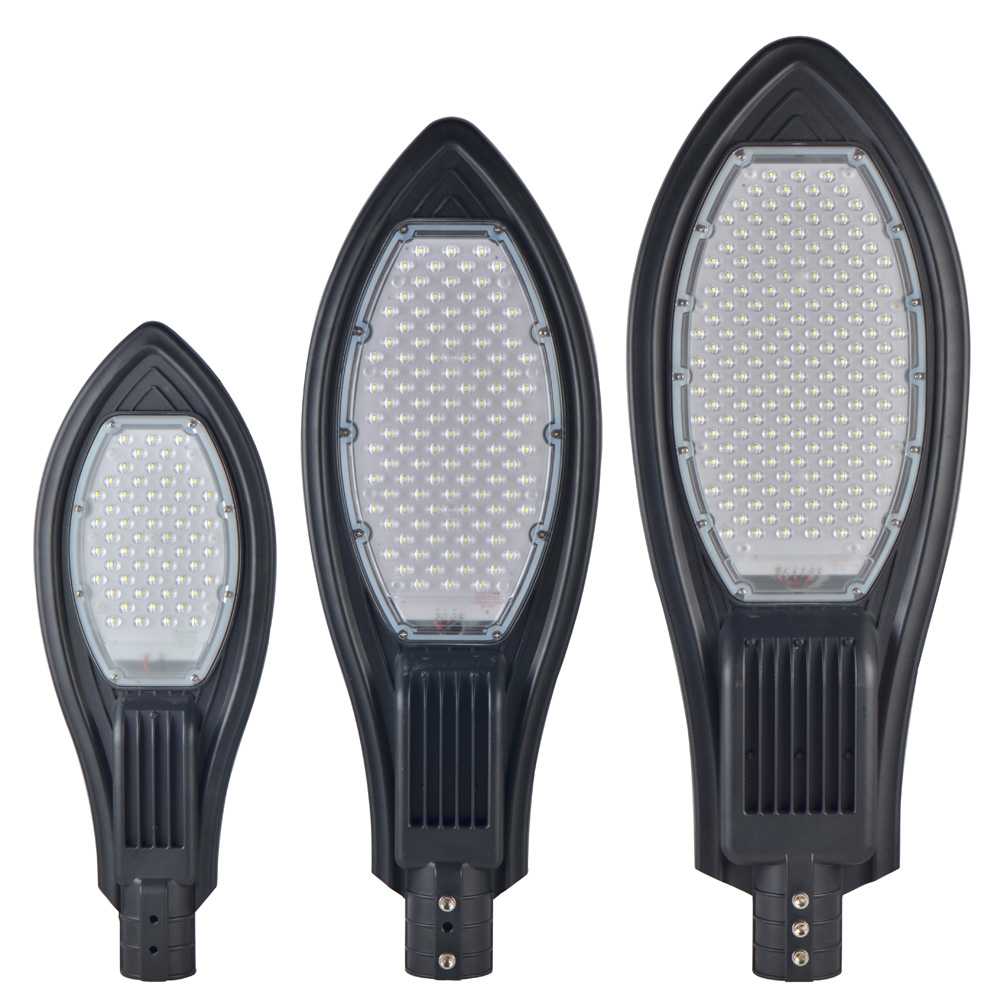

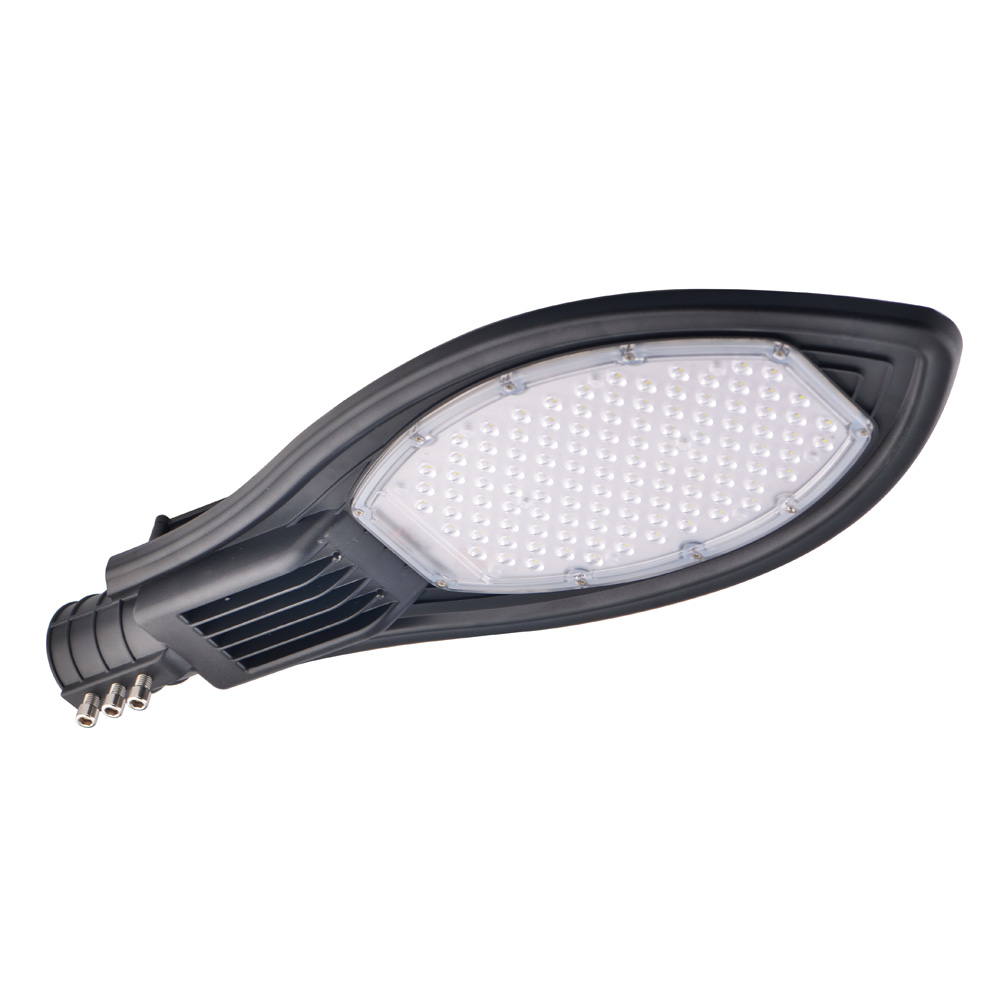

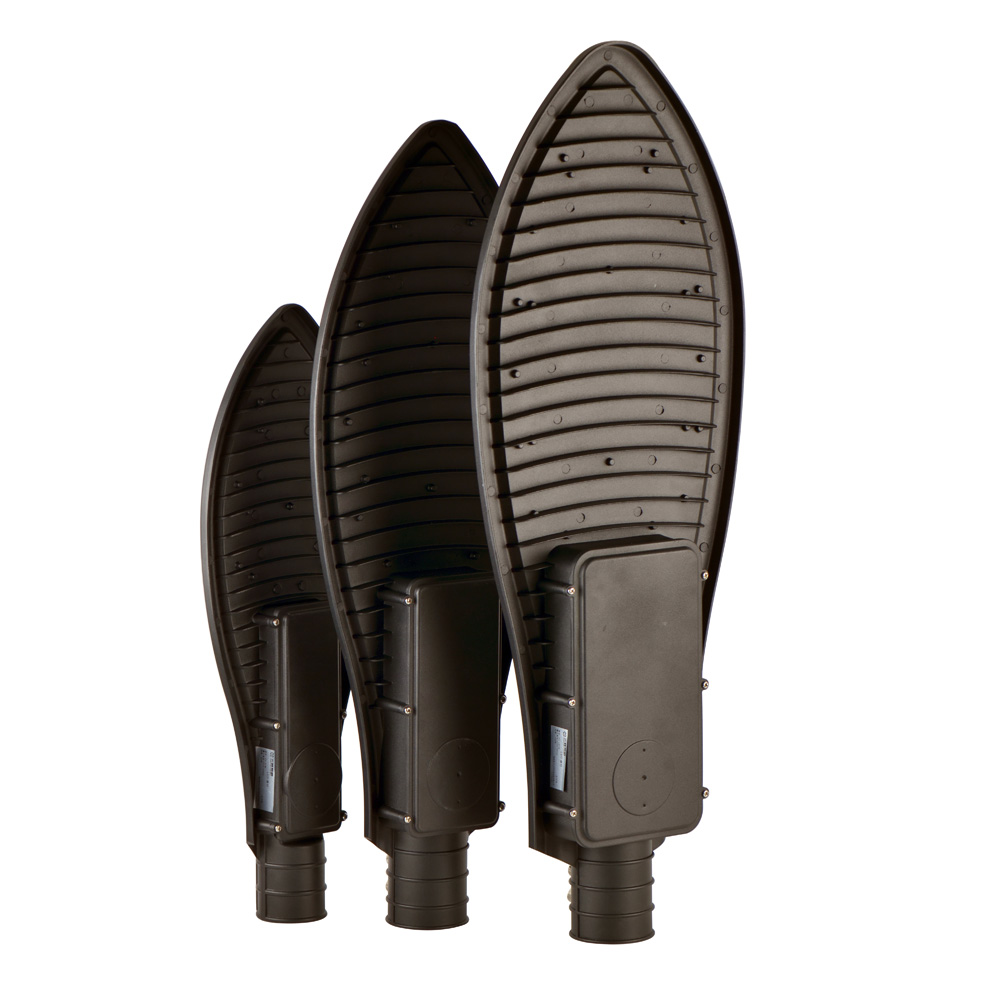

SMD LED Sword Street Lights


Model HZB-LD-F2-100W HZB-LD-F2-150W HZB-LD-F2-150W
Power 50W 100W 150W
Lumens 5000lm±10% 10000lm±10% 15000lm±10%
Size(mm)(LxWxH) 550*200*75 702*245*100 770*280*100
Color Temp 6500K
Operation Temp -40°- 60°C
Life Span 50,000 hours for LED
Driver High efficiency driver
Voltage range AC110-240V
Frequency 50/60Hz
Beam Angle 120 degree
CRI >70
PF ≥0.90
Power Efficiency ≥90%


SMD LED Sword Street Lights100W SMD LED Sword Street Lights100W SMD LED Sword Street Lights100W SMD LED Sword Street Lights
