Product Abstract:

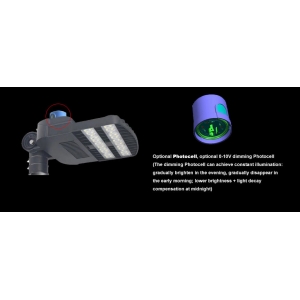

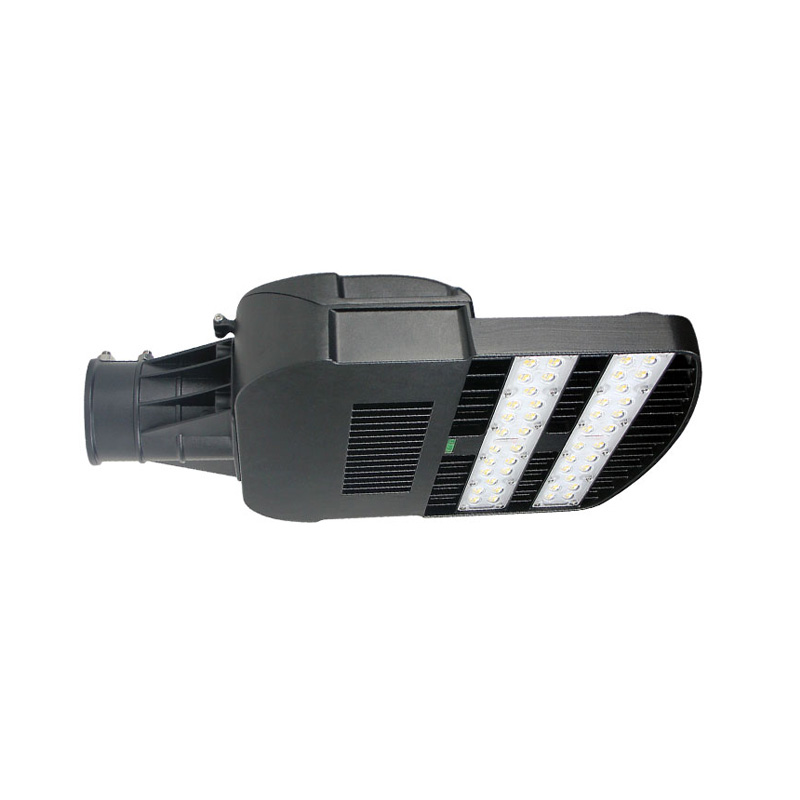

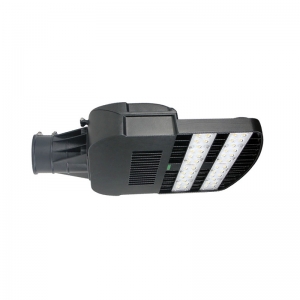

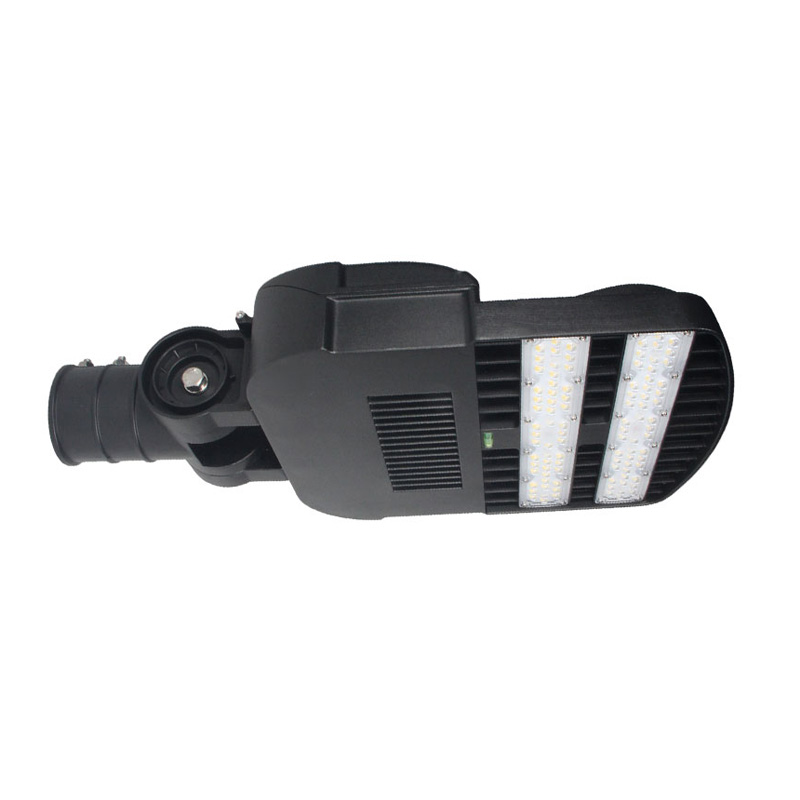

100W LED Street Lighting with Photocell Sensor is 14500Lm, 150LM/W, Lumileds 3030. Choose 100 led street light to replace 250‐300W HPS,MH,HQI lamps.


LED Street Lighting 50-240W Venus Series

100W LED Street Lighting with Photocell Sensor is 14500Lm, 150LM/W, Lumileds 3030. Choose 100 led street light to replace 250‐300W HPS,MH,HQI lamps.

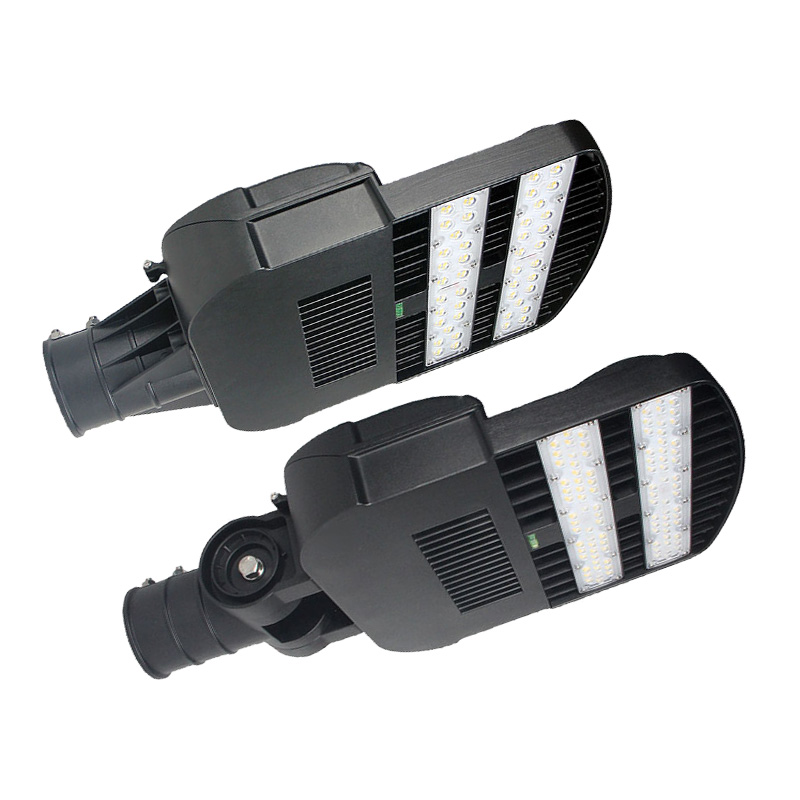

Venus Series LED Street Lighting is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for street lighting, area lighting, highway lighting, parking lot lighting applications. Depending on the area, you can choose 50-240w led street light to replace 125w-750w HPS and MH lamps.

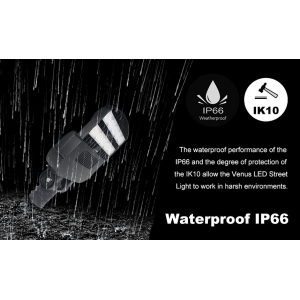

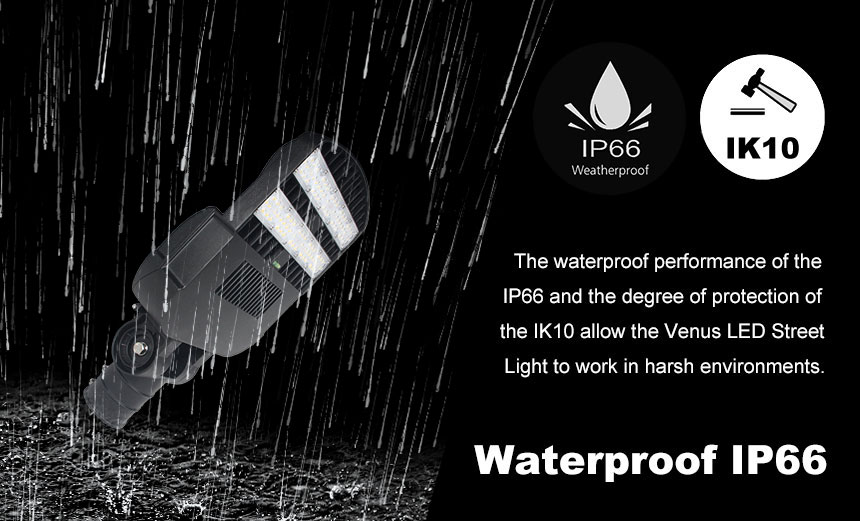

Newly developed LED Street/Area Light has an industry-leading 150LM/W for high efficiency and reliability. With IP66 waterproofing and IK10 protection, LED Street Light can work in harsh environments and deliver outstanding performance.

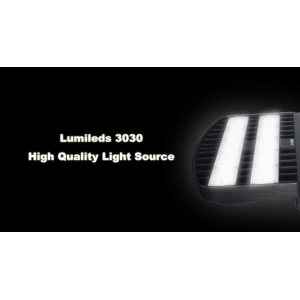

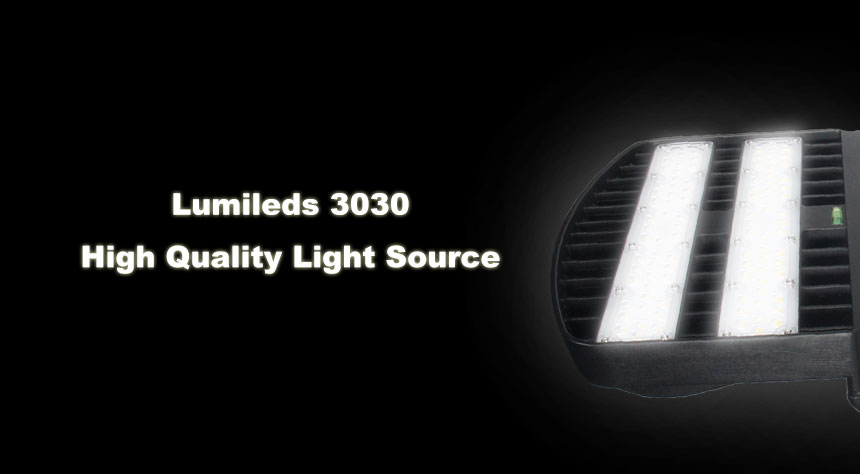

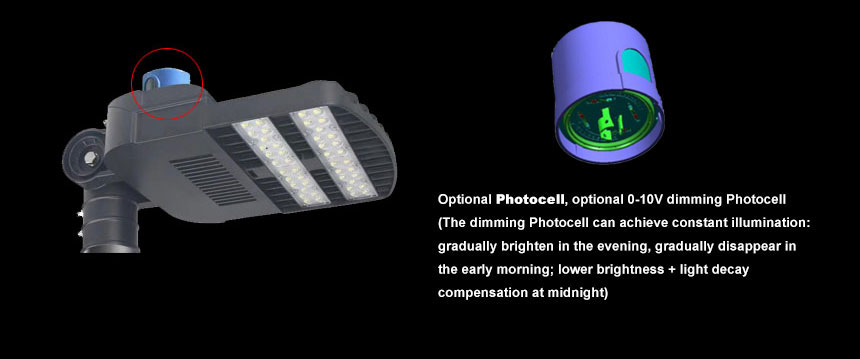

The Venus LED Street/Area uses Philips' high-quality Lumileds 3030 light source and has a professional power supply design that is extremely durable and safe. The configured Photocell can minimize the cost of light for energy saving and environmental protection. Easy to maintain, you can enjoy the best lighting and safety.



FEATURES:
• Basic, Compact design & High performance design
• Aluminum (ADC12) die-casting molding;
• The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;
• High-quality components,Complete illumination across the entire roadway
• Wide choice of optics for increased application efficiency
• Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008);
• Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995);
• Dramatic energy savings, Safe for industrial applications
• Comply with ROHS standard;
• Waterproof integrated shell, waterproof grade up to IP67;
• Products through a number of certification, ETL CE CB SAA ENEC IP66 IK10 salt spray test;



Product Specifications:

Item  No. HZB-LD-V-50W/60W HZB-LD-V-80W/100W/120W HZB-LD-V-120W/150W HZB-LD-V-180W/200W HZB-LD-V-240W
Efficency(lm/w) 150lm / 145lm 150lm / 150lm / 145lm 150lm / 150lm 150lm / 150lm 150lm
Wattage 50W / 60W 80W / 100W /120W 120W / 150W 180W / 200W 240W
Luminous Flux 7500Lm / 8700Lm 12000Lm / 14500Lm / 16800Lm 18000Lm  /  21750Lm 27000Lm / 29000Lm 36000Lm
Input Volt 100‐240VAC 100‐240VAC 100‐240VAC 100‐240VAC 100‐240VAC
Power Factor >0.95 >0.95 >0.95 >0.95 >0.95

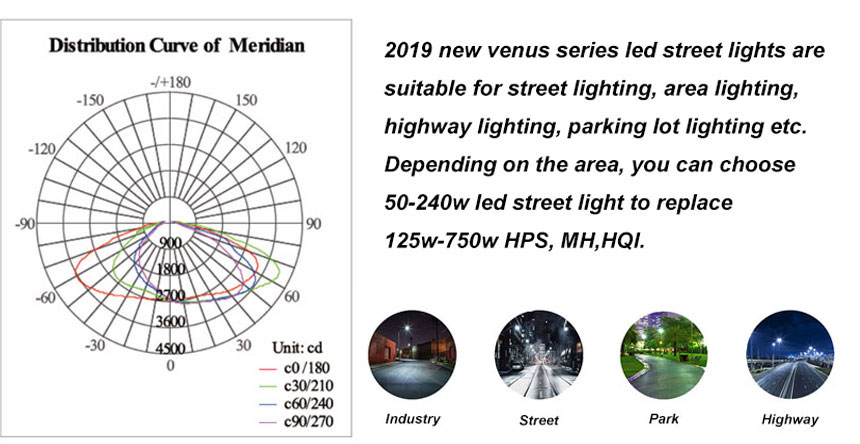

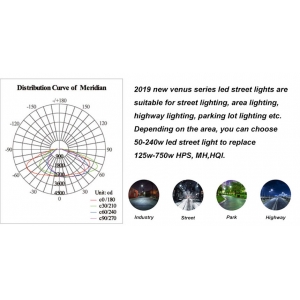

Beam Angle 80*155° 80*155° 80*155° 80*155° 80*155°
Chip Brand Lumileds 3030 Lumileds 3030 Lumileds 3030 Lumileds 3030 Lumileds 3030
Replacement (HPS,MH,HQI) 125‐150W 150‐400W 400‐450W 450‐600W 600‐750W
CRI >80
Color Temperature 3000K / 4000K / 5000K / 5700K
SPD 10KV
Material composition(body) ADC-12 Aluminium Alloy (<0.1% copper conten)
Lifespan > 50,000 hours
IP Rating IP66

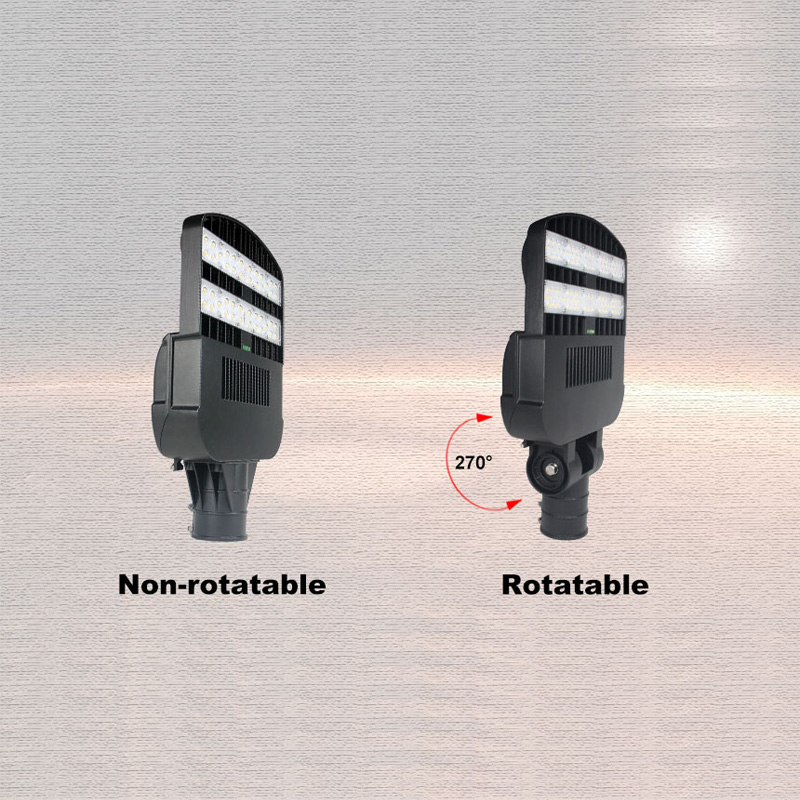

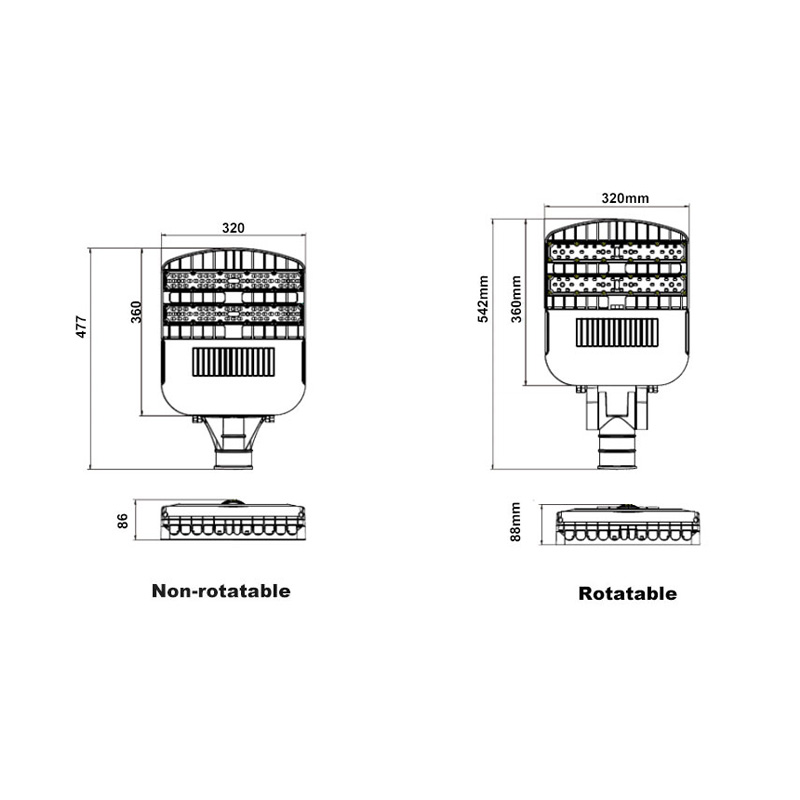

Size(mm) 406*320*86mm
(Non‐rotatable)
417*320*88mm
(Rotatable)
417*320*86mm
(Non‐rotatable)
540*320*88mm
(Rotatable)
548*320*86mm
(Non‐rotatable)
613*320*86mm
(Rotatable)
619*320*86mm
(Non‐rotatable)
684*320*88mm
(Rotatable)
690*320*86mm
(Non‐rotatable)
755*320*88mm
(Rotatable)
Weigh(kg) 5.60 6.30 6.90 7.70 8.40
