Overview:

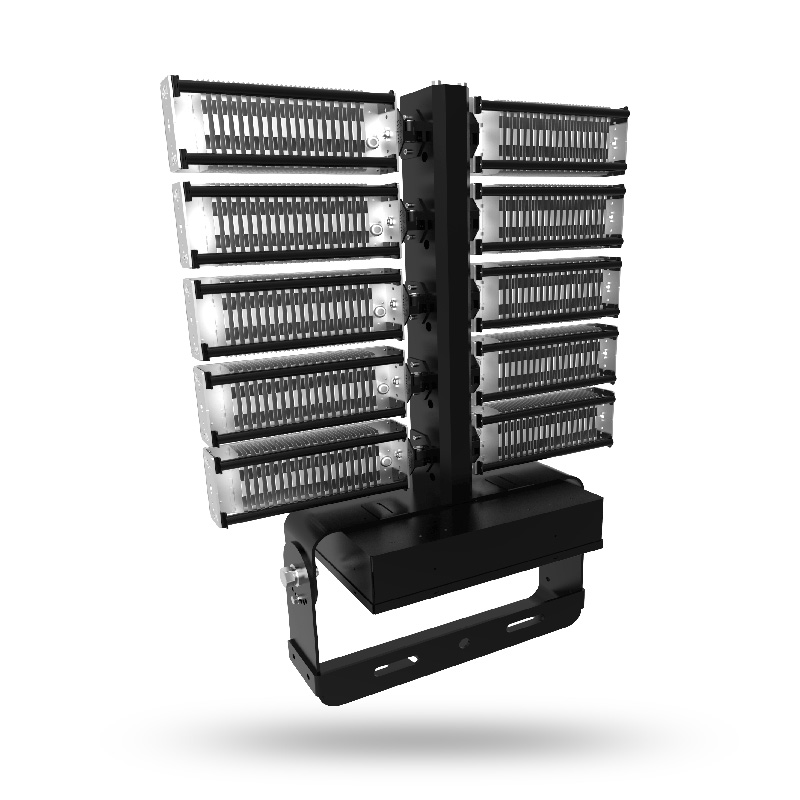

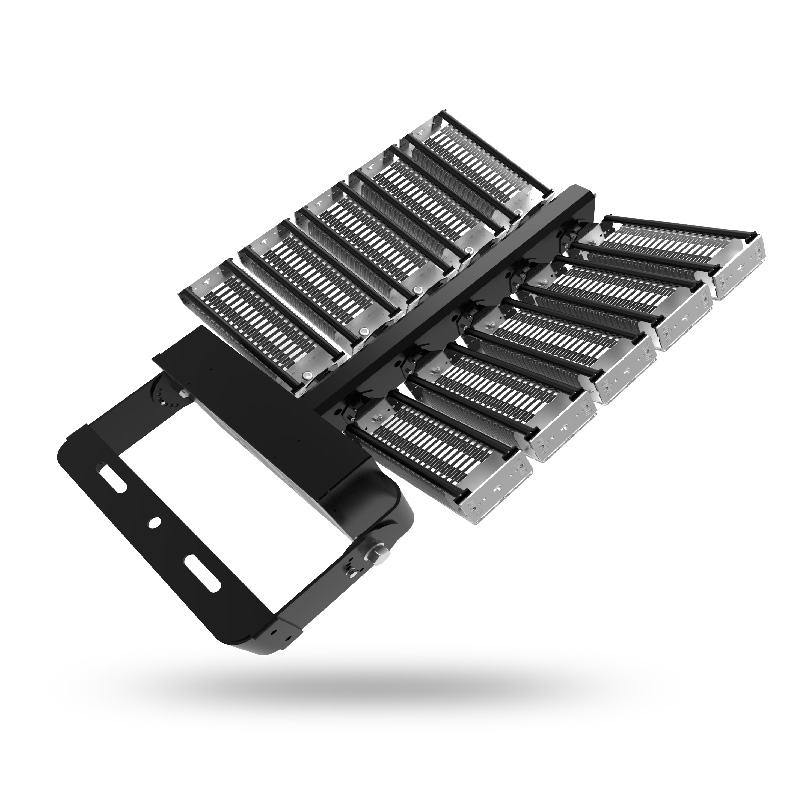

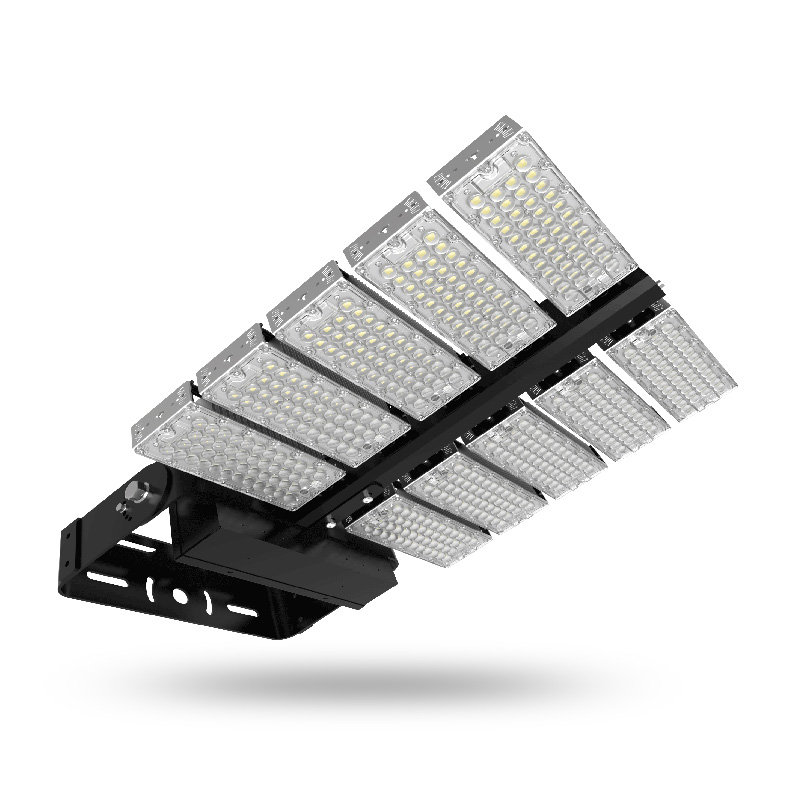

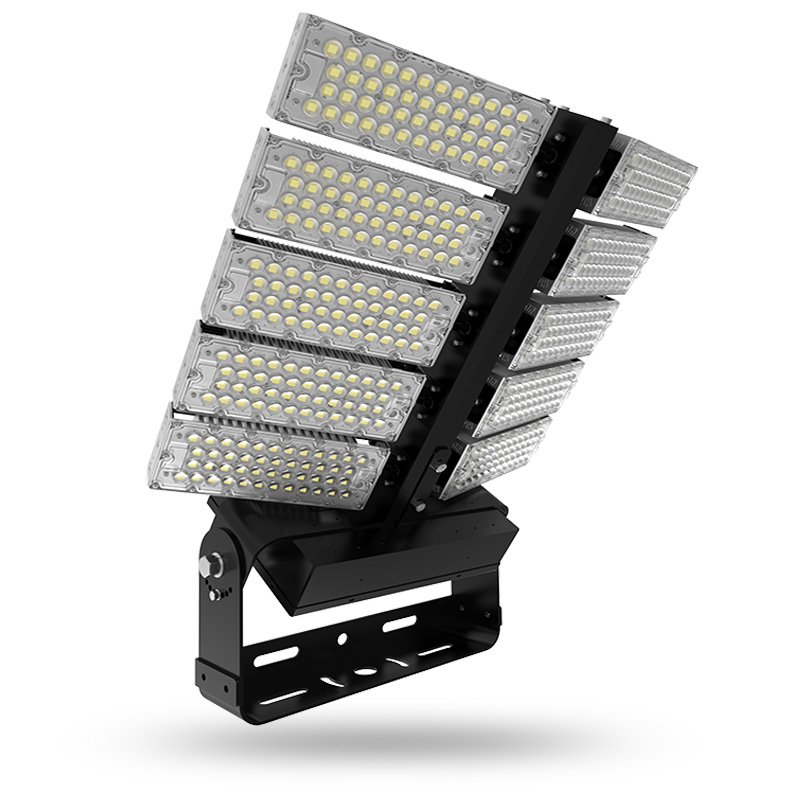

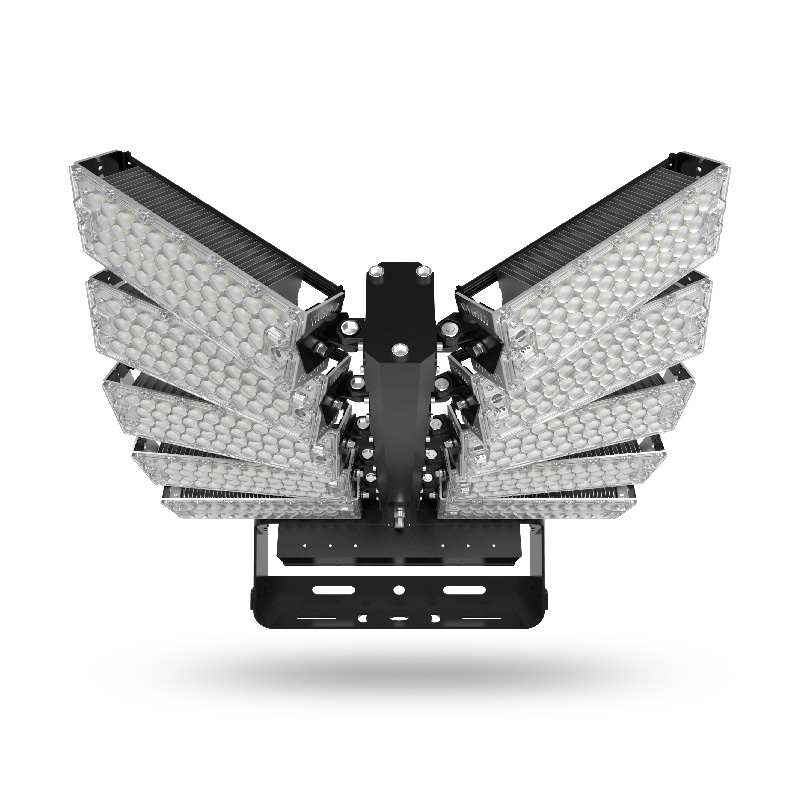

1000-Watt LED High Mast Floodlighting,Sentry Multidirectional,High Power 160lm/w Philips Lumileds,160,000 Lumens,Sports Floodlighting,Large Area Lighting: Ports, Airports,Car parks,High Mast Lighting, Outdoor Rated for High Mast Pole and Sports Stadium with DLC ETL IP65.



Multidirectional LED High Mast Floodlighting Fixtures Designed specifically for large area and sports applications, Sports and area floodlights and LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.



Our range of High Mast Floodlights sets the standard in quality optics. LED High Mast Lighting fixtures differ greatly from the typical street or roadway lights. From sports to area lighting our systems, including the high masts needed, project the light exactly where it should be going.



Our High Mast Lights is Aluminum housing, DLC Premium Listed; Up to 223,200 lumens; Applications; High-Mast Lighting, Yard Lighting, Area & Storage Lighting; replaces existing up to 3,000Watt Metal Halide and HPS; High Power LED modular Floodlight with 600W/720W/800W/960W/1000W/1200W/1440W available. It is humanized design in details: (1) Easy Assembly and Quick Connection between Parts; (2) Angle Adjustability for LED Modules.



LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. ETL Listed and DLC qualified for rebates. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.

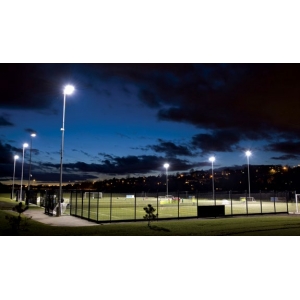

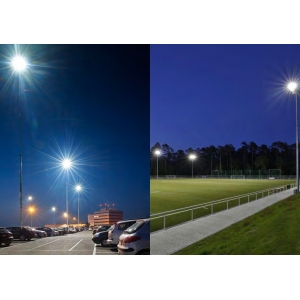

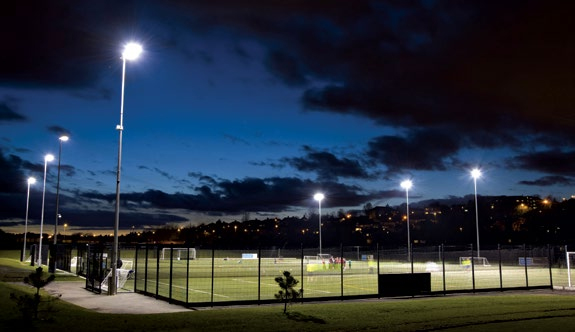

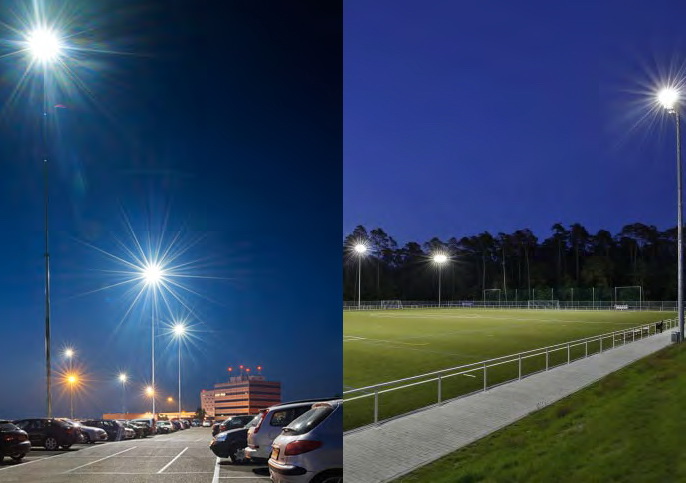

The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.



Product Features & Benefits:
• IP65 rated LED floodlighting

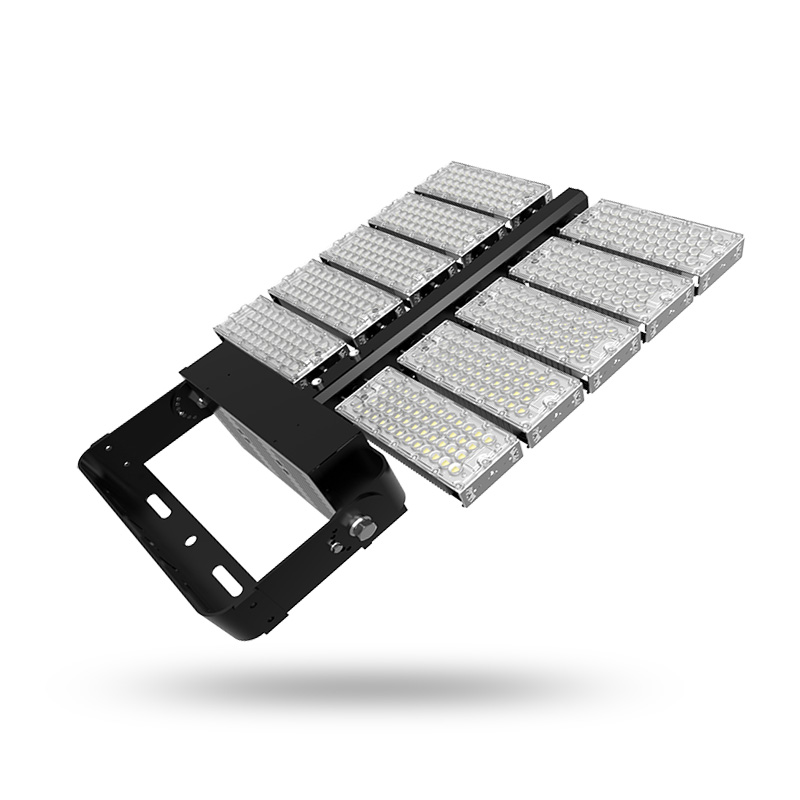

• Moudle design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.

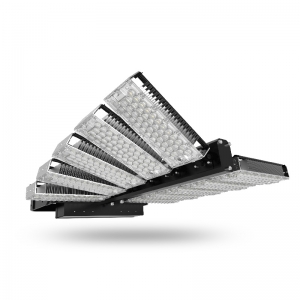

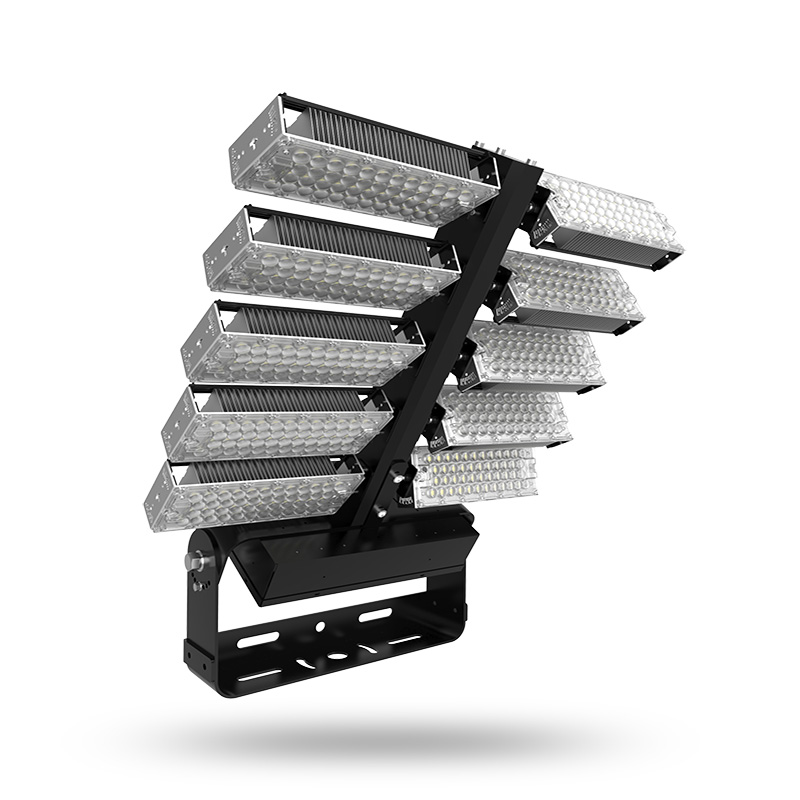

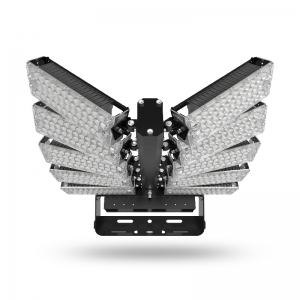

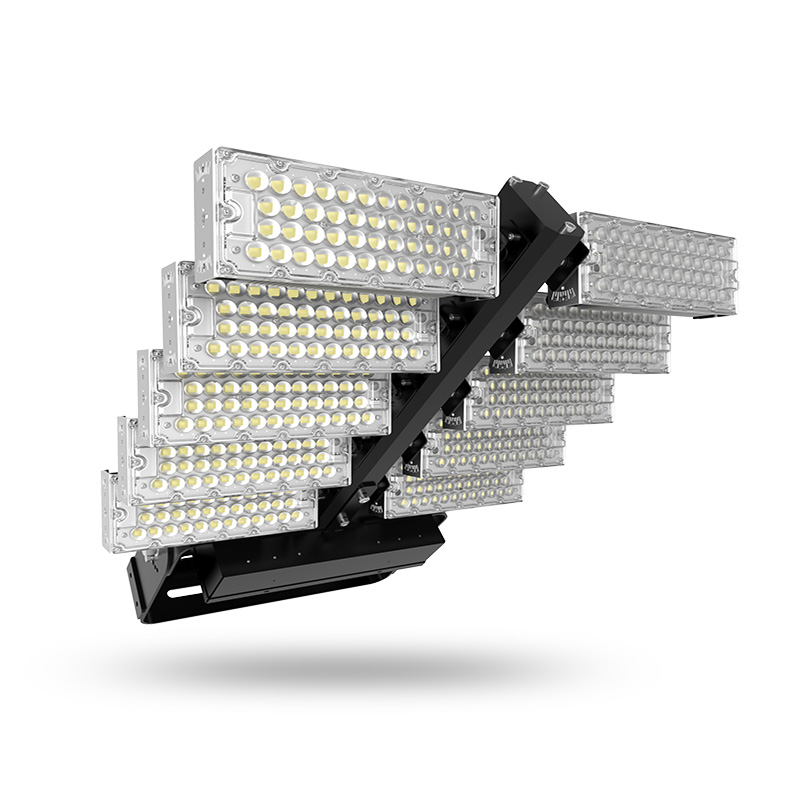

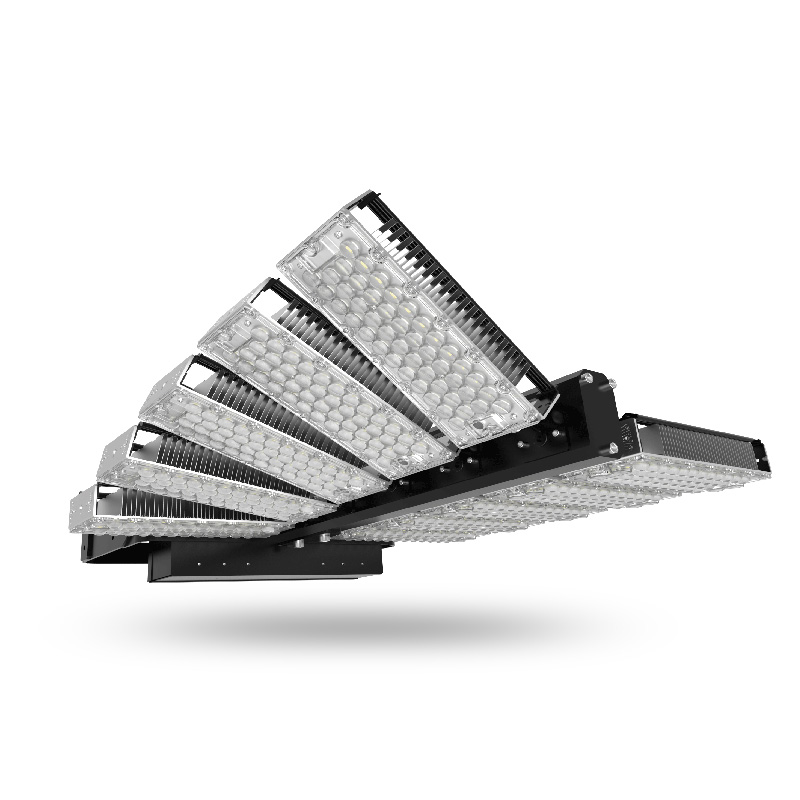

• Rotatable modules offering maximum customisation
• Heavy duty stirrup mounting bracket
• Multiple optics available
• Can be installed as a floodlight or high bay,80% Energy Savings Compared to Metal Halide Lights and/or HPS.
• With illumination equivalent to 1200 watt and 1500W metal halide fixtures,you will enjoy an "instant-on, flicker-free" cold start, and industry-leading High brigtness LED chip,Luminous flux up to 155-160Lm/W.
• Protractor scale for easier aiming
• 50,000-hour operating life means years of maintenancefree operation.

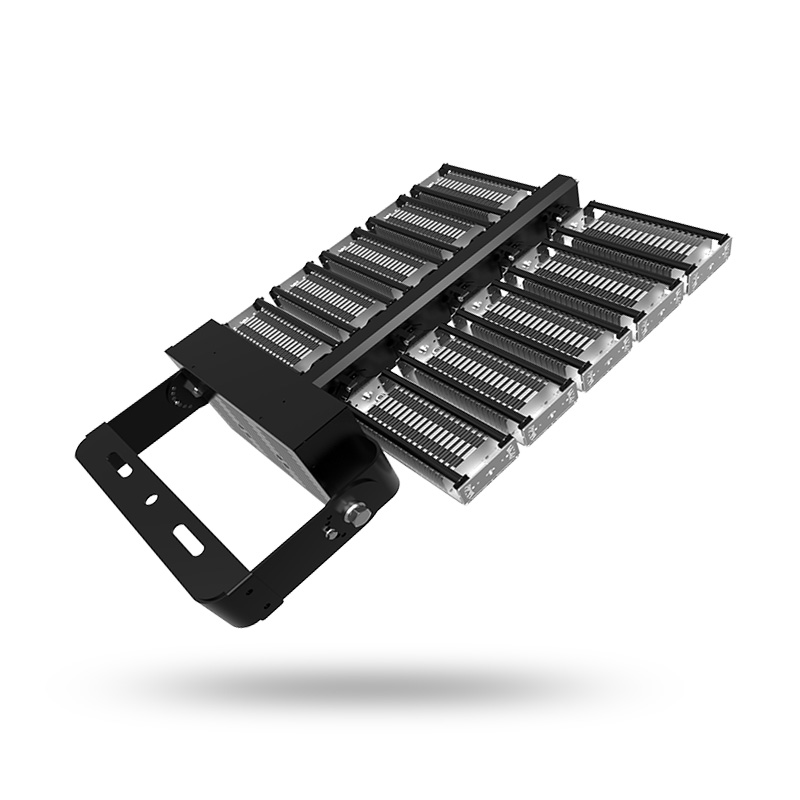

• Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
• Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.





Waterproof IP65:
1.Anti-dust design,able to be with flushable cleaning
2.IP65 (TUV report available)
3.Can't be immersed into the water

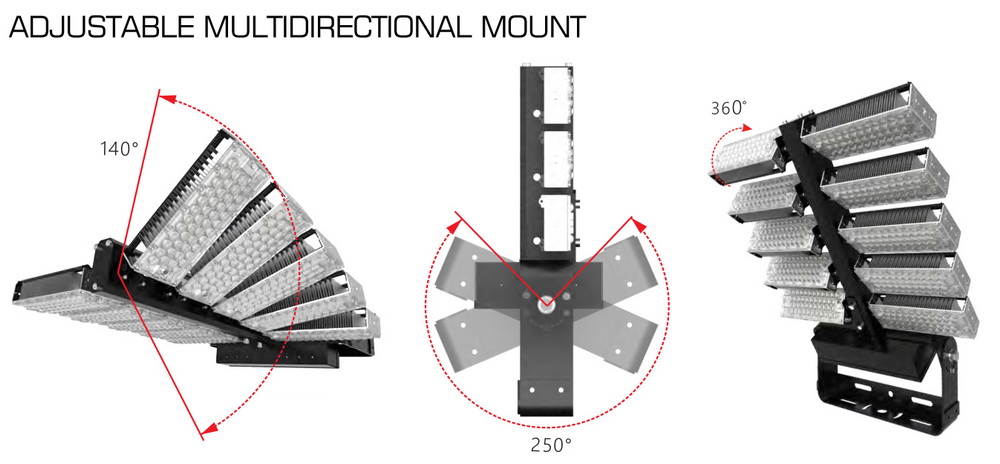

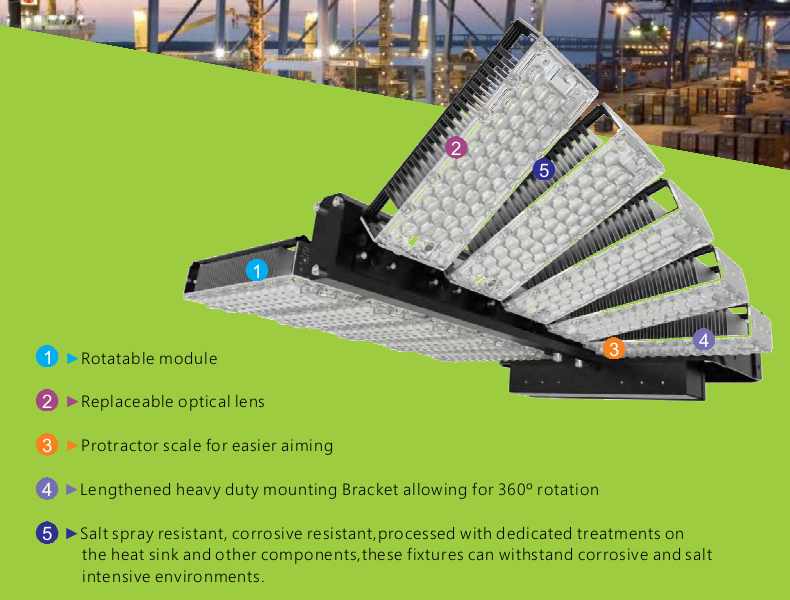

Adjustable:
1.Rotatable module
2.Replaceable optical lens
3.Protractor scale for easier aiming
4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.



Specifications:

Model	HZB-HM-M1-600W	HZB-HM-M1-720W	HZB-HM-M1-800W	HZB-HM-M1-960W
Power	600W	720W	800W	960W
Lumens	96,000Lm	118,600Lm	128,000Lm	148,800Lm
Efficency	160LM/W±3%	155LM/W±3%	160LM/W±3%	155LM/W±3%

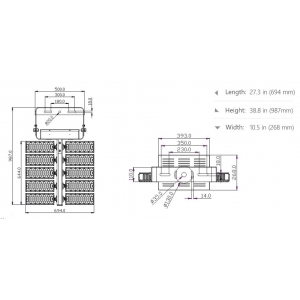

Dimension:	475*650*132mm 18.70*25.59*5.19inch	475*650*132mm 18.70*25.59*5.19inch	597*650*132mm 23.50*25.59*5.19inch	597*650*132mm 23.50*25.59*5.19inch
Light Source	Lumileds 5050	Lumileds 5050	Lumileds 5050	Lumileds 5050
Replacement	1200W HID / Metal Halide	1500W HID / Metal Halide	1750W HID / Metal Halide	2000W HID / Metal Halide
Color Temp	3000K/4000K/5000K/5700K
Driver Power:	Meanwell 3xELG-240-48A / Sosen 3*SS-240V-54	Meanwell 3xELG-240-48A / Sosen 3*SS-240V-54	Meanwell 4xELG-240-48A / Sosen 4*SS-240V-54	Meanwell 4xELG-240-48A / Sosen 4*SS-240V-54
Lifetime	50,000+ hours
Input Voltage	100-277VAC,50/60Hz
Power Factor	PF>0.95
Net weight
Net weight	23.0kg	23.0kg	27.0kg	27.0kg
Beam Angle	20° / 40° / 60° / 90° 140*100°/milky PC 120° (Module rotatable up & down 360°)
IP Rating	IP65 (TUV report available)
Housing	Marine grade aluminum
Certification	ETL cETL DLC Lm79 Lm80 ISTMT Salt Spray test
Warranty	3-5 Years factory warranty



Model	HZB-HM-M1-1000W	HZB-HM-M1-1200W	HZB-HM-M1-1440W
Power	1000W	1200W	1440W
Lumens	160,000Lm	186,000Lm	223,200Lm
Efficency	160LM/W±3%	155LM/W±3%	155LM/W±3%

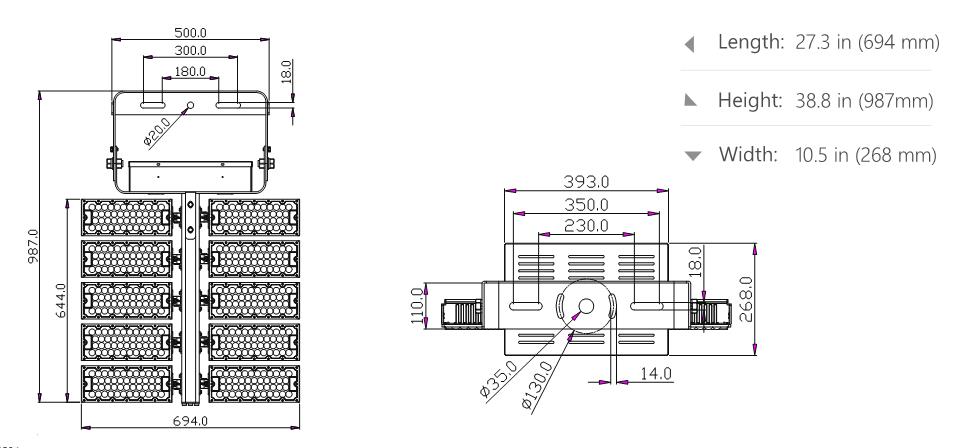

Dimension:	729*650*132mm 28.70*25.59*5.19inch	729*650*132mm 28.70*25.59*5.19inch	860*650*132mm 33.85*25.59*5.19inch
Light Source	Lumileds 5050	Lumileds 5050	Lumileds 5050
Replacement	2200W HID / Metal Halide	2500W HID / Metal Halide	3000W HID / Metal Halide
Color Temp	3000K/4000K/5000K/5700K
Driver Power:	Meanwell 5xELG-240-48A / Sosen 5*SS-240V-54	Meanwell 5xELG-240-48A / Sosen 5*SS-240V-54	Meanwell 6xELG-240-48A / Sosen 6*SS-240V-54
Lifetime	50,000+ hours
Input Voltage	100-277VAC,50/60Hz
Power Factor	PF>0.95
Net weight
Net weight	31.5kg	31.5kg	37.0kg
Beam Angle	20° / 40° / 60° / 90° 140*100°/milky PC 120° (Module rotatable up & down 360°)
IP Rating	IP65 (TUV report available)
Housing	Marine grade aluminum
Certification	ETL cETL DLC Lm79 Lm80 ISTMT Salt Spray test
Warranty	3-5 Years factory warranty



Applications:
