Product Abstract:

This UFO LED High Bay Lights C3 Type are Streamline design appearance and high quality high Luminous Efficacy 125lm - 150lm/w from 60W 100W 160W 200W to 240W, 60 Watt UFO LED High Bay Light, 130lm/w smd OSRAM LED chip, 13,000 Lumens, Lifetime 50,000+ hours,250-300W HID/HPS Equivalent,Microwave Motion,daylight sensor available, Meanwell Driver, DLC Listed,5 Years Warranty.

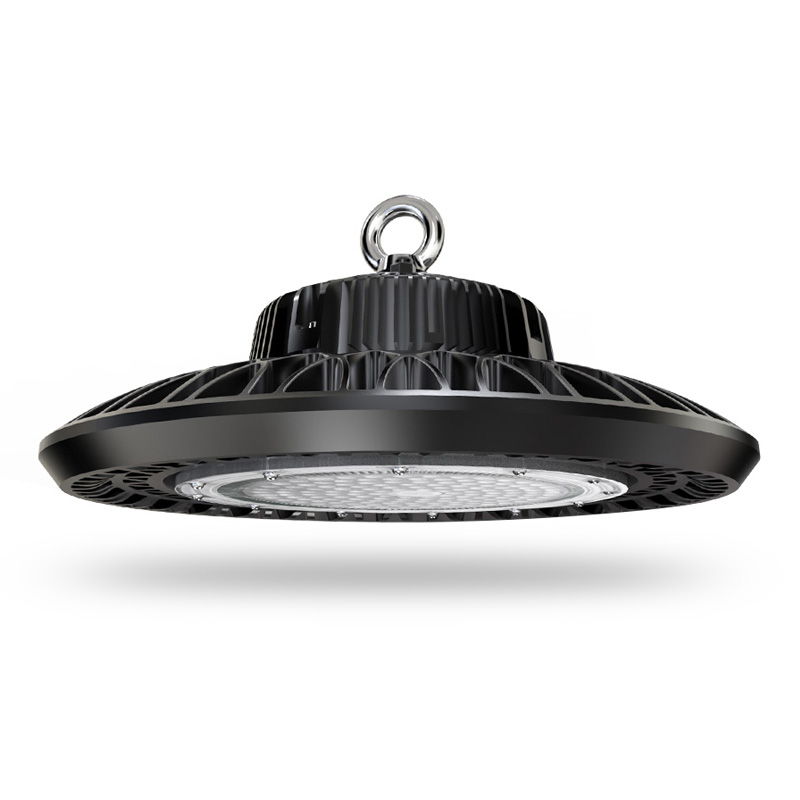

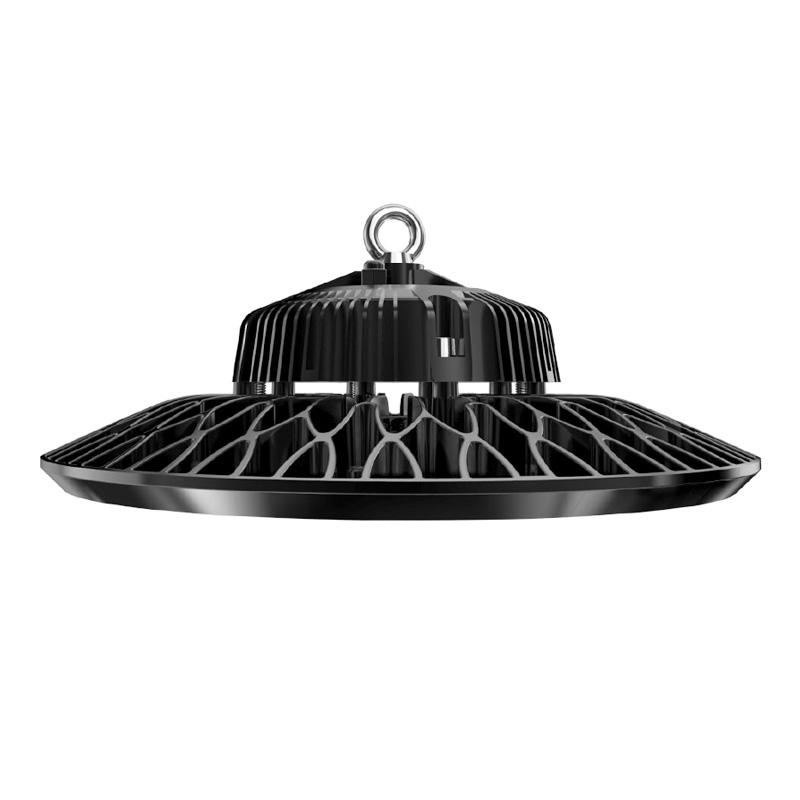

LED UFO High Bay Lighting C3 SeriesLED UFO High Bay Lighting C3 Series

Overview:

This UFO LED High Bay Lights C3 Type are Streamline design appearance and high quality high Luminous Efficacy 125lm - 150lm/w from 60W 100W 160W 200W to 240W, 60 Watt UFO LED High Bay Light, 130lm/w smd OSRAM LED chip, 13,000 Lumens, Lifetime 50,000+ hours,250-300W HID/HPS Equivalent,Microwave Motion,daylight sensor available, Meanwell Driver, DLC Listed,5 Years Warranty.

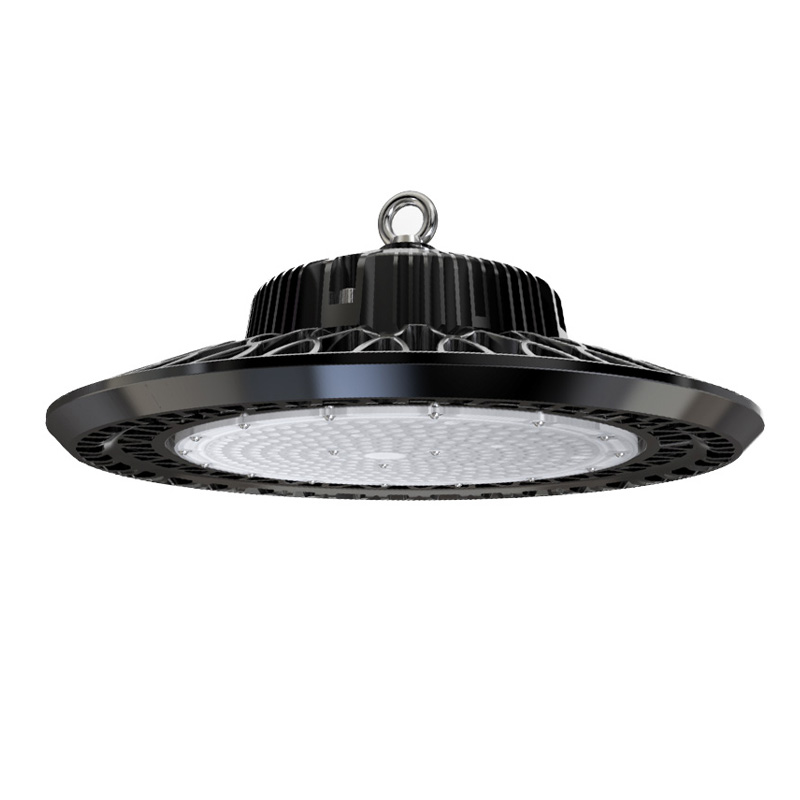

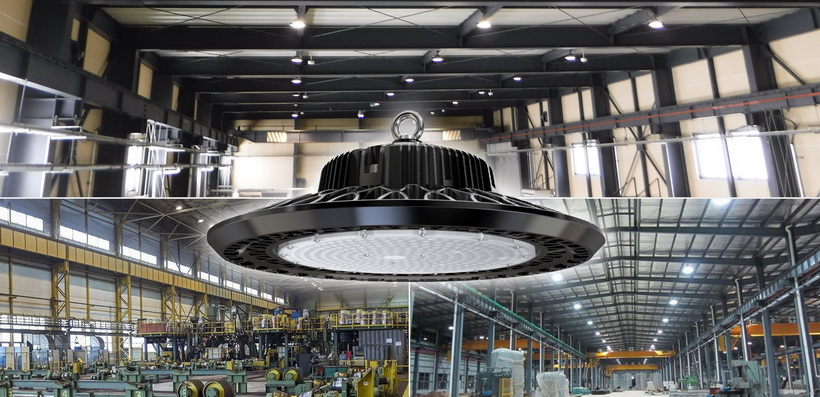

UFO LED High Bay Lights C3 Type
60W 100W 160W 200W 240W
DLC Premium CE RoHS Lm79 listed
With most suitable beam angle 45° 60° 90° and 120°
Original Osram SMD LED Chip which up to 130Lm/W to 160Lm/W

Streamline design appearance, super thin/easy installation, less weight to save your shipping cost, extremly high brightness, final finished product's luminous can reach 125~150lm/w.

Features:
• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac
• Protections: Short circuit / Over current / Over temperature.

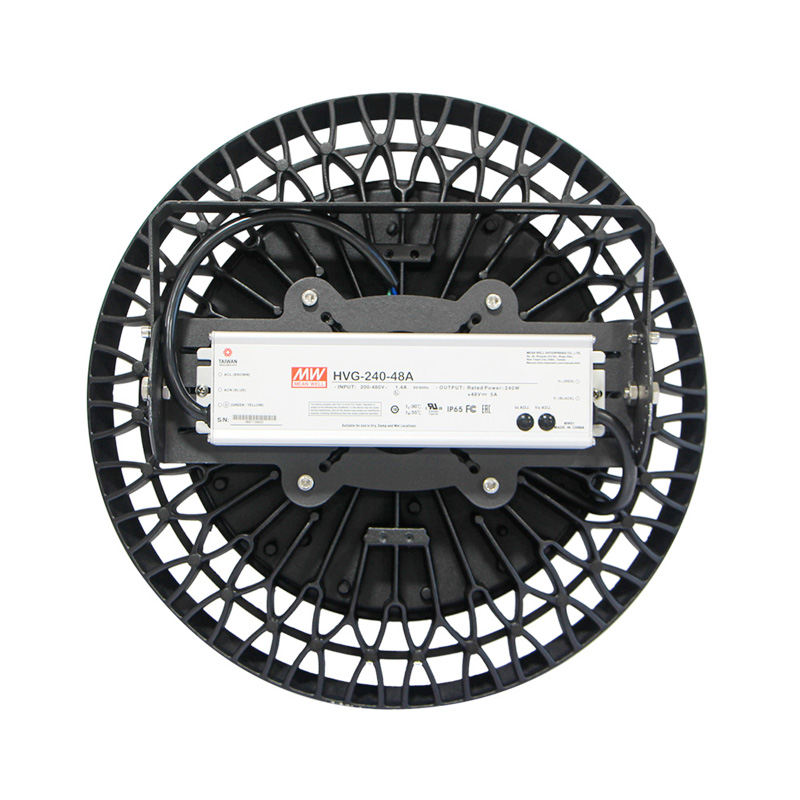

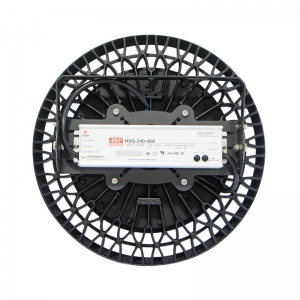

• Meanwell driver and Osram led chip.
• 45 / 60 / 90 /120 degree option.
• Clear or diffused cover.

Advantages:
1.Lighting- Cool White /Warm White
2.High quality Lamp Housing for better environmental protection
3.Efficiency of driver 85%
4.Energy saving
5.Junction temperature Less then 65°C
6.LED industrial light applications in buildings, factory, warehouse, large
7.supermarket, sculpture, stadiums, squares, docks etc
8.Housing/Trim material: Aluminum Die cast
9.Instant Lighting on with no flickering
10.Health protection: no UV/IR, more comfortable for vision

Applications:
Perfect for Industrial Usage, Warehouse & Supermarkets, Workshop's, Factories, Warehouses, Highway, Тoll Stations, Gas Stations, Malls, Exhibition Halls, Stadium's & other vast areas

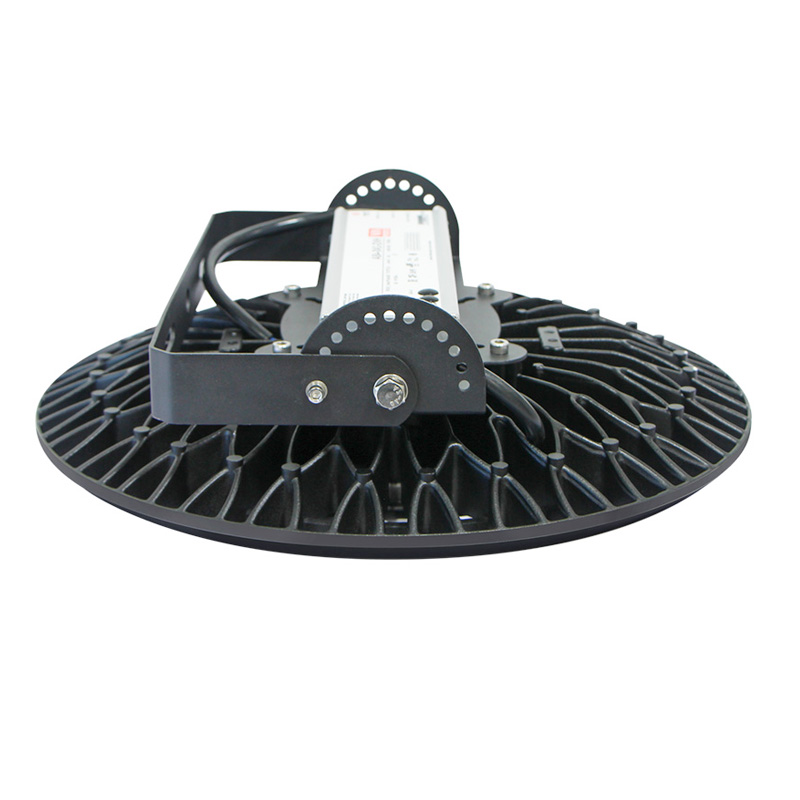

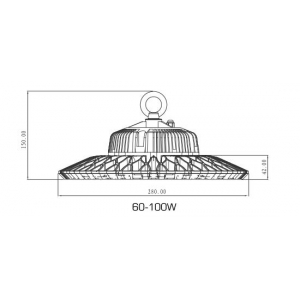

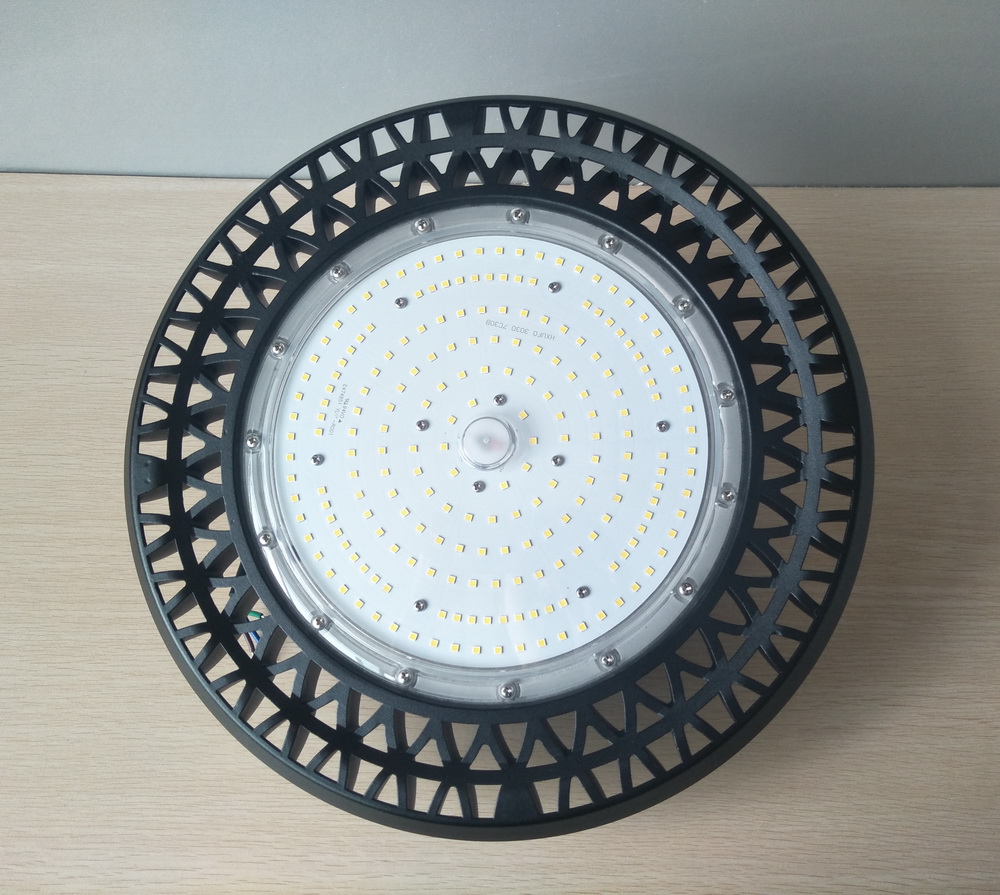

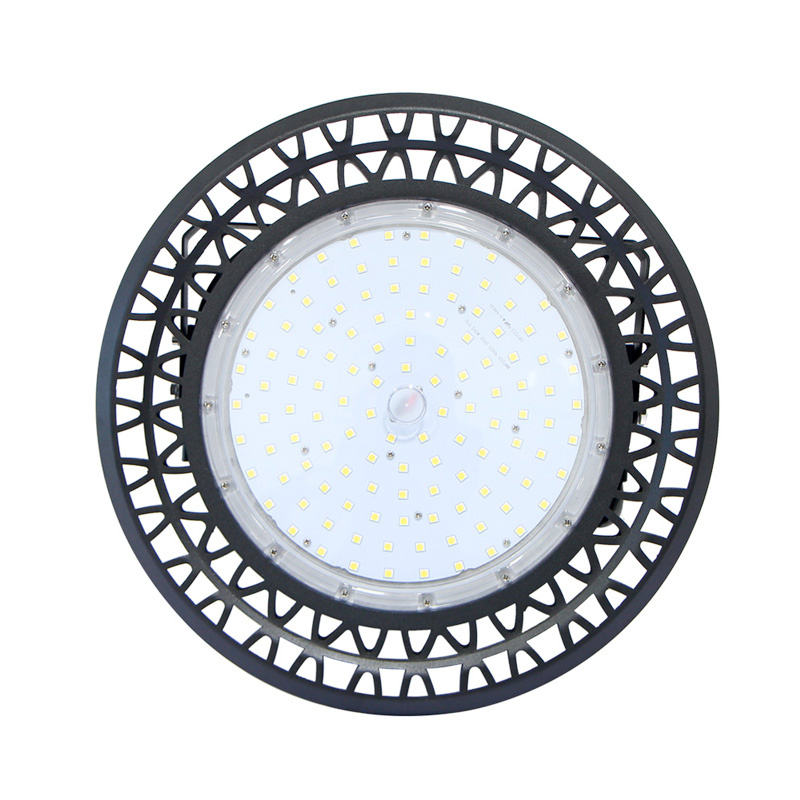

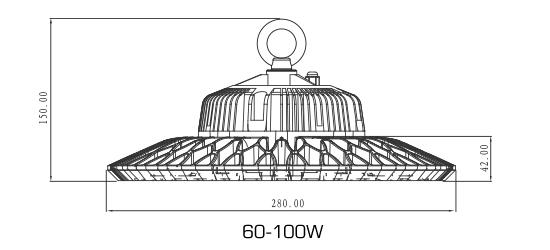

100 watt ufo led high bay light100 watt ufo led high bay light100w ufo led high bay lighting dimension

Model HZB-UFO-60W-C3 HZB-UFO-100W-C3 HZB-UFO-160W-C3 HZB-UFO-200W-C3 HZB-UFO-240W-C3
Power 60W 100W 160W

200W

240W

Lumens (130lm/w) 7,800lm 13,000lm 20,500lm 26,000lm 31,000lm
Diameter*Height Dia 235mm
(9.25in)
Dia 280mm
(11.02in)
Dia 340mm
(13.38in)
Dia 400mm
(15.74in)
Dia 400mm
(15.74in)
Light Source OSRAM OSRAM OSRAM OSRAM OSRAM
Replacement 150-250W HID / Metal Halide 250-350W HID / Metal Halide 350-450W HID / Metal Halide 450-600W HID / Metal Halide 600-750W HID / Metal Halide
Color Temp 3000K/4000K/5000K/5700K/6500K
Operation Temp -40°- 50°C
Lifetime 50,000+ hours
Input Voltage 100-277VAC,50/60Hz
Power Factor PF>0.95
Dimming Options Non-dimmable/dimmable
Beam Angle 45° / 60° / 90° / 120° Degree or Clear / Diffused Cover
IP Rating IP65 (TUV report available)
Certification DLC CE RoHS LM79 listed
Warranty 5 years factory warranty

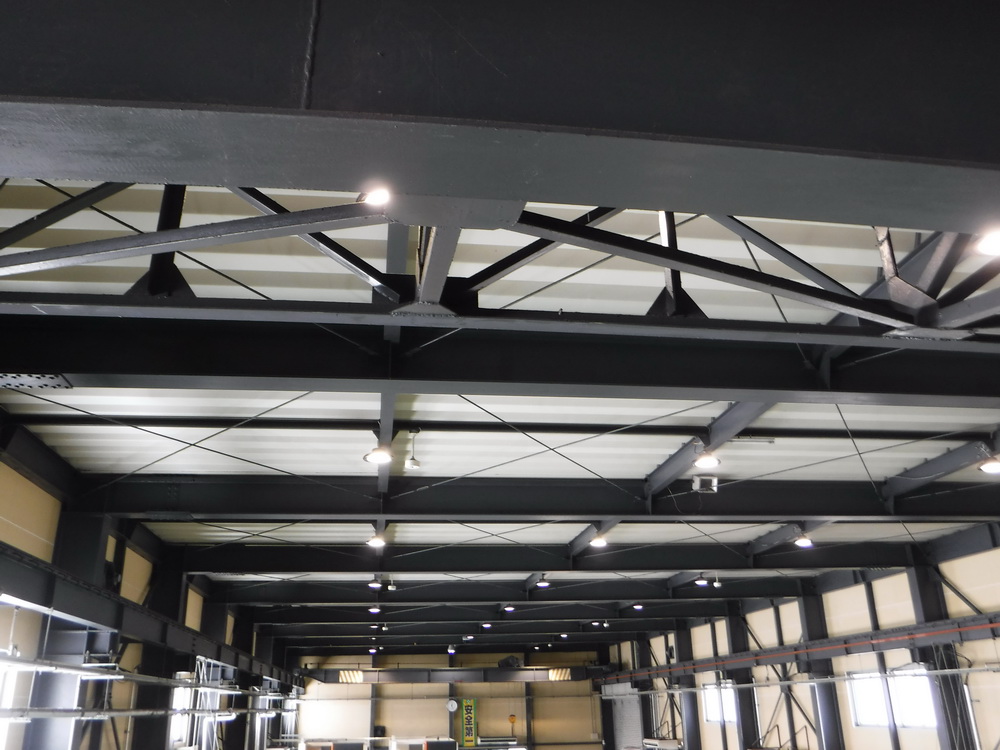

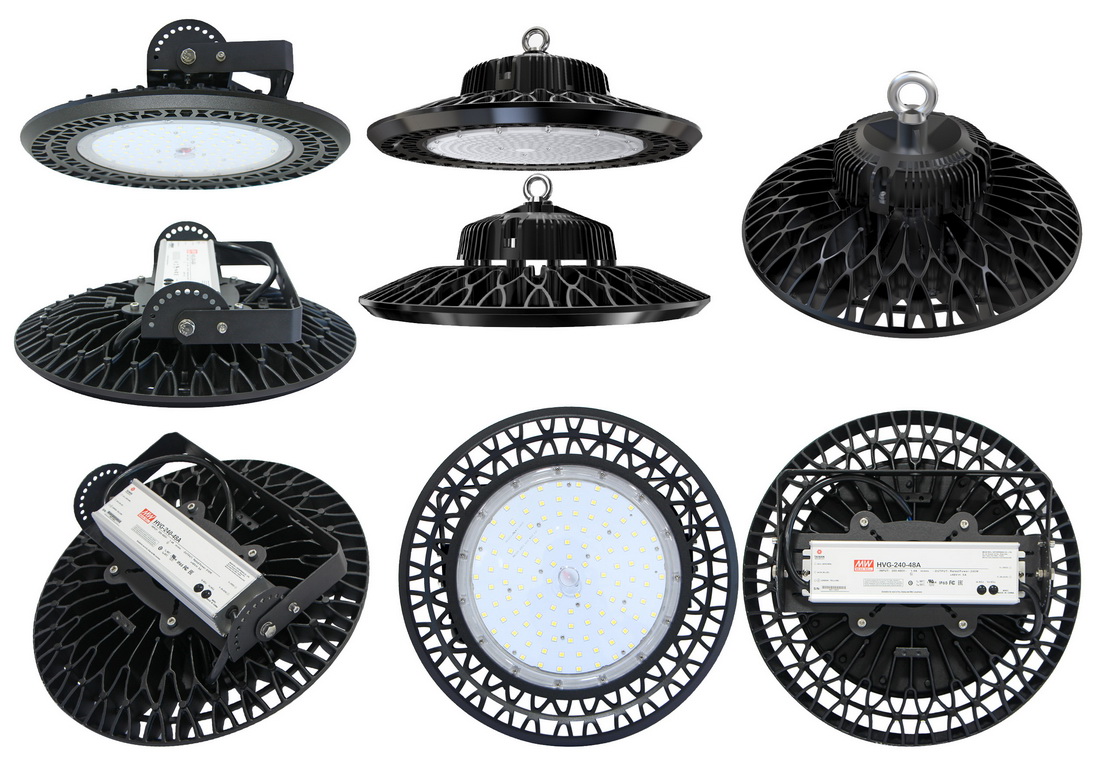

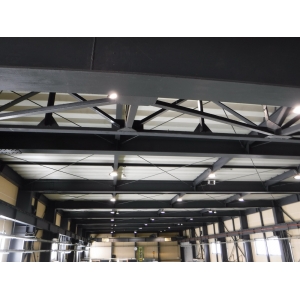

UFO LED High Bay Light Application
